Accessory AC And DC Power Control Module Replacement

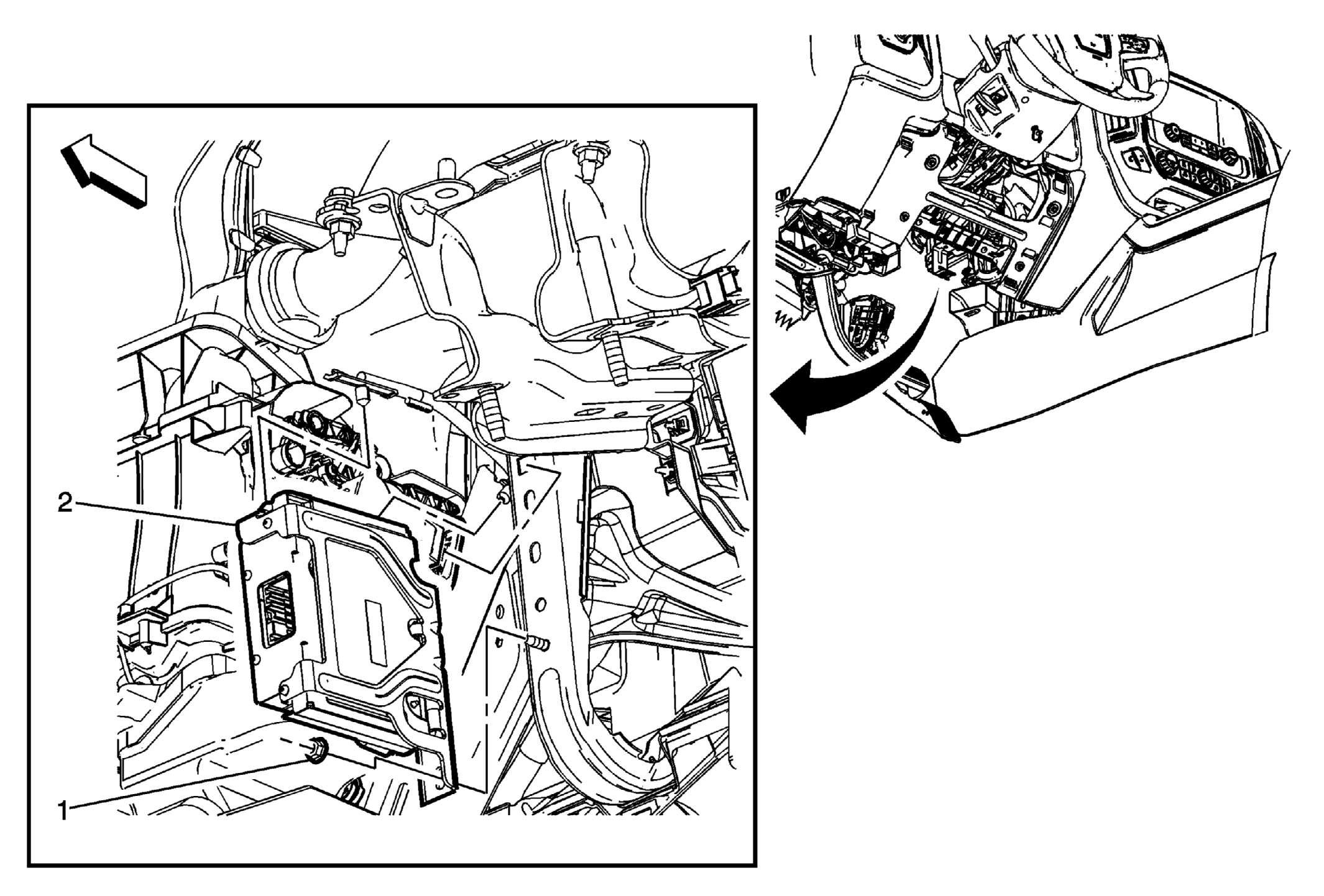

Fig 1: Accessory AC and DC Power Control Module
GM3270011Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac) .
  2. Remove the front floor air outlet duct - left. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Utilities)Floor Front Air Outlet Duct Replacement - Left Side (Z75) .
1 Accessory AC and DC Power Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Accessory AC and DC Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. For programming and set up, refer to Control Module References .
