Installation Procedure

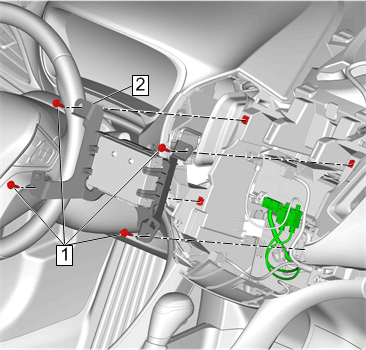

  1. GM4779532

    Human Machine Interface Control Module Bypass Module Bracket(2) - Install

    2. CAUTION:

    Fastener Caution

  2. Human Machine Interface Control Module Bypass Module Bracket Bolt(1) - Install and tighten[4x]2.5N.m (22 lb in)
  3. Connect the electrical connectors.
  4. GM4779514

    Connect the electrical connectors.

  5. Instrument Panel Center Air Outlet (1) - Install
  6. GM4084553

    Heater and Air Conditioning User Interface Control(2) - Install - Heater and Air Conditioning User Interface Control Replacement

  7. GM4074964

    Instrument Panel Extension(1) - Install - Instrument Panel Extension Replacement
