Transmission Components
Transmission Components

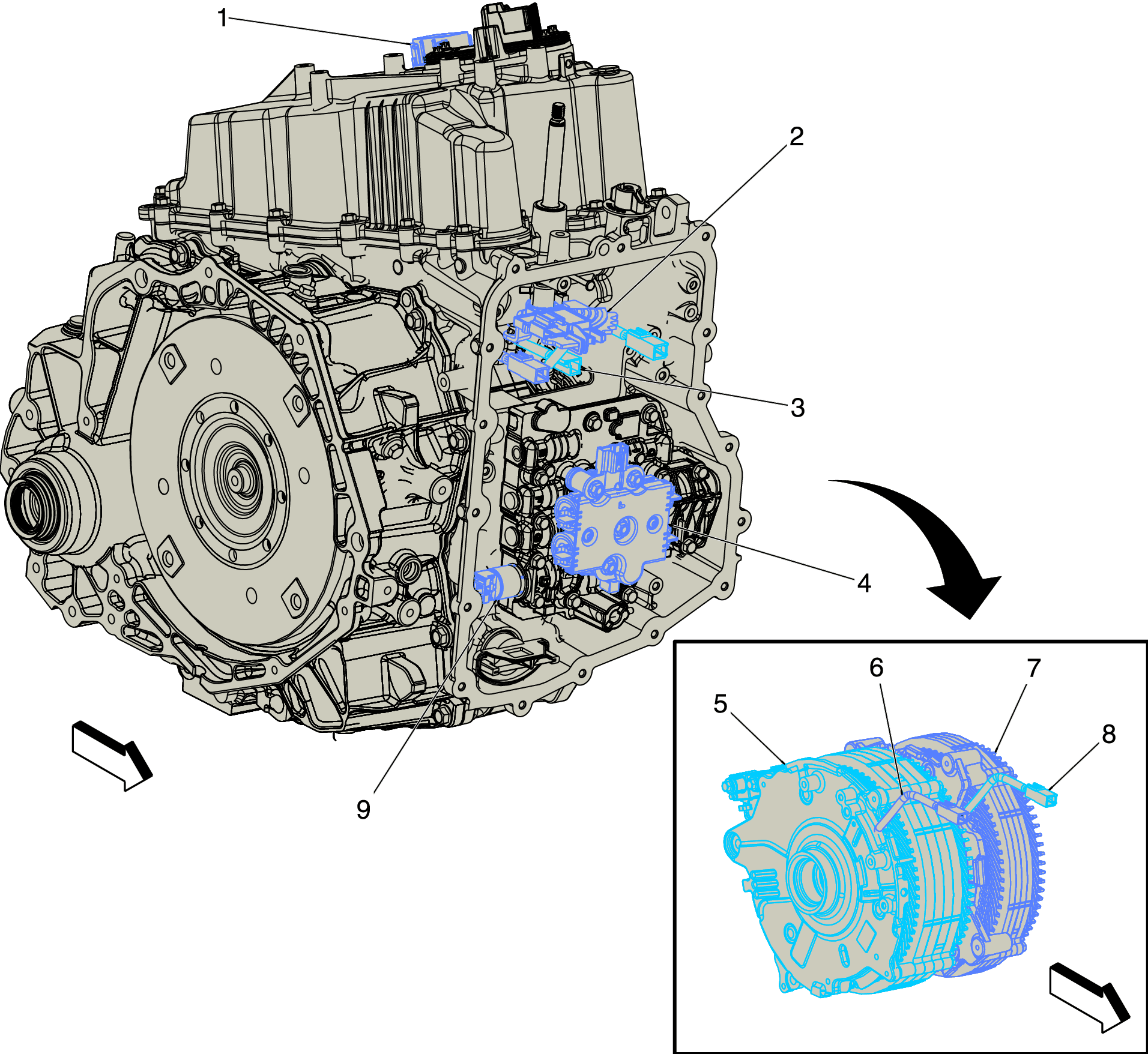

| Items |
|---|
| 1. T6 Power Inverter Module T6 Power Inverter Module X1T6 Power Inverter Module X2T6 Power Inverter Module X3T6 Power Inverter Module X4T6 Power Inverter Module X5 |
| 2. B15 Transmission Internal Mode Switch B15 Transmission Internal Mode Switch |
| 3. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor |
| 4. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly |
| 5. M15B Drive Motor 2 |
| 6. B228B Drive Motor 2 Position Sensor B228B Drive Motor 2 Position Sensor |
| 7. M15A Drive Motor 1 |
| 8. B228A Drive Motor 1 Position Sensor B228A Drive Motor 1 Position Sensor |
| 9. Q23 Line Pressure Control Solenoid Valve Q23 Line Pressure Control Solenoid Valve |
