Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

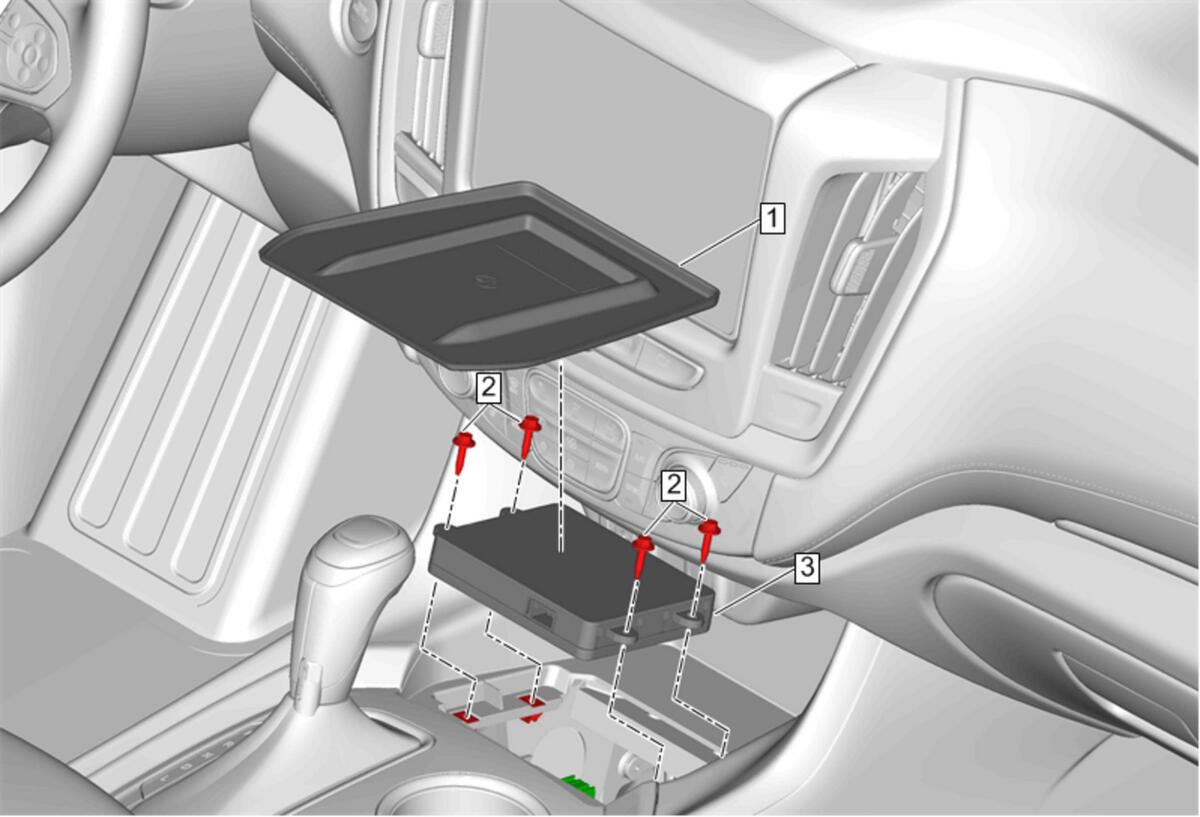

Callout	Component Name
1	Front Floor Console Variable 1 Liner
2	Wireless Charging System Module Bolt [4x] CAUTION: Fastener Caution Tighten  1 N.m (9 lb in)
3	Wireless Charging System Module Procedure  Disconnect the electrical connector.
