Endgate Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

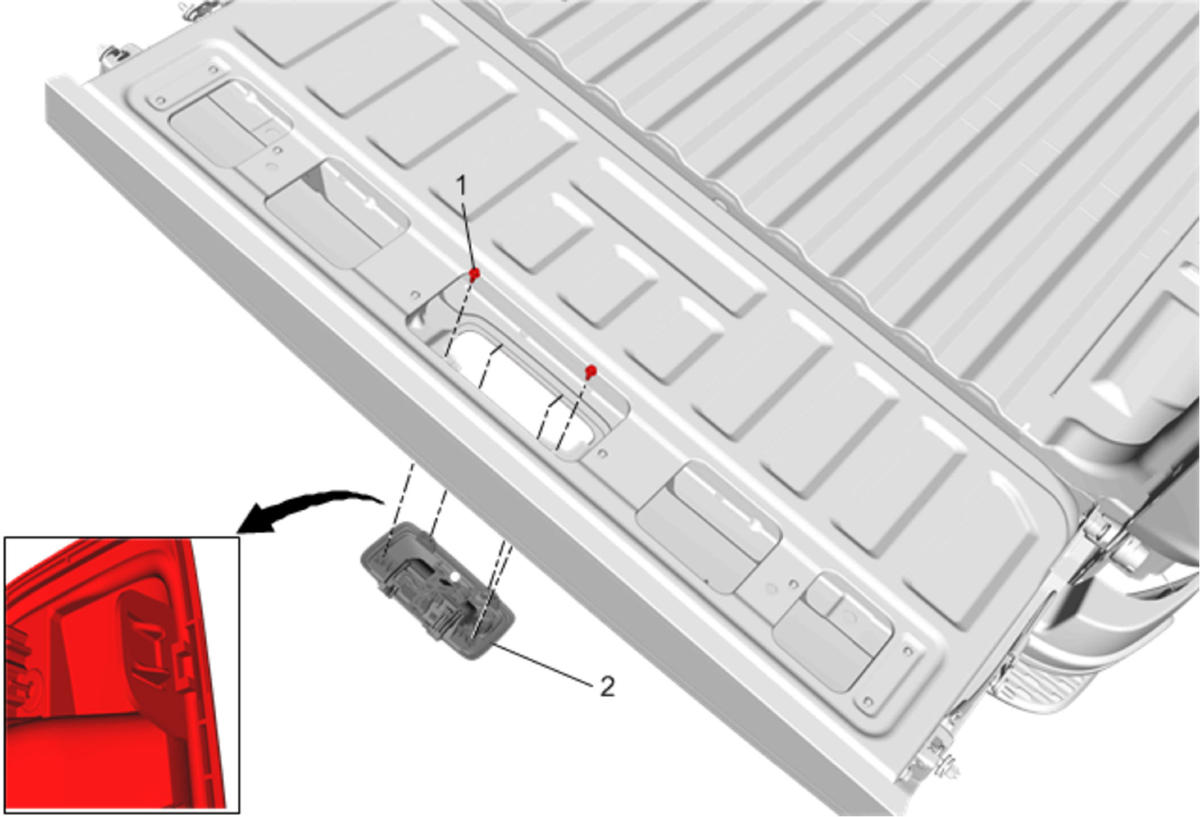

Callout	Component Name
Preliminary Procedure Pickup Box Endgate Access Hole Cover Panel Replacement . Rearview Driver Information Camera Replacement
1	Endgate Handle Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Endgate Handle Assembly Procedure Disconnect the actuator rods. Release the lower retainer tabs

Callout

Component Name

Preliminary Procedure

Endgate Handle Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Endgate Handle Assembly

Procedure
