Installation Procedure

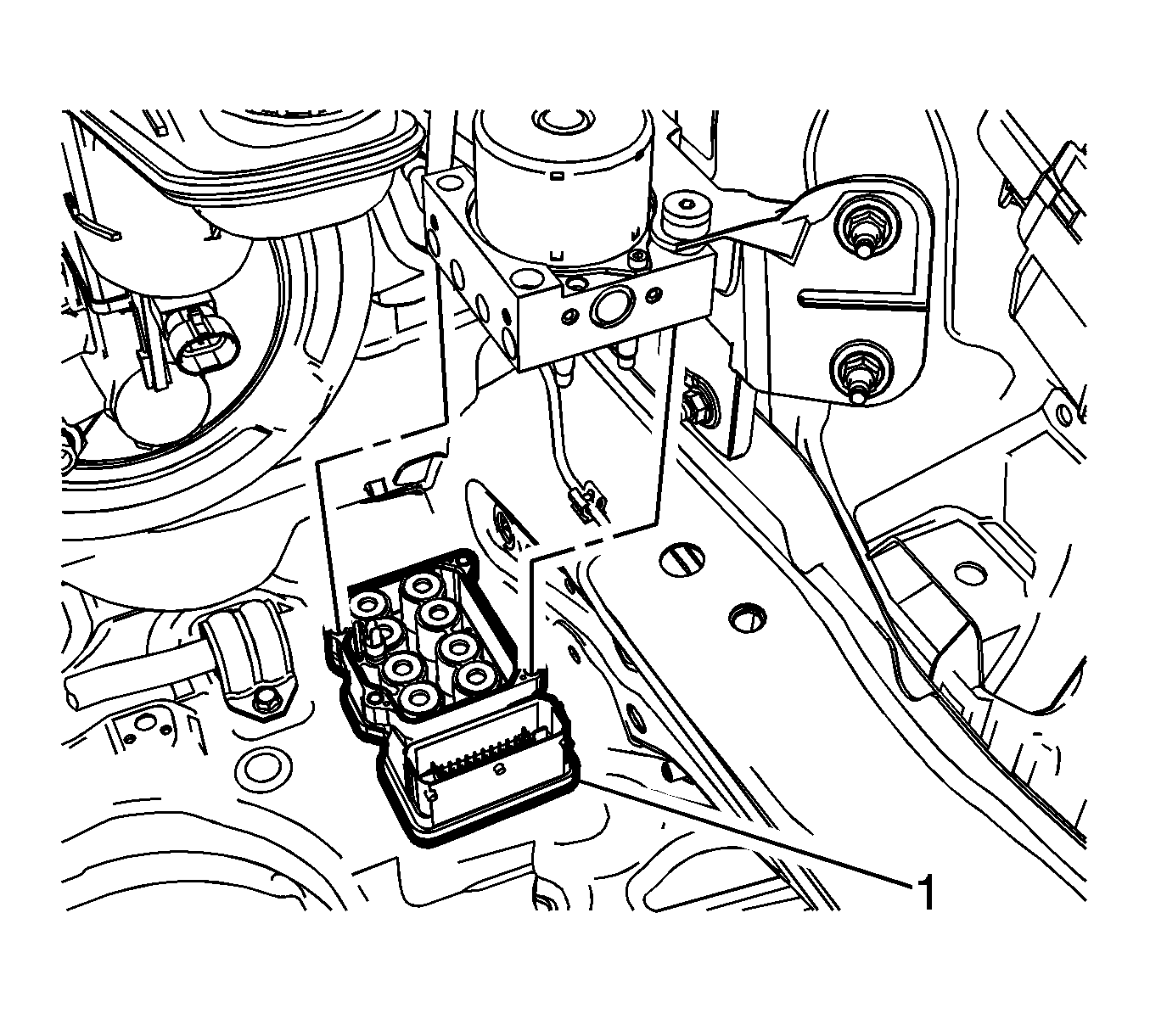

  1. GM2535378Courtesy of GENERAL MOTORS COMPANY

    Install the EBCM (1) to the BPMV.

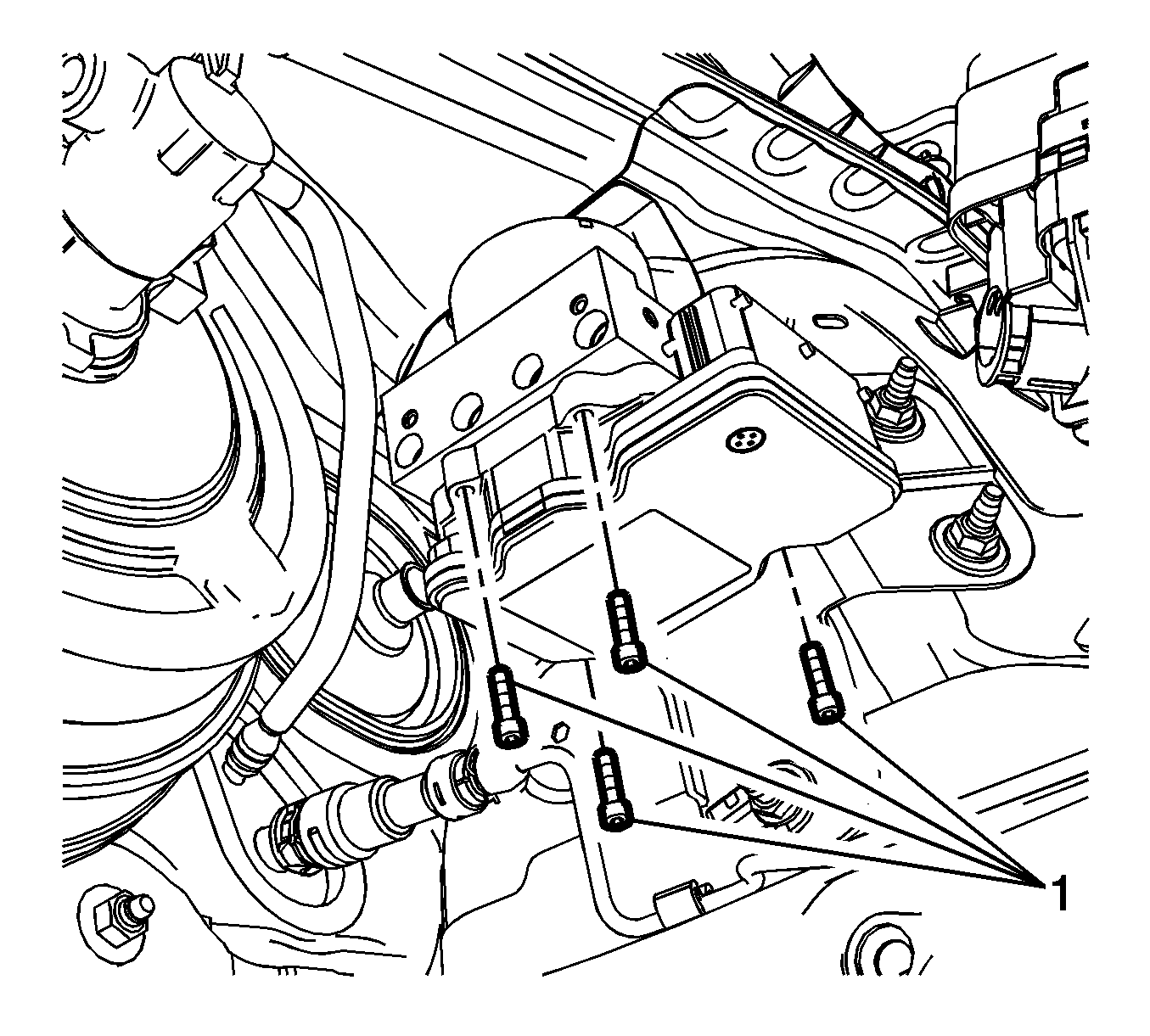

  2. GM2535377Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the EBCM bolts (1) and tighten to 3 N.m (26 lb in).

  3. Connect the EBCM electrical connector.
  4. Install the battery tray. Refer to Battery Tray Replacement .
  5. Program the EBCM. Refer to Control Module References .
