Installation Procedure

  1. GM2495375Courtesy of GENERAL MOTORS COMPANY

    Install the wheel speed sensor (1) to the steering knuckle.

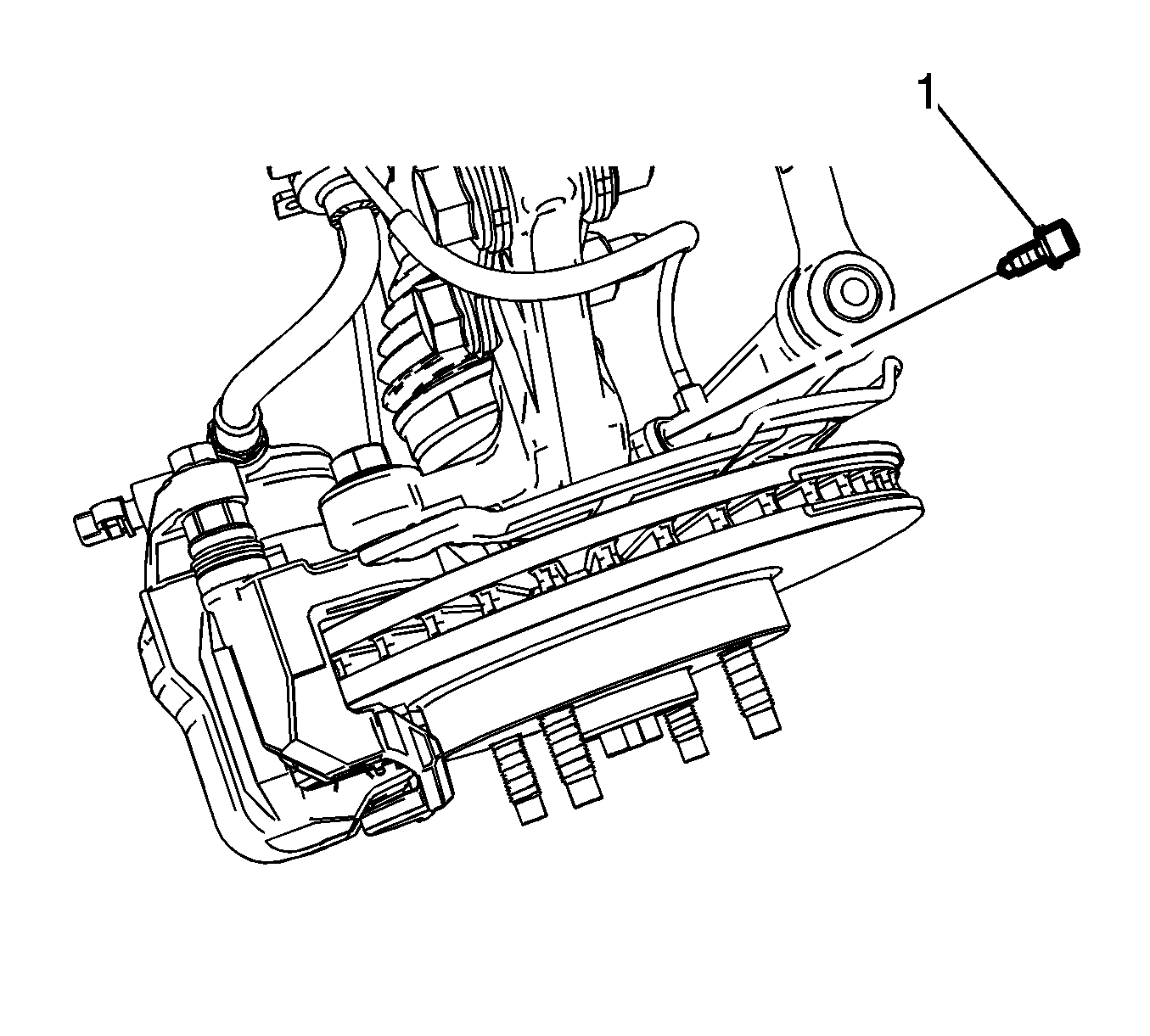

  2. GM2495371Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the wheel speed sensor bolt (1) and tighten to 8 N.m (71 lb in).

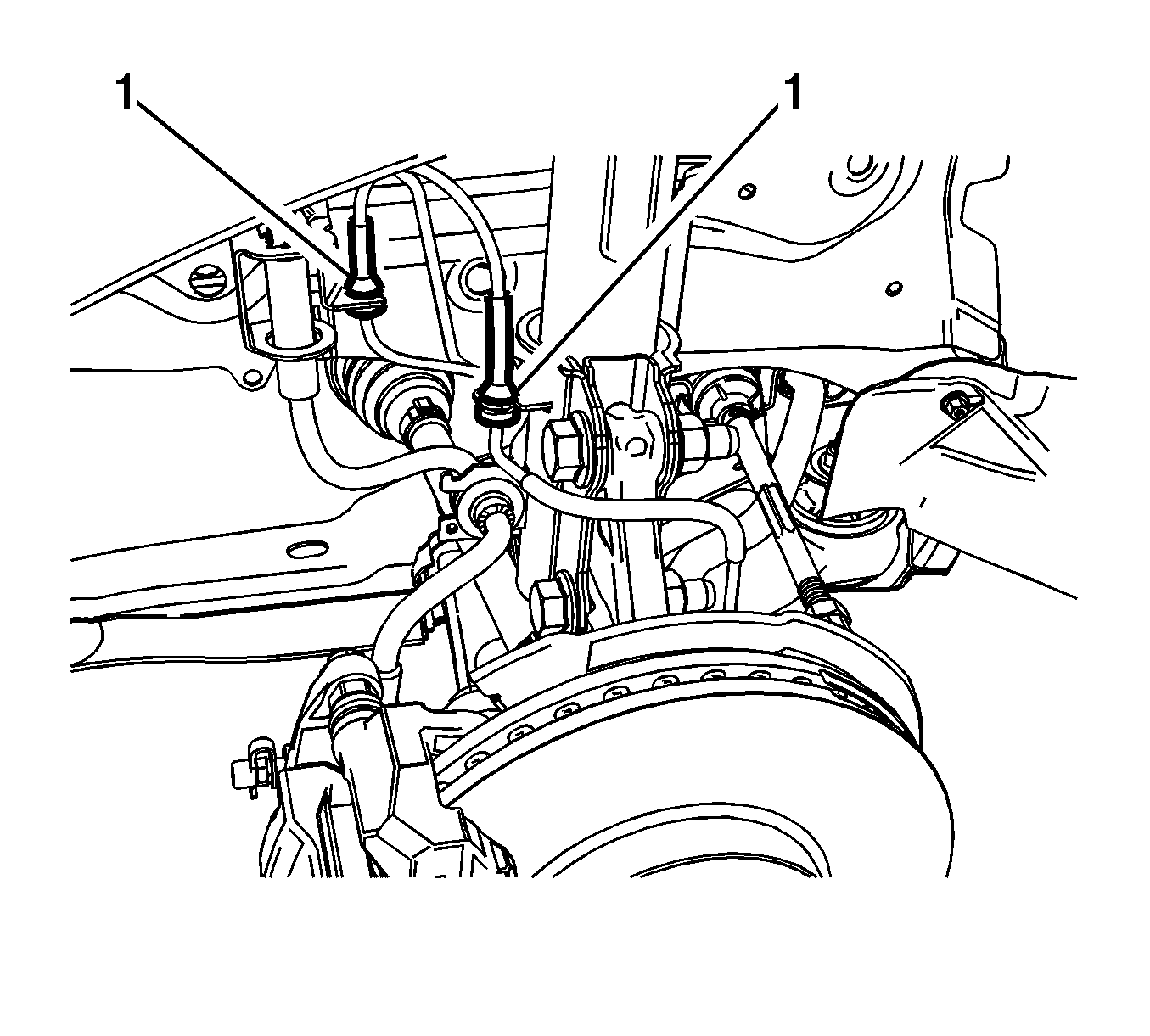

  3. GM2495367Courtesy of GENERAL MOTORS COMPANY

    Install the wheel speed sensor harness grommets (1) to the brake hose brackets.

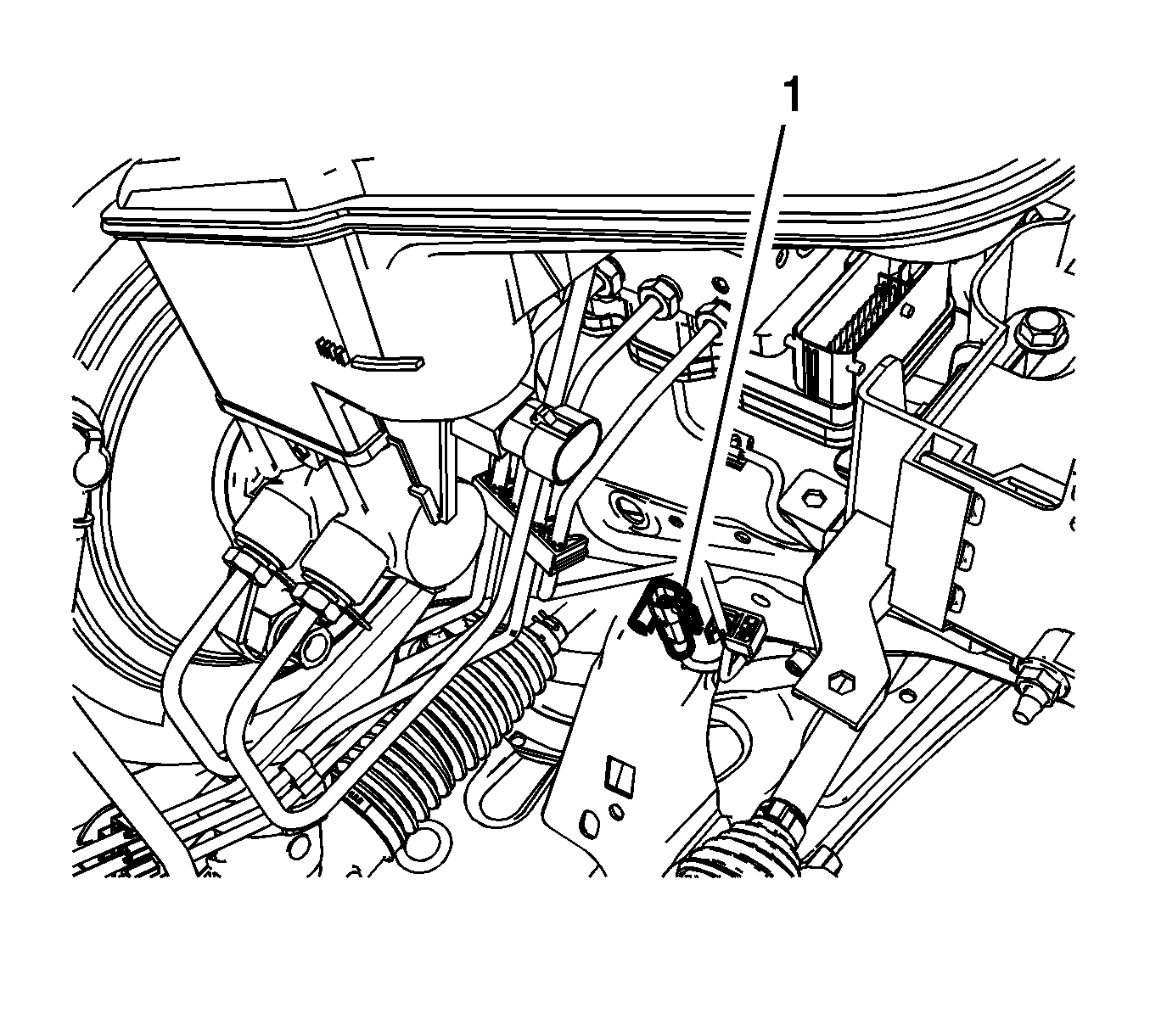

  4. GM2495364Courtesy of GENERAL MOTORS COMPANY

    Connect the wheel speed sensor electrical connector (1) and install the connector to the vehicle body.

  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Perform the Diagnostic System Check - Vehicle .
