Home >> Chevrolet >> 2020 >> Sonic LS >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator And Harness Routing Views >> Component Locator >> Instrument Panel/Center Console Component Views >> Under Instrument Panel Components

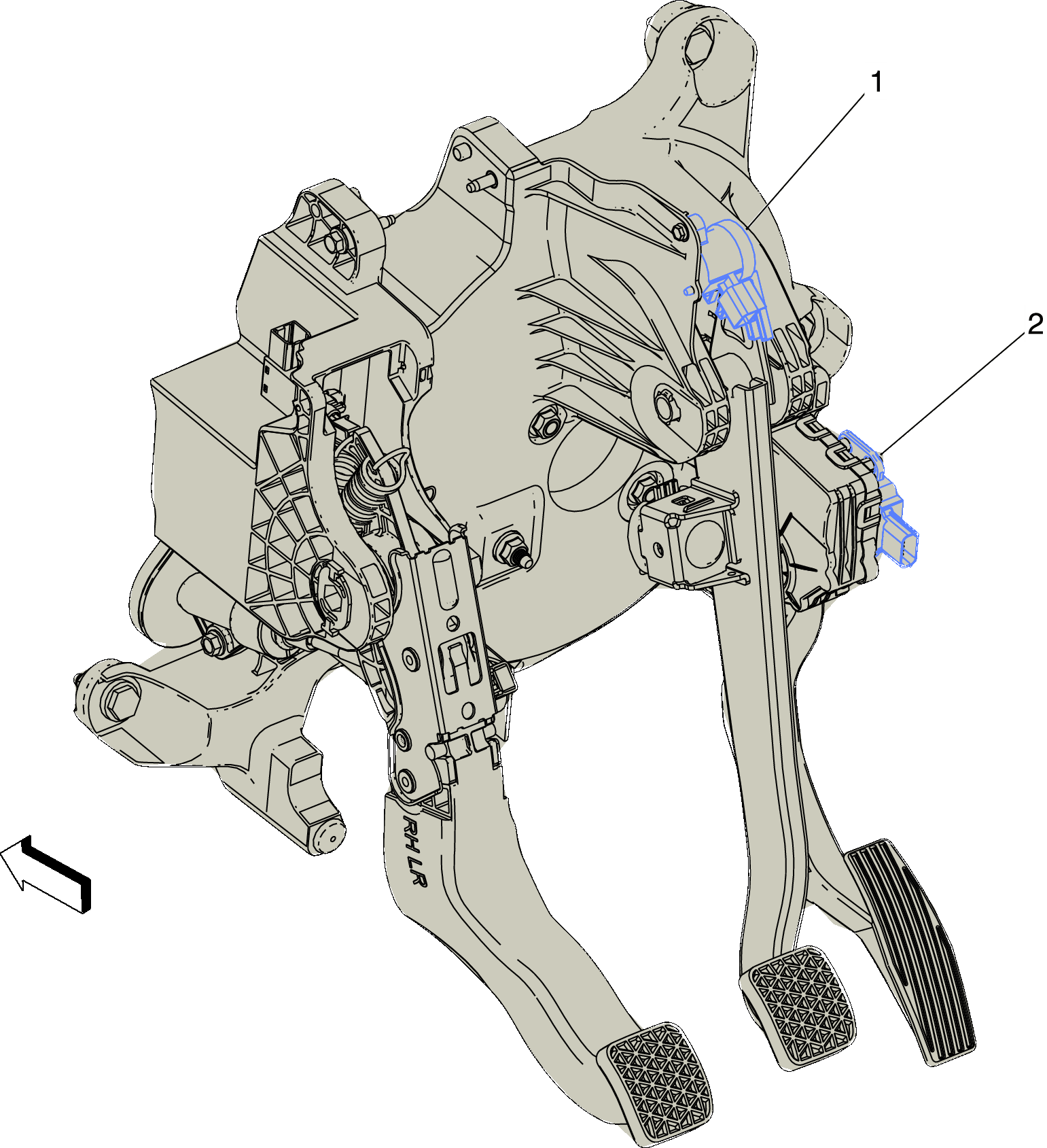

Under Instrument Panel Components

GM5366779Courtesy of GENERAL MOTORS COMPANY
Under Instrument Panel Components

Component Name Callout
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MH8) 1
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor 2
