Turn Signal Multifunction Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

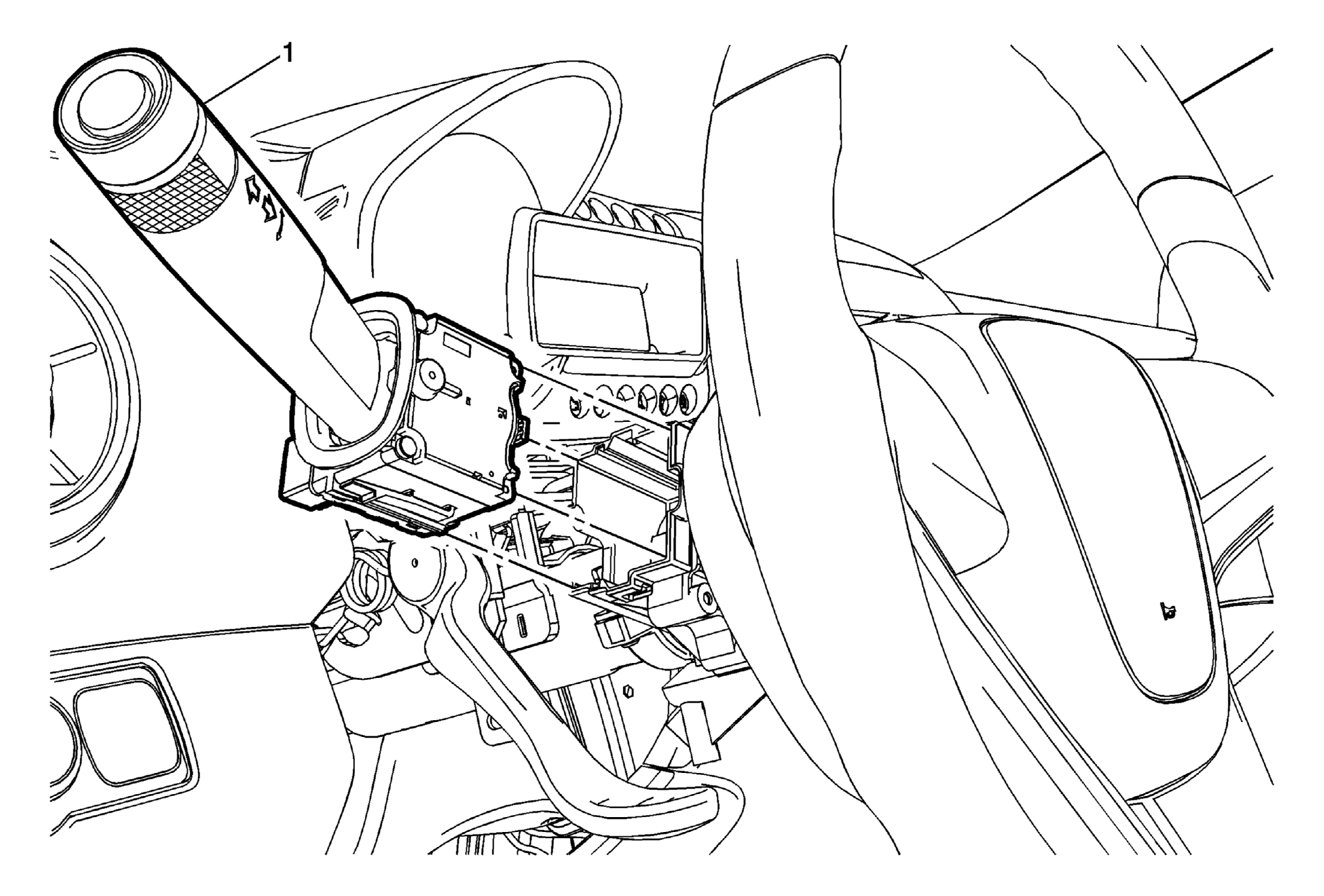

Callout	Component Name
Preliminary Procedure Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement .
1	Turn Signal Switch Procedure Disconnect any electrical connectors as necessary. Release the plastic retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement .

Turn Signal Switch

Procedure

Disconnect any electrical connectors as necessary.
Release the plastic retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.
