Keyless Entry Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument cluster. Refer to Instrument Cluster Replacement .

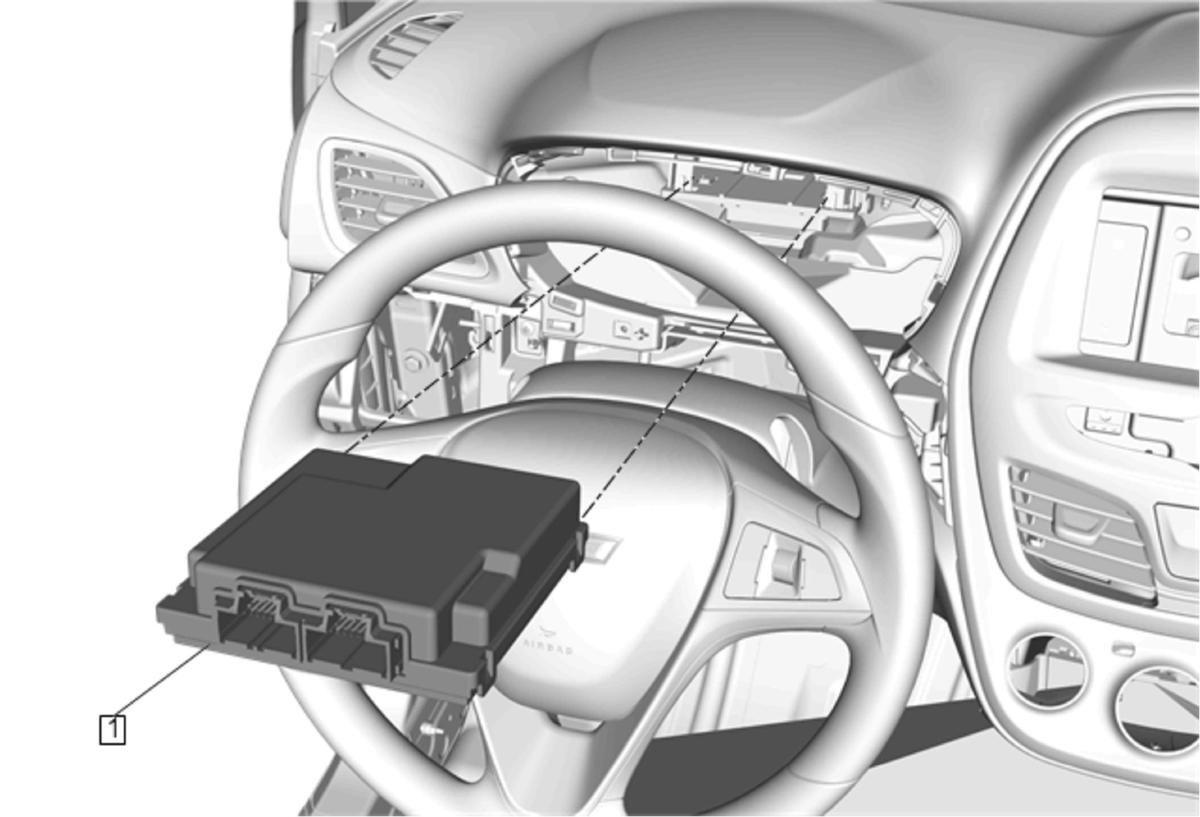

1	Keyless Entry Control Module Procedure  Disconnect keyless entry control module electric connectors and remove the module from the bracket.
