Electrical Component Locator And Harness Routing Views
>>
Component Locator
>>
Instrument Panel/Center Console Component Views
>>

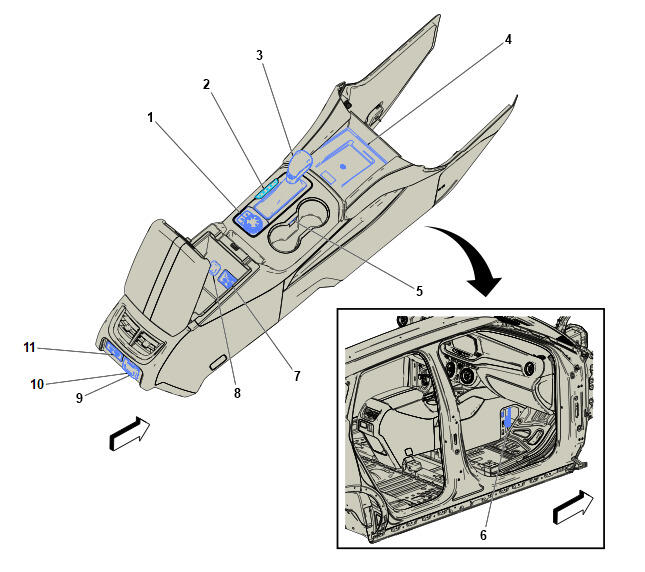

Center Console Components
Center Console Components
Courtesy of GENERAL MOTORS COMPANY
Center Console Components
Component Name
Callout
S126 Drive Mode Select Switch
S126 Drive Mode Select Switch
1
P2 Transmission Shift Lever Position Indicator
P2 Transmission Shift Lever Position Indicator
2
S3 Transmission Shift Lever
S3 Transmission Shift Lever
3
T22 Mobile Device Wireless Charger Module (K4C)
T22 Mobile Device Wireless Charger Module (K4C)
4
E1AC Accent Lamp - Center Console Cupholder (TSQ)
E1AC Accent Lamp - Center Console Cupholder (TSQ)
5
X51A Fuse Block - Instrument Panel
X51A Fuse Block - Instrument Panel
6
X83 Auxiliary Audio Input (IOU)
X83 Auxiliary Audio Input X1 (IOU)
, or
X83 Auxiliary Audio Input X2 (IOU)
7
X80D Accessory Power Receptacle - Center Console Compartment
X80D Accessory Power Receptacle - Center Console Compartment
8
X81 Accessory Power Receptacle - 110V AC (KI6)
X81 Accessory Power Receptacle - 110V AC X1 (KI6)
, or
X81 Accessory Power Receptacle - 110V AC X2 (KI6)
9
X81B Accessory Power Receptacle - 220V AC (KI7)
X81B Accessory Power Receptacle - 220V AC X1 (KI7)
, or
X81B Accessory Power Receptacle - 220V AC X2 (KI7)
10
X92C USB Receptacle - Center Console Rear
X92C USB Receptacle - Center Console Rear
