Installation Procedure

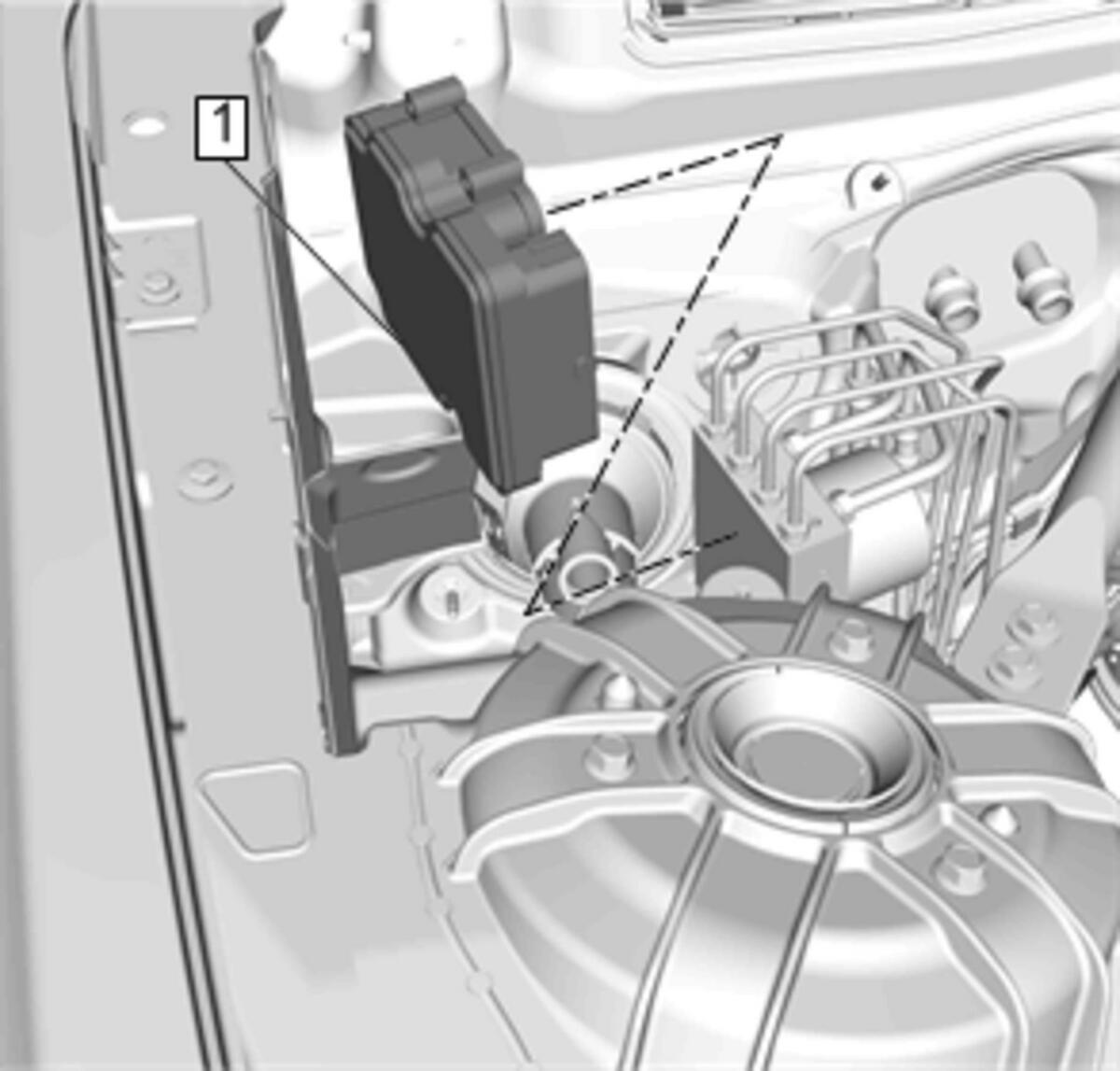

  1. GM4161878Courtesy of GENERAL MOTORS COMPANY

    Electronic Brake Control Module (1) - Install

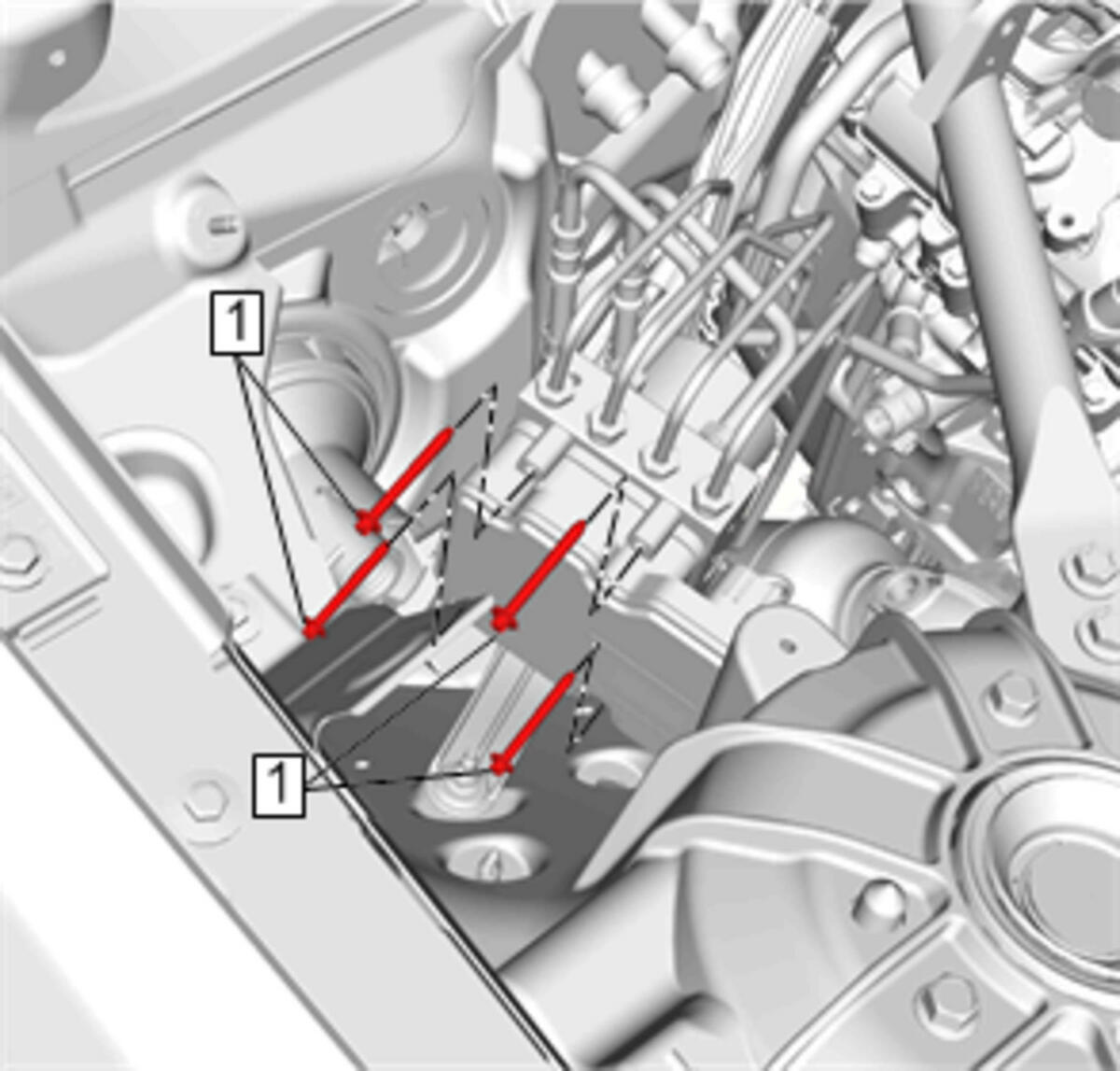

  2. GM4161877Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Electronic Brake Control Module Bolt (1) - Install and tighten 3 N.m (27 lb in) [4x]

  3. Connect the EBCM electrical connector.
  4. Windshield Washer Solvent Container Filler Tube Replacement - Install
  5. Program the EBCM. Control Module References
