Heated Steering Wheel Module Replacement

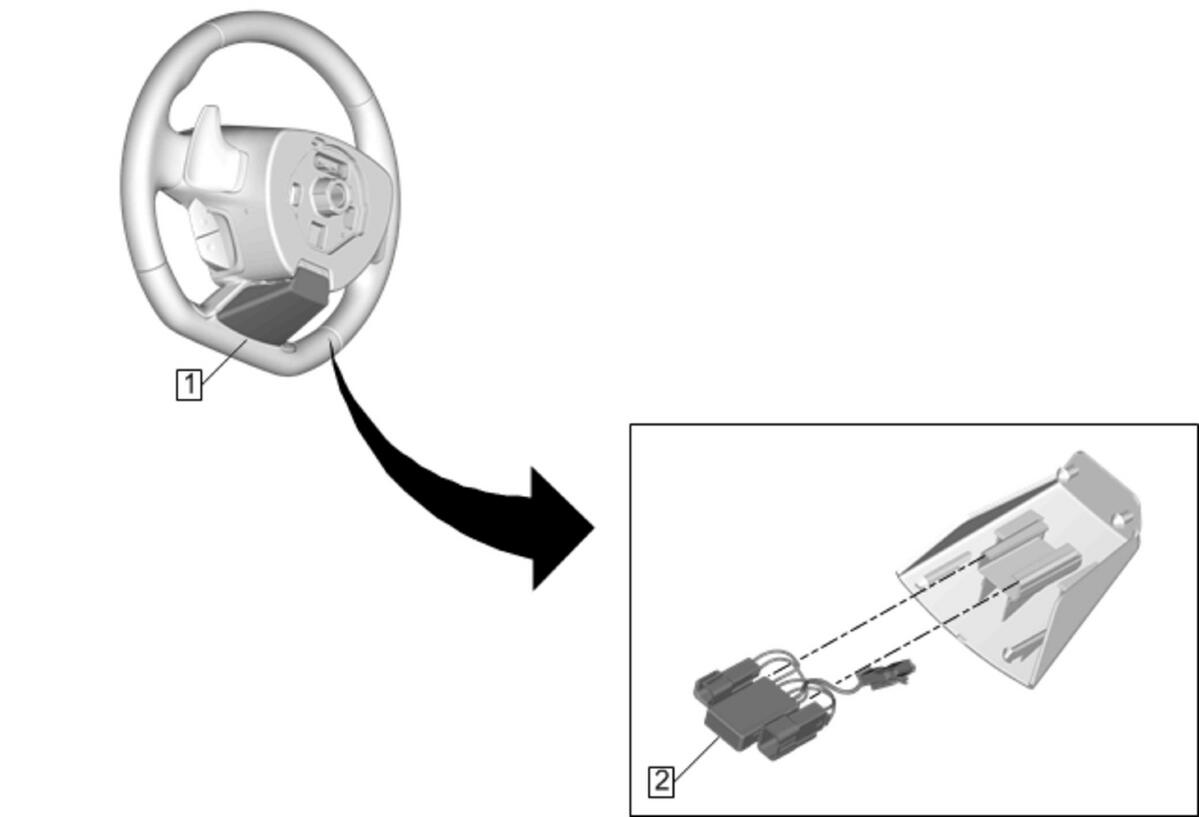

GM4208300Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Steering Wheel Heat Control Module Cover

Procedure

  1. Release and lower the steering wheel heat control module cover to access the electrical connectors.
  2. Disconnect the electrical connectors.
2 Steering Wheel Heat Control Module

Procedure

  1. Release the steering wheel heat control module electrical connectors from the steering wheel heat control module cover.
  2. Remove the steering wheel heat control module from the steering wheel heat control module cover.
