Remote Function Actuator Module Replacement

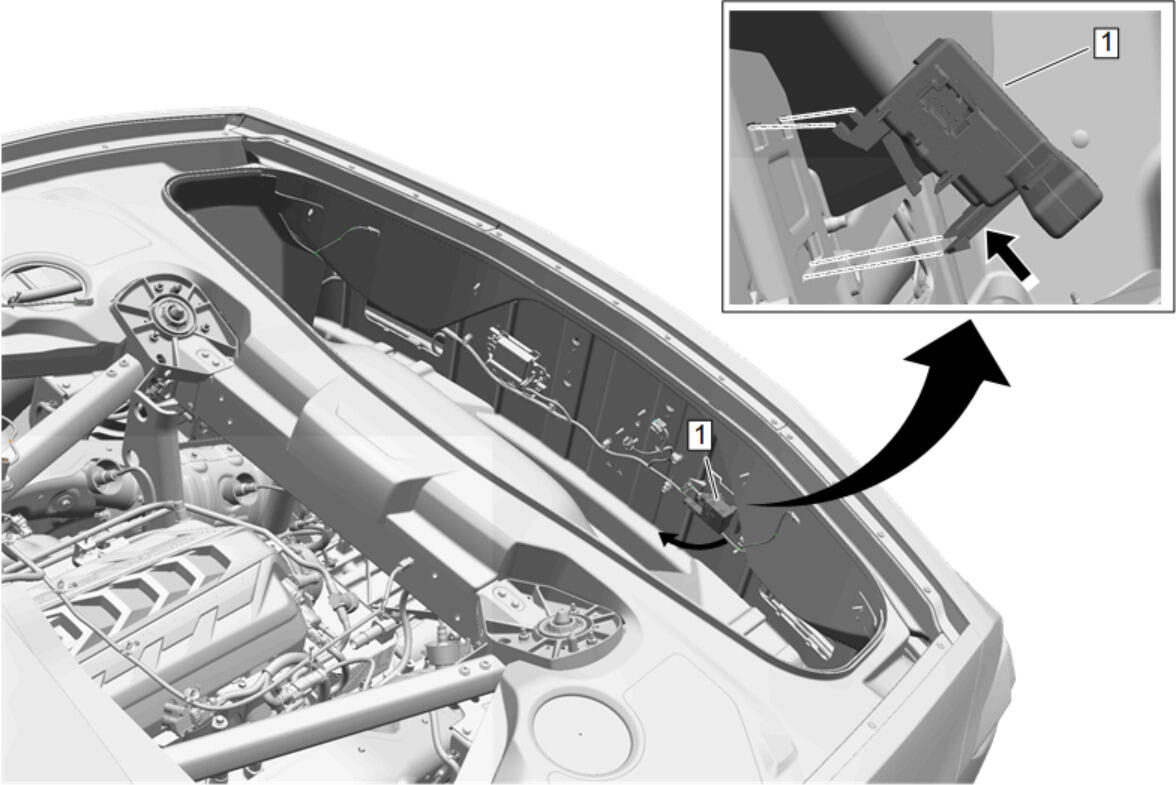

GM5386297Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear End Trim Cover Panel Replacement
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Push up on the lower retaining tab, pull down and forward to remove.
