EVAP Testing Port Modification (PIP5786A)
Publication date: 2021-03-17Reference number: PIP5786A
Supersedes refnos: PIP5786
EVAP TESTING PORT MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): PIP5786A, Date of Issue:
Mar 17, 2021
SERVICE INFORMATION
| Brand: | Model: | Model Year: | VIN: | Engine: | Transmission: | ||
|---|---|---|---|---|---|---|---|
| from | to | from | to | ||||
| Chevrolet | Corvette | 2020-2021 | All | All | 6.2L LT2 | All | |
| Involved Region or Country | North America |
| Condition | If vehicle may come in with a need to test the EVAP system for a leaks. |
| Cause | The EVAP line connection style changed, resulting in the need to modifying the tool CH-52519 |
CORRECTION
When Installing CH-52519 on corvette in location described in EVAP documents and Doc Id 5757934.
CH-52519 Needs to be modified or a commercially available low profile fuel line disconnect tool needs to be sourced, failure to do so will result in CH-52519 being non-removable from EVAP line.

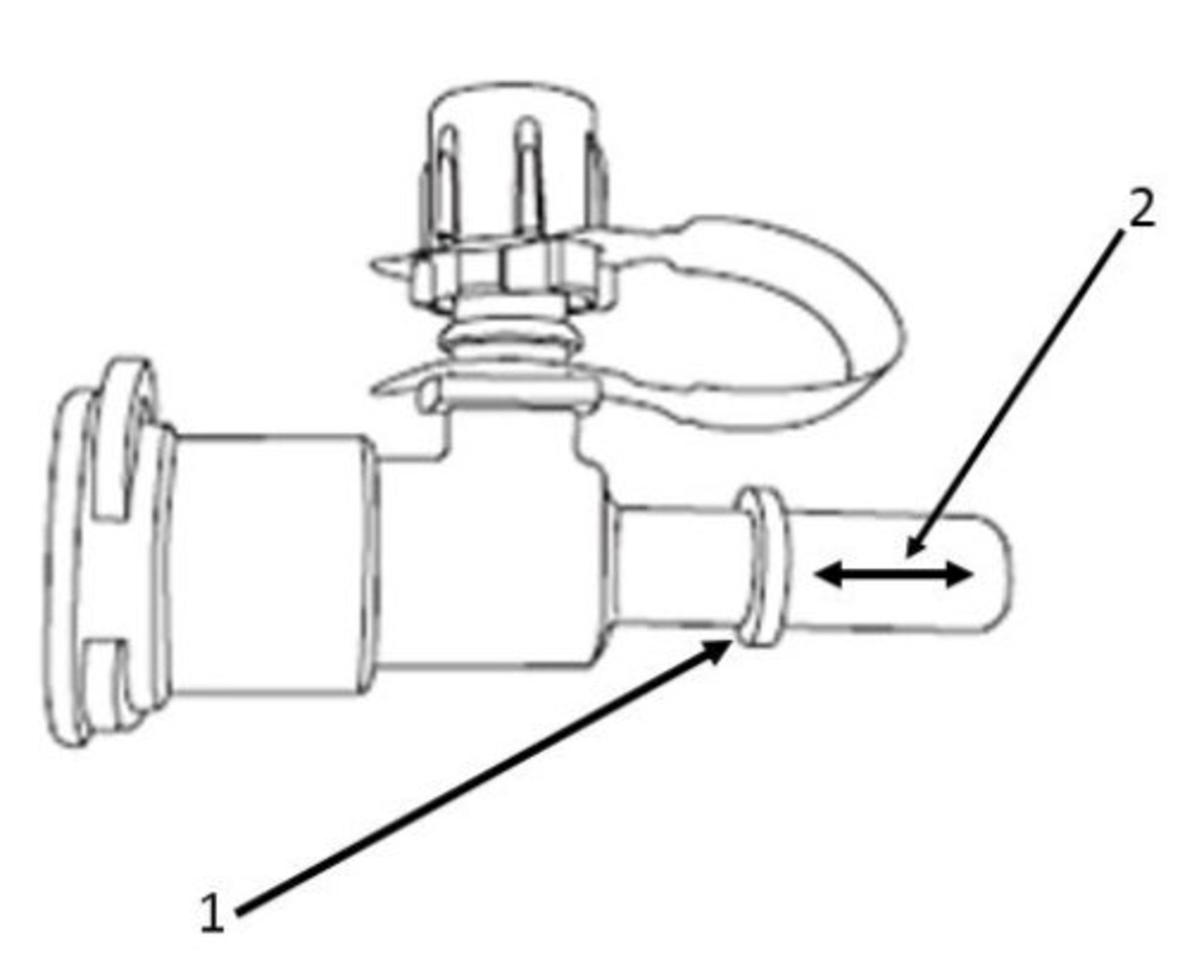

Rib located at (1) needs to be modified following these precautions for CH-52519 to be removed from Corvette purge line.
NOTE:
Performing this modification voids the tool warranty for CH-52519
Read entire list before modifying tool
- Rib located at (1) needs to be Filed down
- Do not damage/cut/scratch area (2) when filing rib damage to section (2) will result in tool not sealing
- Do not file rib flush as damage to sealing surface may occur
- Leave smallest amount of rib material on tool without damaging sealing surface (2)
- File rib evenly paying close attention not to damage sealing surface (2)
NOTE:
This modification should not have any effect on how the tool works with other vehicles.
Corvette CH-52519 Installation location described in Doc Id 5757934
SERVICE INFORMATION
| Version | 2 |
| Modified | 03/08/2021 - Created on. 03/17/2021 - update to add note performing this modification voids the tool warranty for CH-52519 |
