Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Front Compartment Insulator - Remove - Front Compartment Insulator Replacement

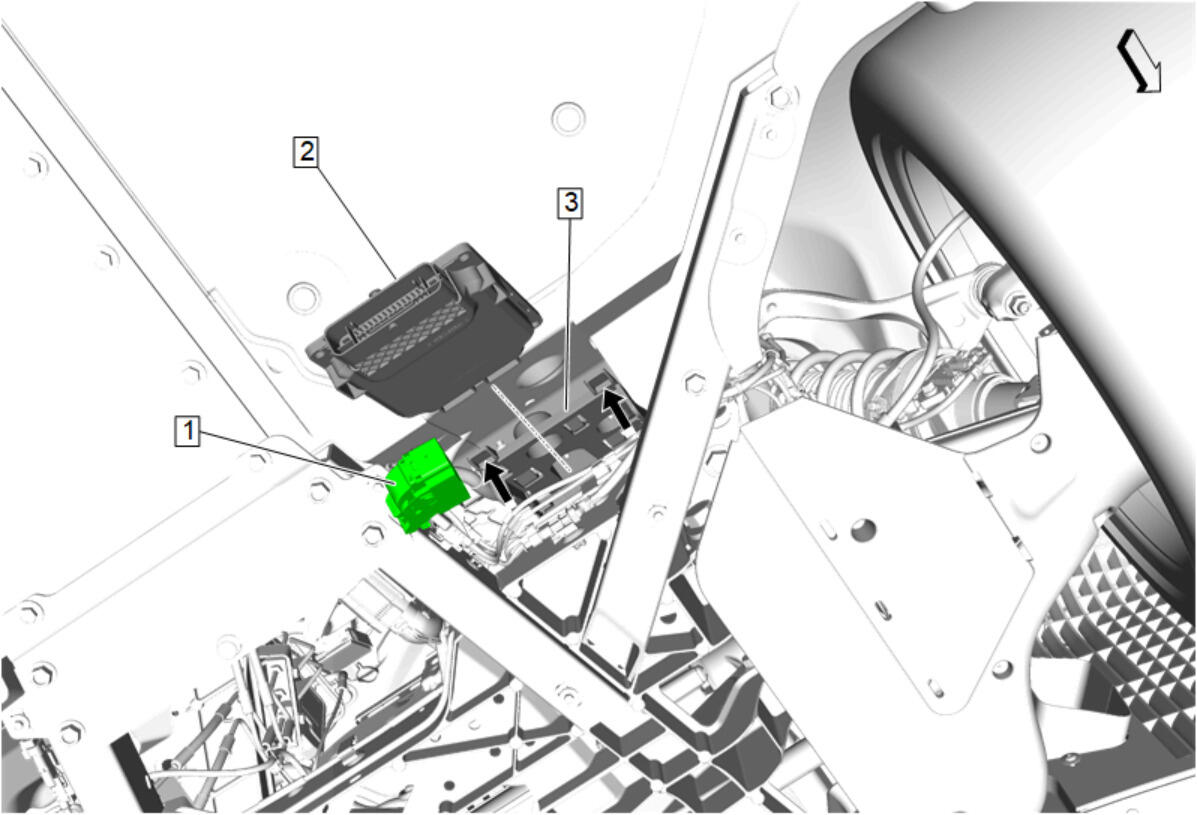

Electrical Connector (1) @ Electronic Suspension Control Module (2) - Disconnect and position aside
- Depress the 2 retaining tabs on the electronic suspension control module bracket (3) in the direction as indicated by the arrows.
- Slide the electronic suspension control module (2) out of the electronic suspension control module bracket (3).
