Body Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel knee bolster bracket - right side. Instrument Panel Knee Bolster Bracket Replacement (Right Side)

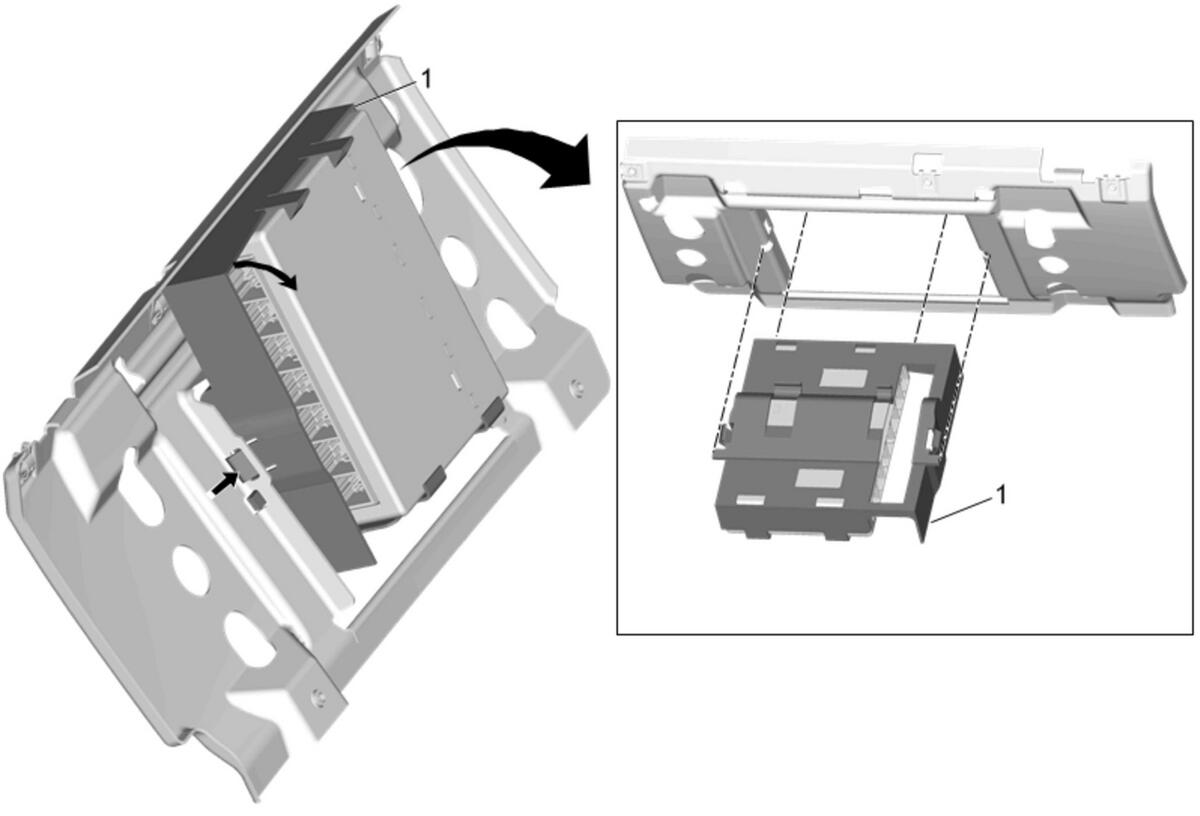

1	Body Control Module Bracket Procedure Release the retaining tabs. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster bracket - right side. Instrument Panel Knee Bolster Bracket Replacement (Right Side)

Body Control Module Bracket

Procedure
