Body Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel knee bolster bracket - right side. Instrument Panel Knee Bolster Bracket Replacement (Right Side)

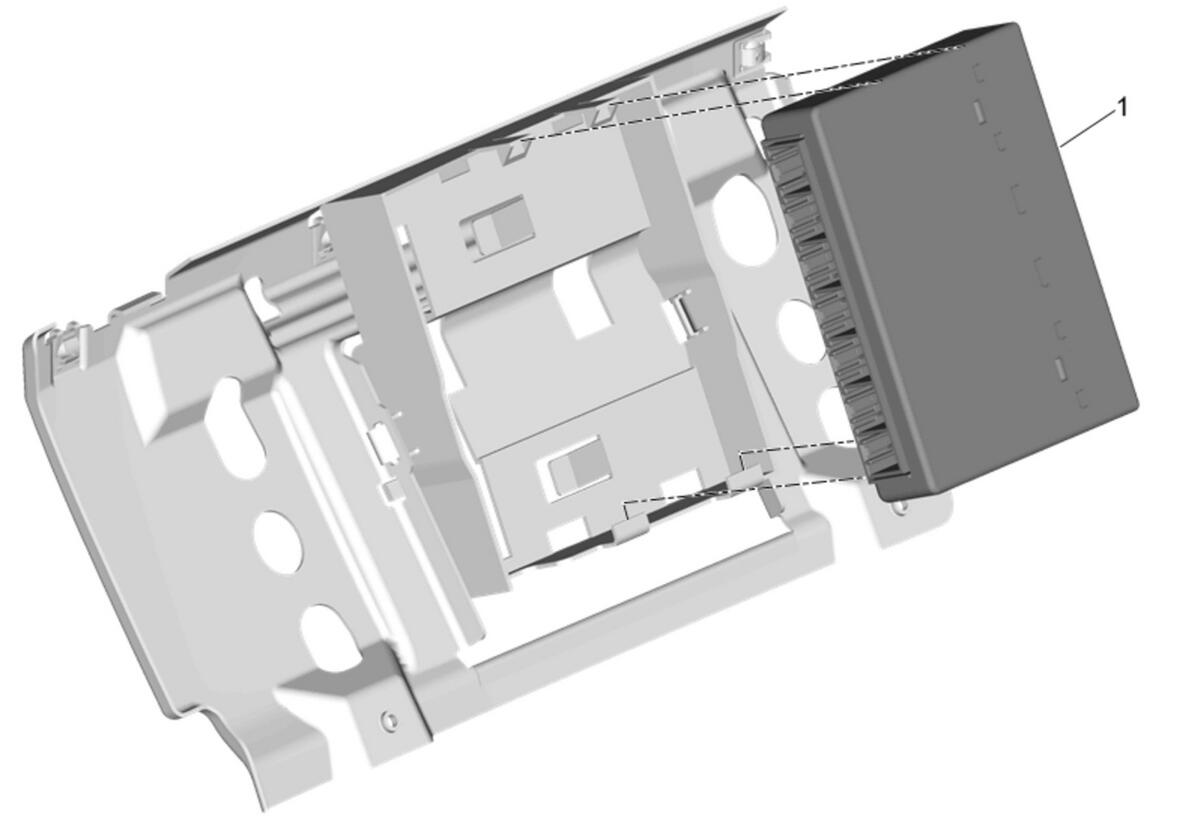

1	Body Control Module Procedure Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster bracket - right side. Instrument Panel Knee Bolster Bracket Replacement (Right Side)

Body Control Module

Procedure

Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
