Installation Procedure
- If replacing the engine control module, reprogram the module. Control Module References

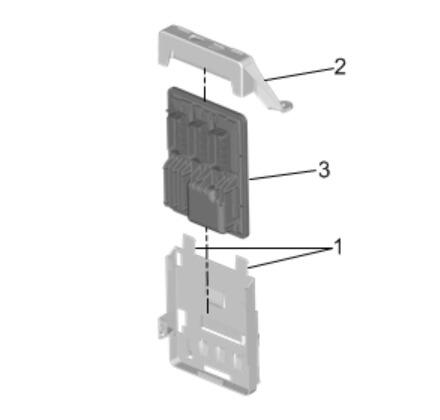

Engine Control Module (3) - Install.
- Engine Control Module Cover (2) - Install
- Engine Control Module Bracket Retaining Tabs (1) - Engage [2x]

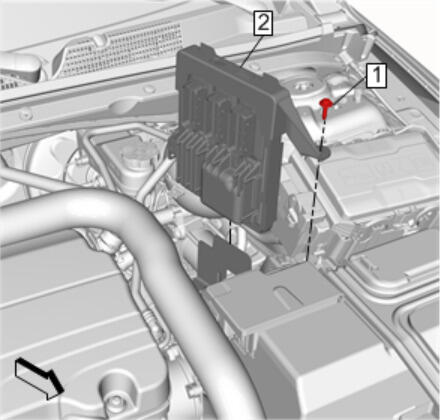

Engine Control Module And Bracket Assembly (2) - Install
- Engine Control Module Bracket Bolt (1) - Install 9 N.m (80 lb in)
- Electrical Connector @ Engine Control Module - Connect
- Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9) - Connect
CAUTION:
Refer to Fastener Caution .
