Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement

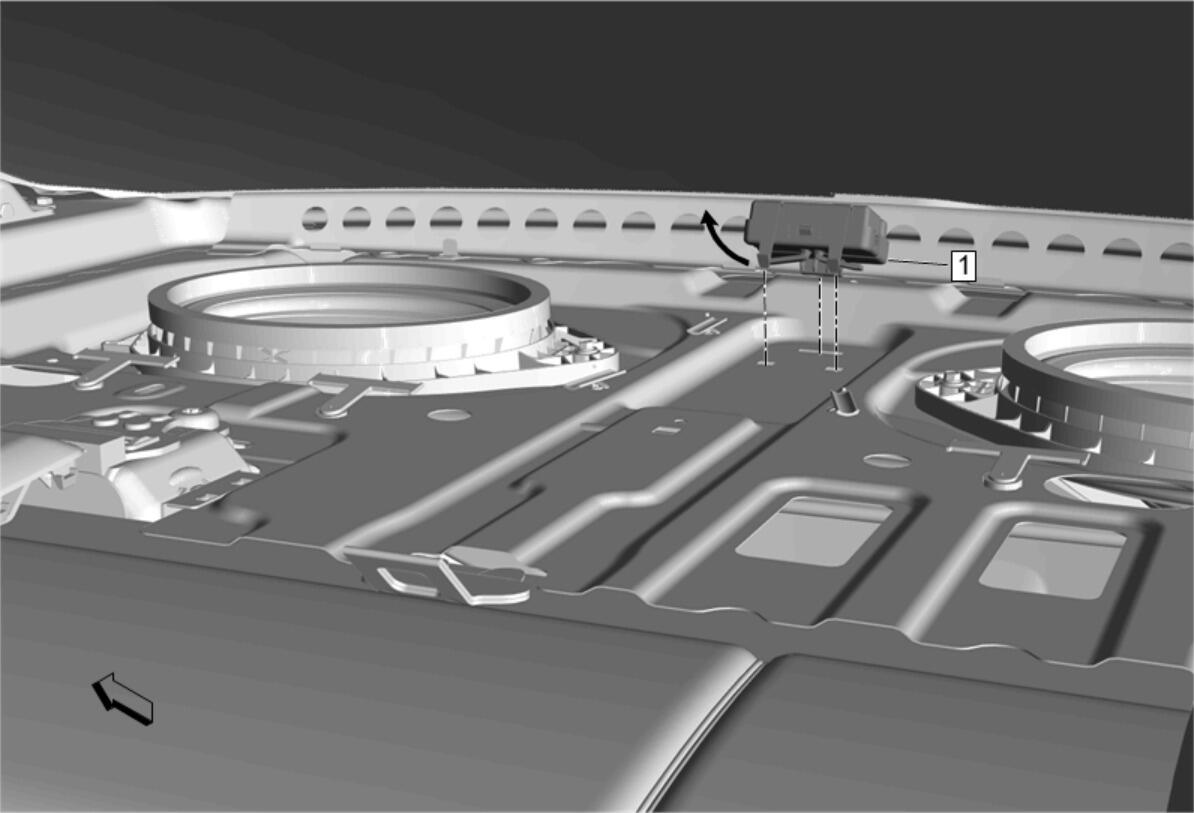

1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs. Lift the front side of the receiver upward and rearward to remove from the rear window panel.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Lift the front side of the receiver upward and rearward to remove from the rear window panel.
