Removal Procedure

CAUTION:

Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

Place the ignition switch in the OFF position.
Thoroughly clean the electronic brake control module (EBCM) to brake pressure modulator valve (BPMV) area of any accumulated dirt and debris.
Electronic Traction Control Brake Pressure Modulator Valve Replacement - Remove
Courtesy of GENERAL MOTORS COMPANY

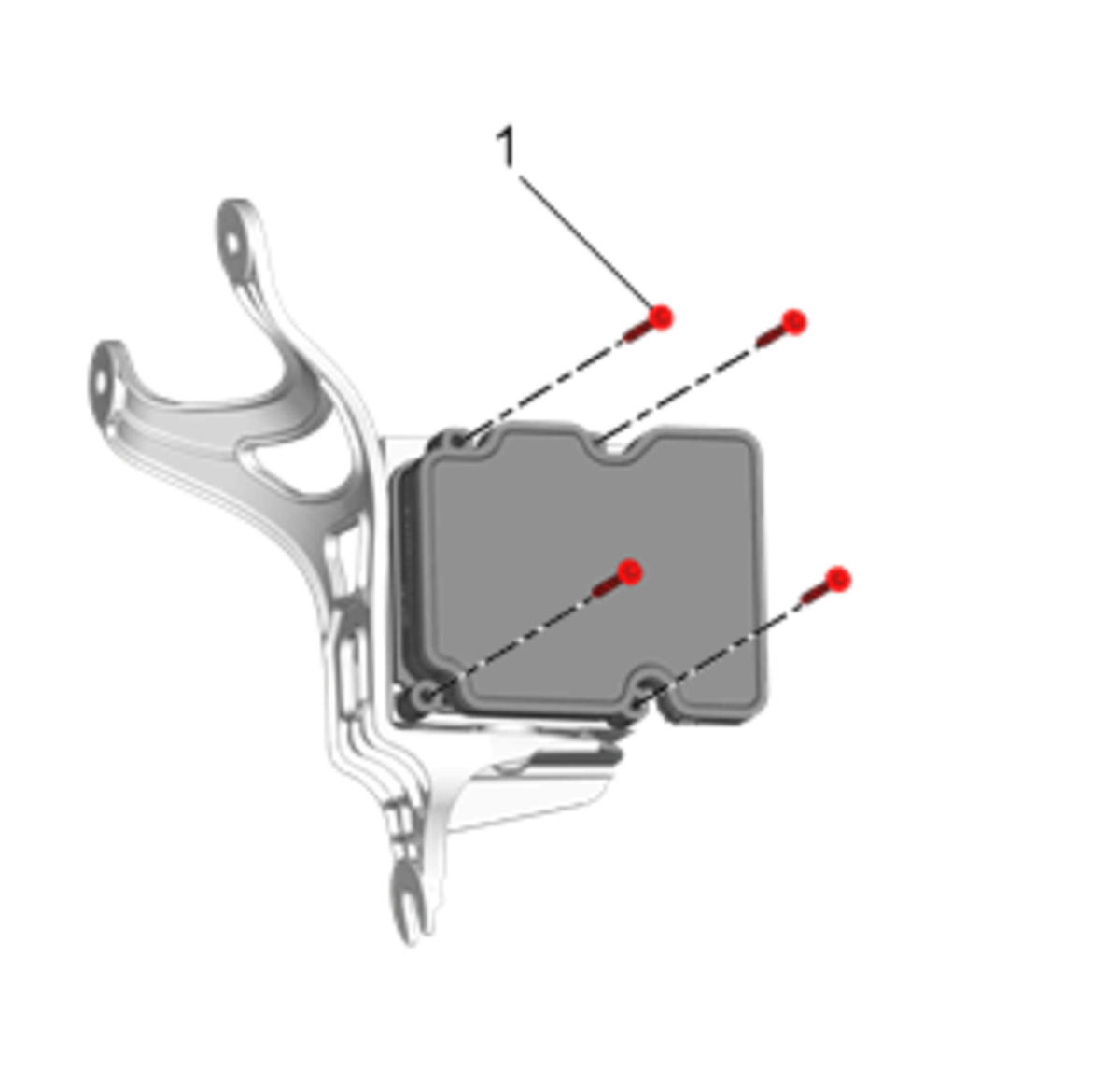

Electronic Brake Control Module Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT pry the components apart.

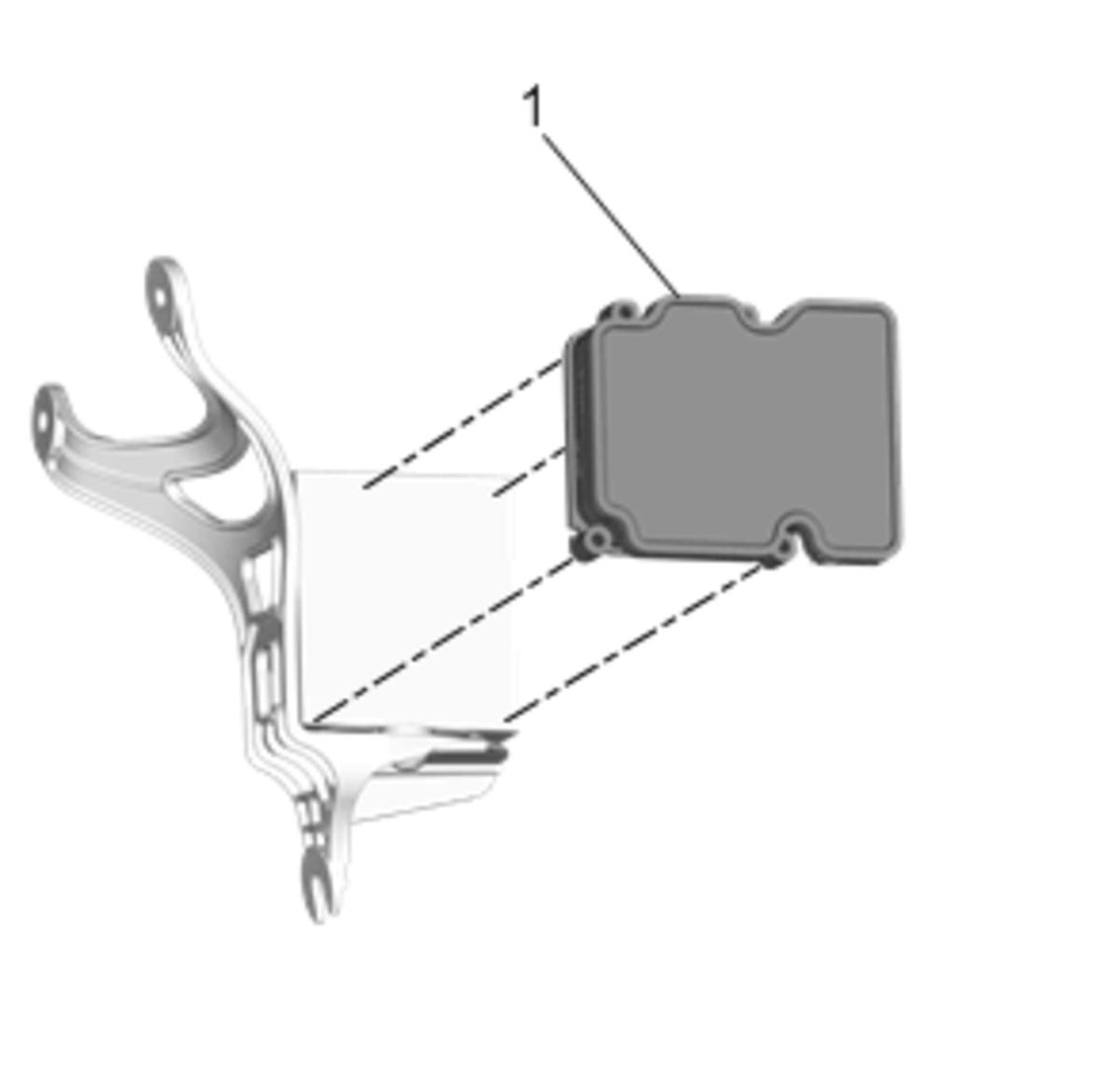

Electronic Brake Control Module (1) - Remove
