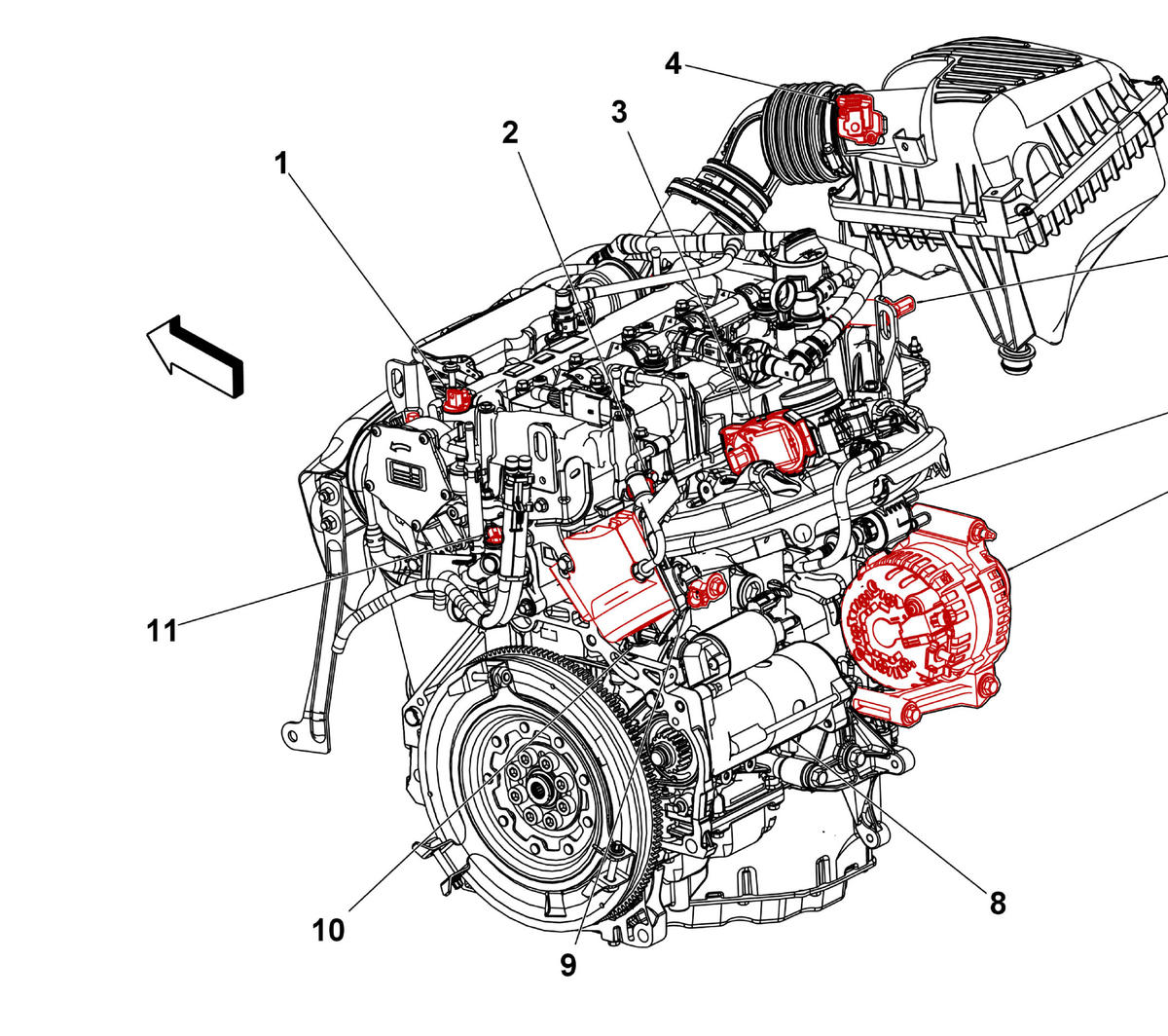

Engine Components - Left Rear
Engine Components - Left Rear
| Component Name | Callout |
|---|---|
| B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust | 1 |
| B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake | 2 |
| Q38 Throttle Body Q38 Throttle Body | 3 |
| B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor | 4 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake | 5 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 6 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 (-KL9) , or G13 Generator X2 (KL9) | 7 |
| M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 | 8 |
| B68 Knock Sensor B68 Knock Sensor | 9 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 10 |
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor | 11 |
