Fastener Specifications
NOTE:
Callouts in the following chart represent components shown in graphic above.

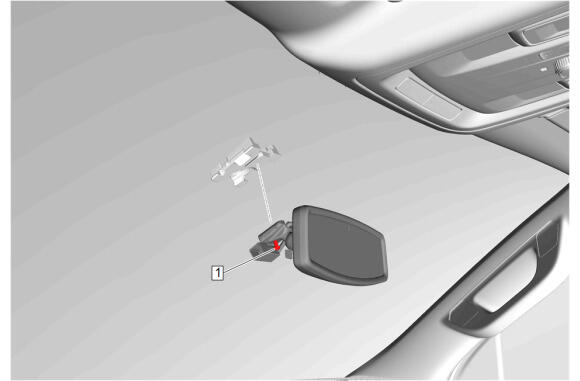

Inside Rearview Mirror
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Inside Rearview Mirror Bolt | - | - | 1.8 N.m (16 lb in) | Inside Rearview Mirror Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

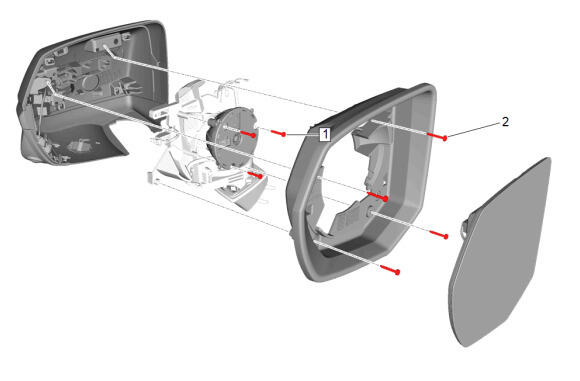

Outside Rearview Mirror Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Bolt [3x] | - | - | 1.1 N.m (10 lb in) | Outside Rearview Mirror Actuator Replacement |
| 2 | Outside Rearview Mirror Opening Applique Bolt [4x] | - | - | 1.1 N.m (10 lb in) | Outside Rearview Mirror Housing Bezel Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

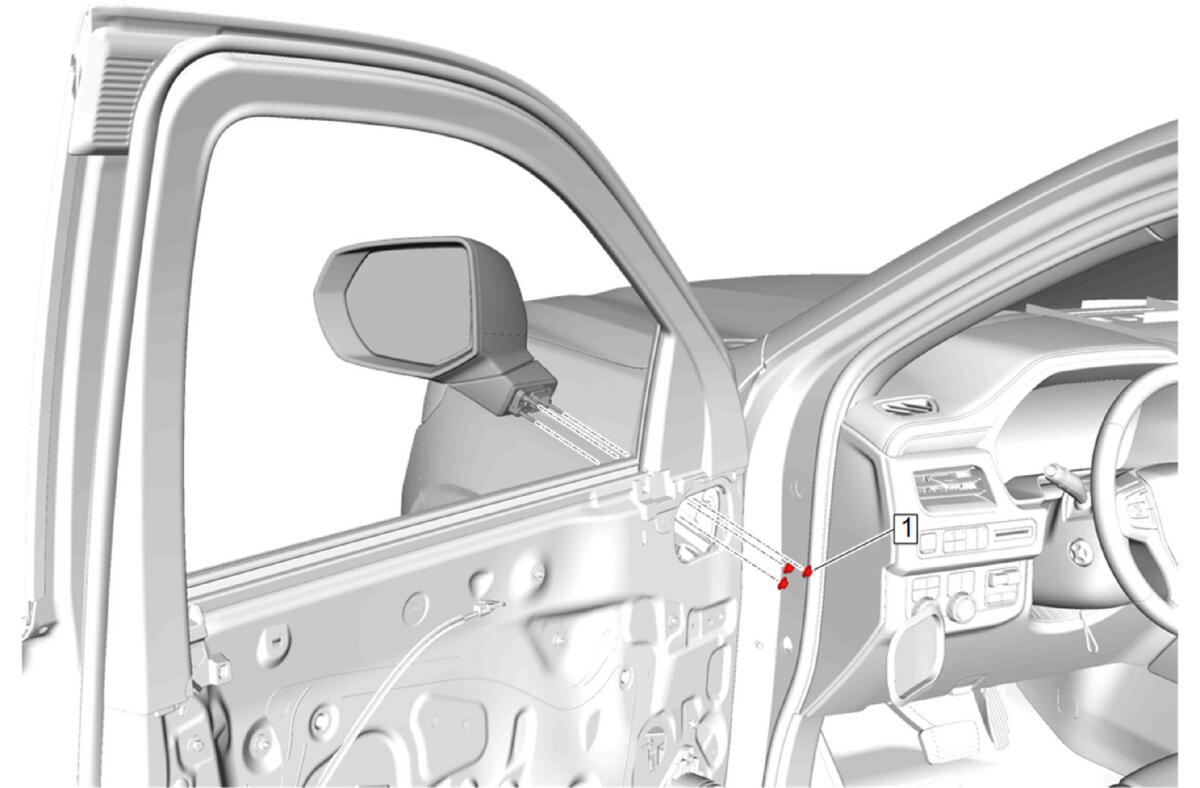

Outside Rearview Mirror Mounting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [3x] | - | - | 9 N.m (80 lb in) | Outside Rearview Mirror Housing Replacement |
