Installation Procedure

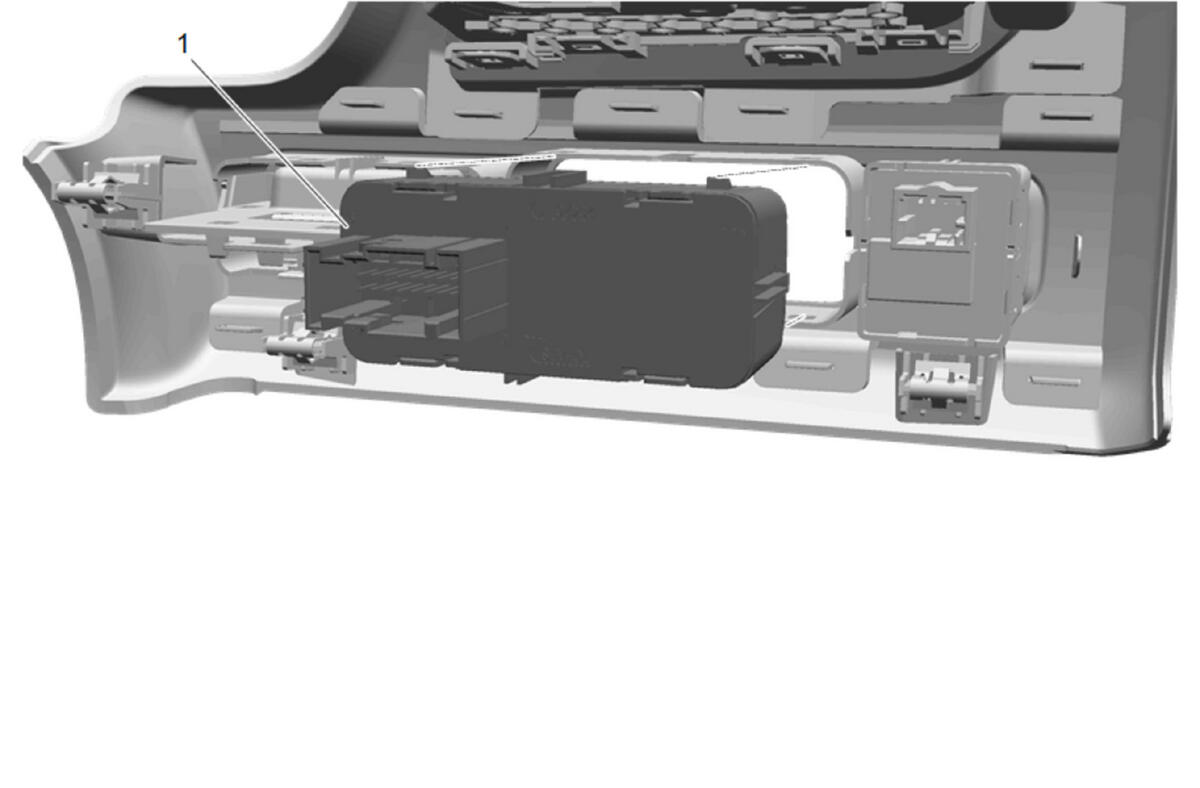

  1. Vehicle Stability Control System Switch (1) @Instrument Panel Trim Pad - Install
    GM5591976Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connectors.
    GM5517141Courtesy of GENERAL MOTORS COMPANY
  3. Instrument Panel Trim Pad (2) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  5. Instrument Panel Trim Plate Applique (1) - Install
    GM5517142Courtesy of GENERAL MOTORS COMPANY
  6. Instrument Panel Fuse Block Access Hole Cover (1) - Install
    GM5517144Courtesy of GENERAL MOTORS COMPANY
  7. Instrument Panel Lower Trim Panel Outer Filler (1) - Install
    GM5515686Courtesy of GENERAL MOTORS COMPANY
