Installation Procedure

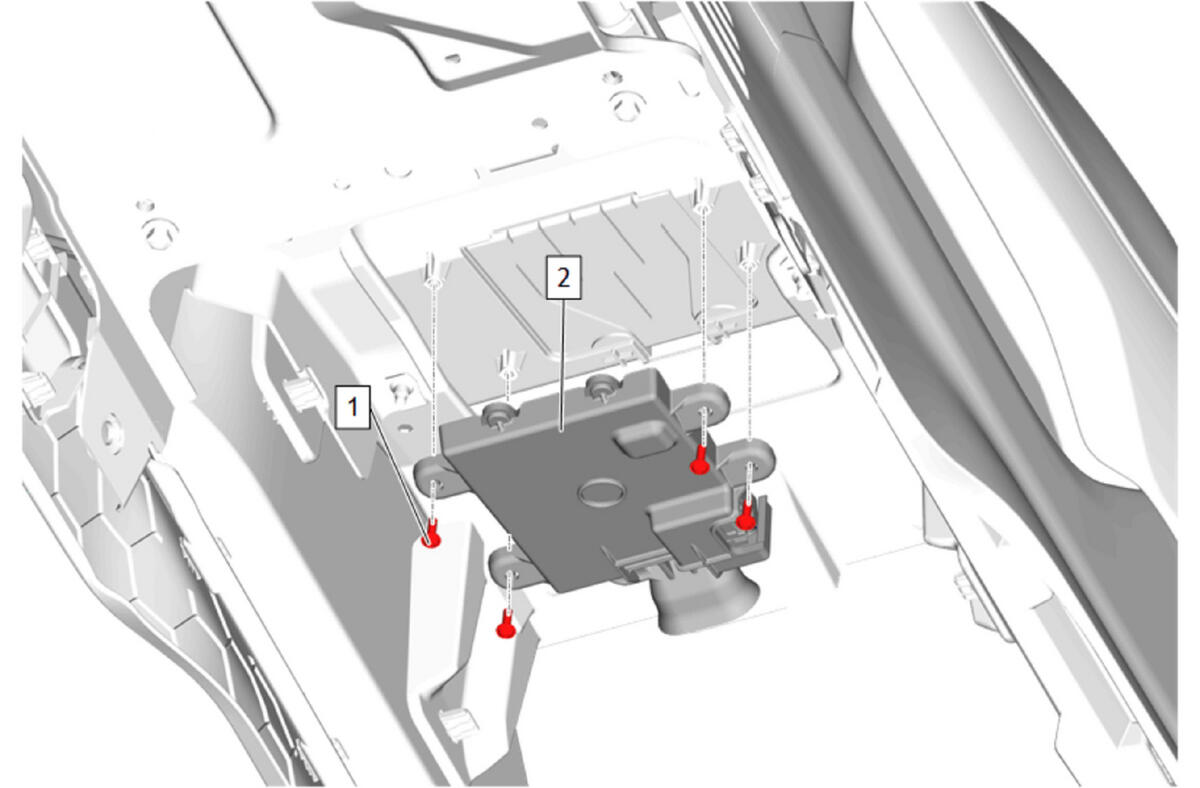

  1. GM5570513Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications

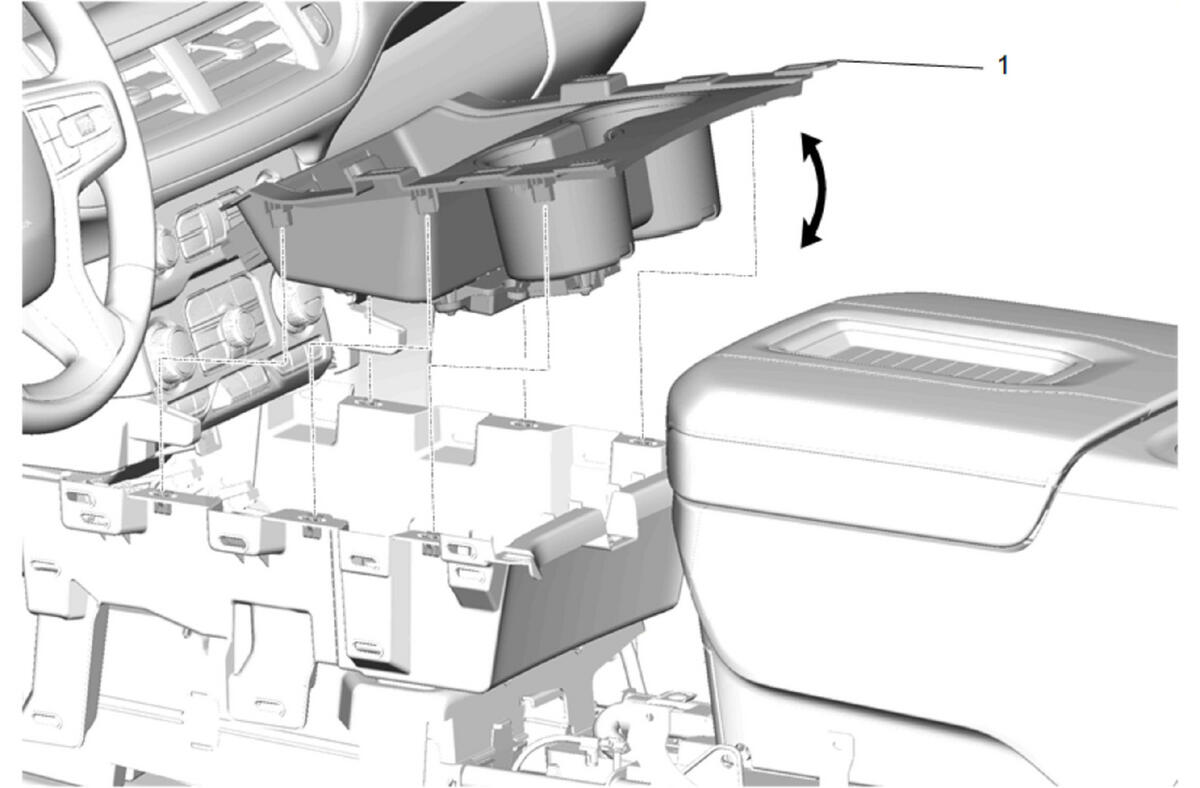

  3. GM5552325Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install

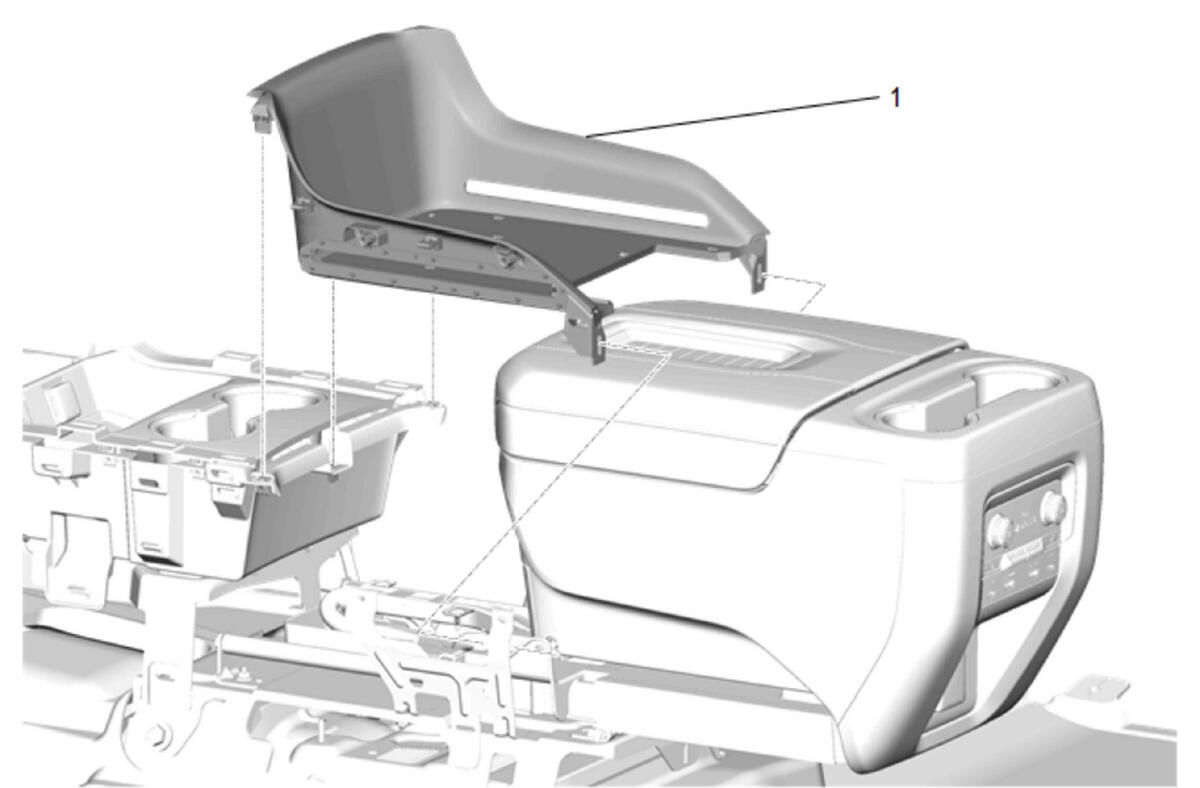

  5. GM5544158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

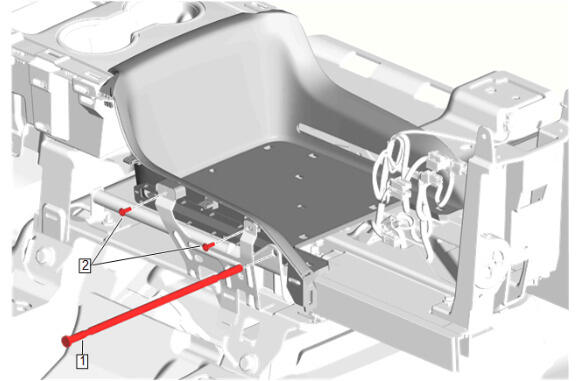

  6. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

    7. CAUTION:

    Refer to Fastener Caution .

  7. Front Floor Console Storage Tray Bolt (2) - Install and tighten [2x] - Fastener Specifications

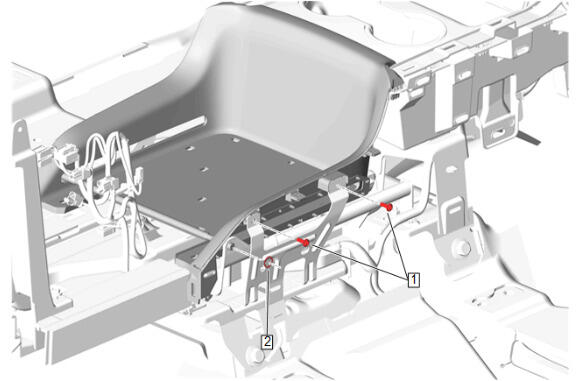

  8. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  9. Front Floor Console Armrest Hinge Clip (2) - Install

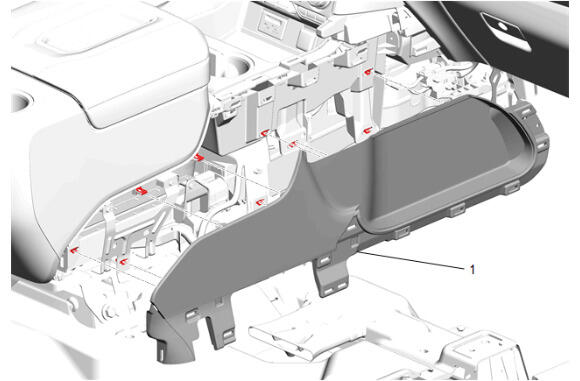

  10. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  11. Front Floor Rear Console Side Trim Panel (1) - Install

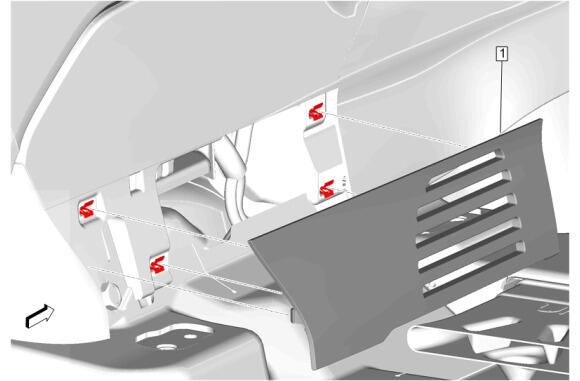

  12. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

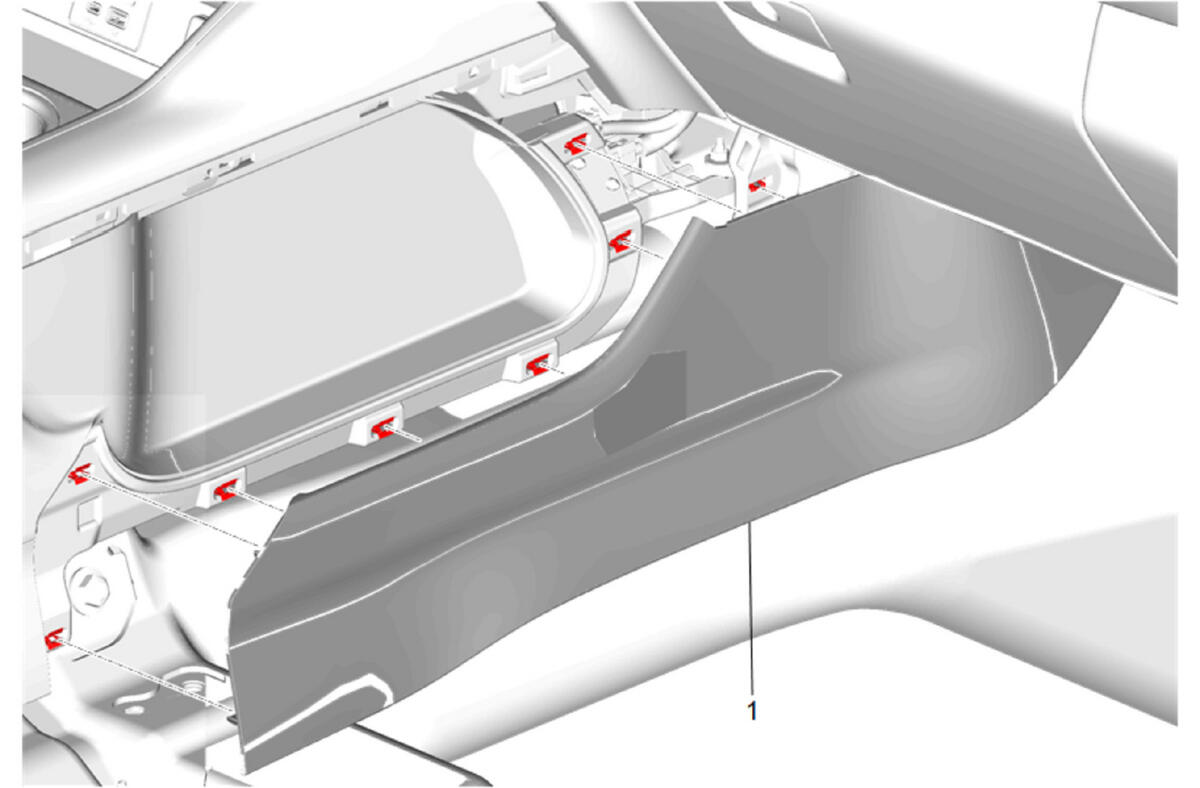

  13. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

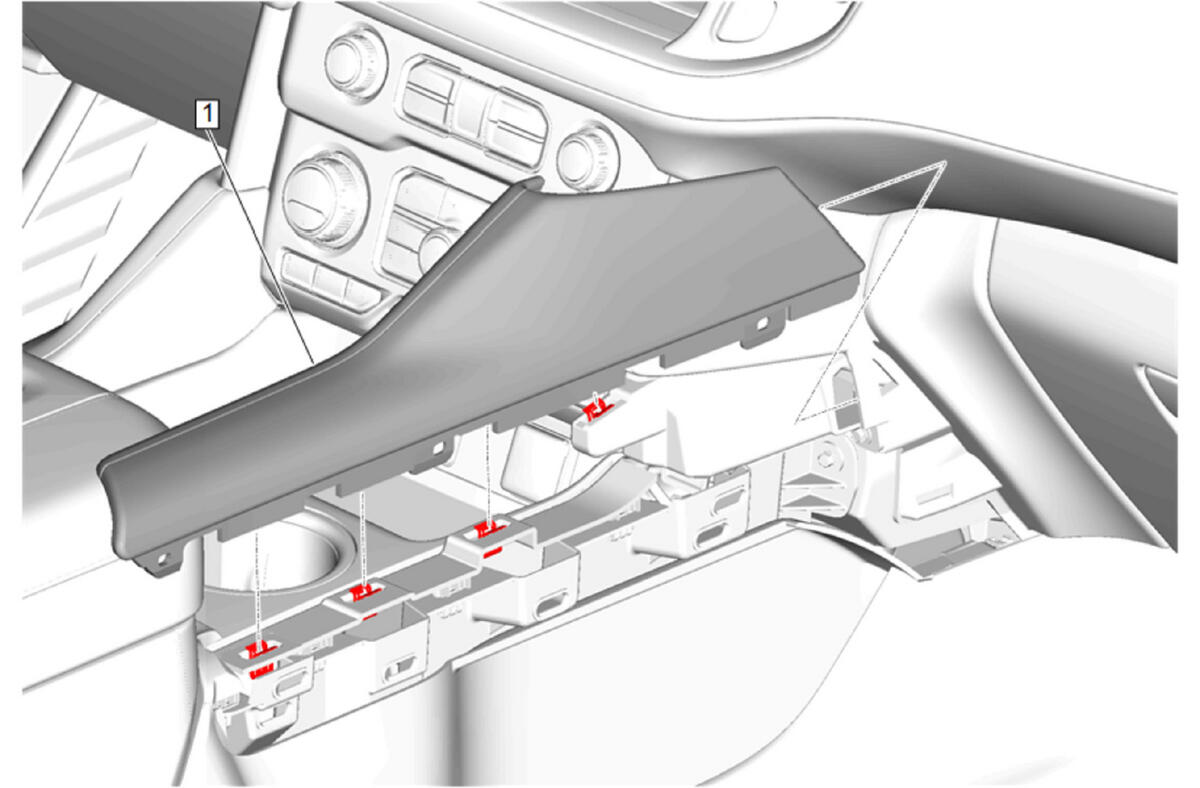

  14. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

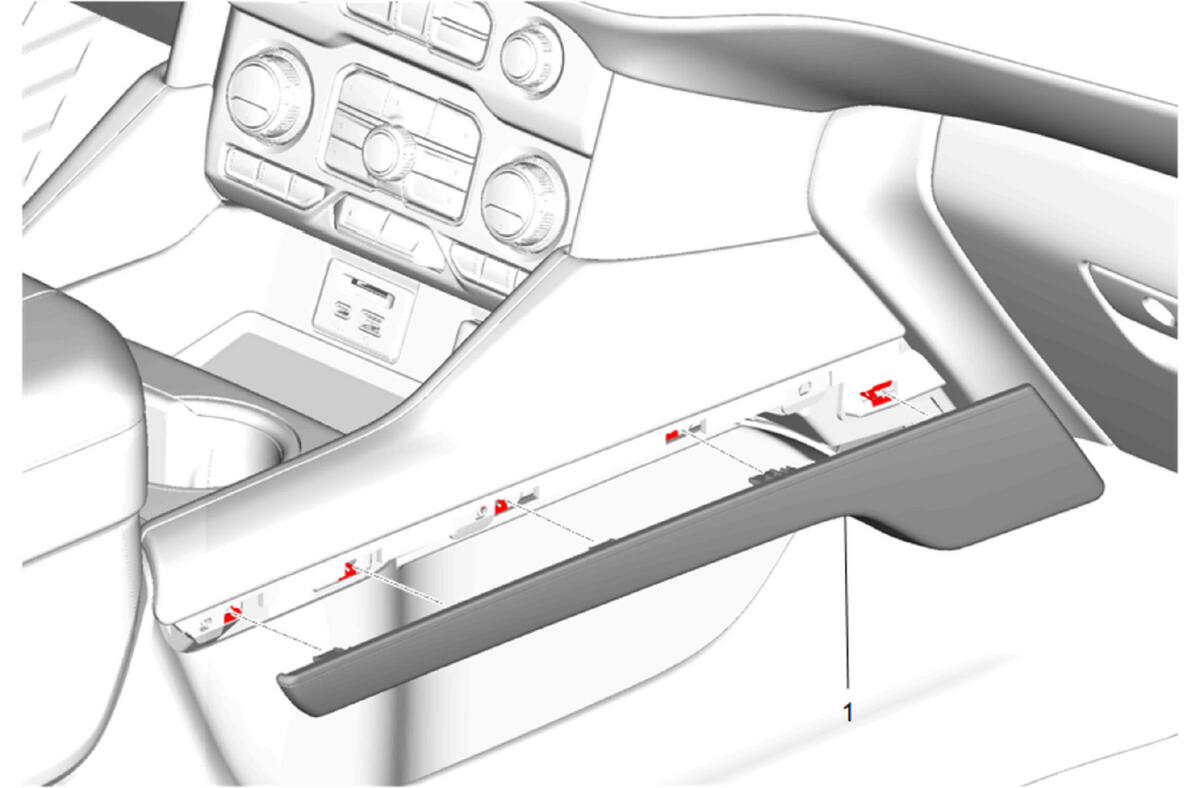

  15. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

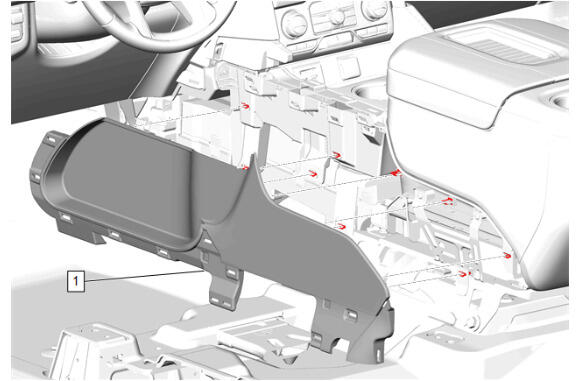

  16. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

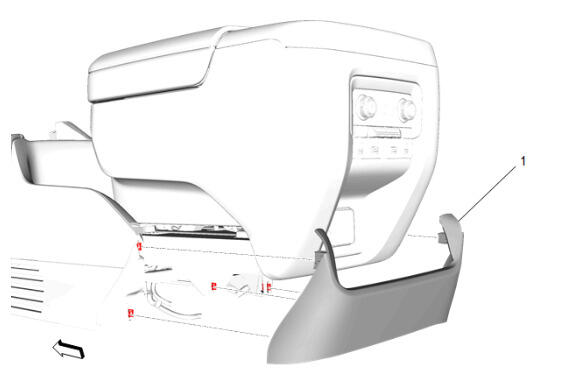

  17. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

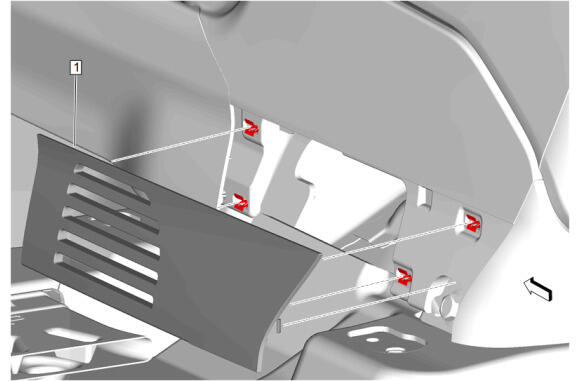

  18. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

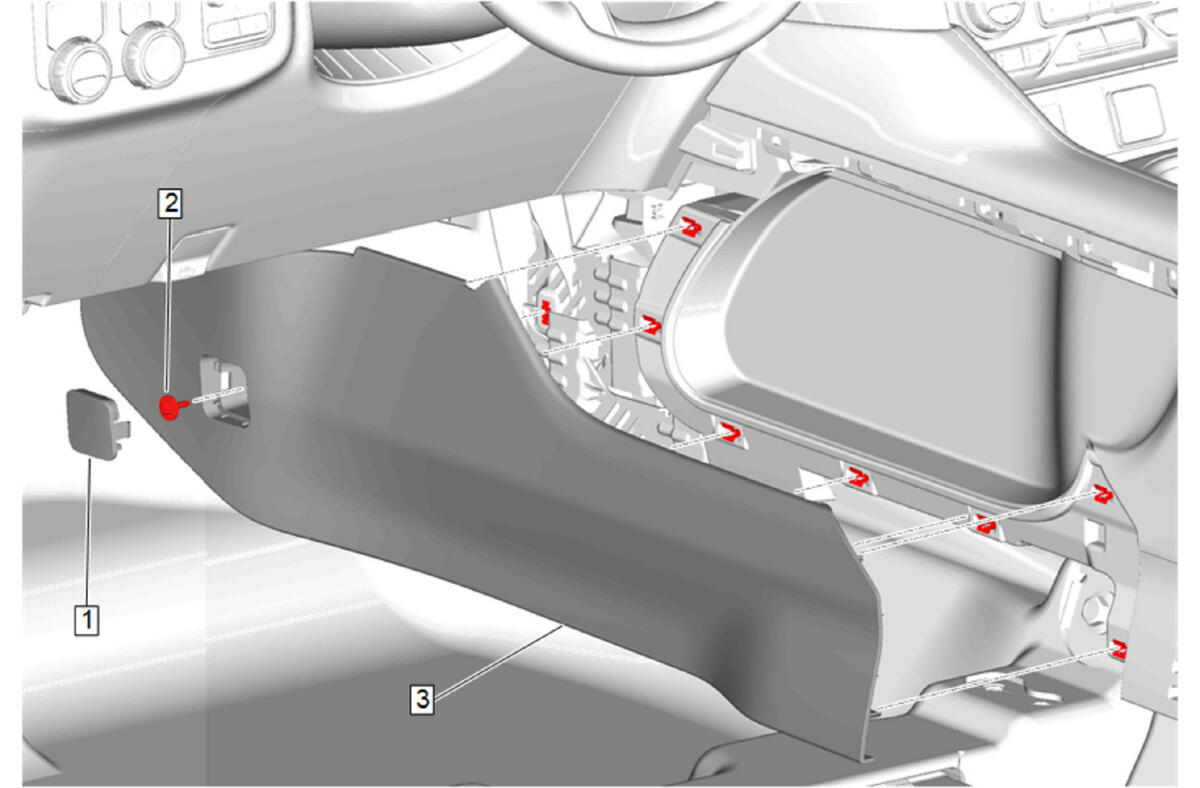

  19. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  20. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  21. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

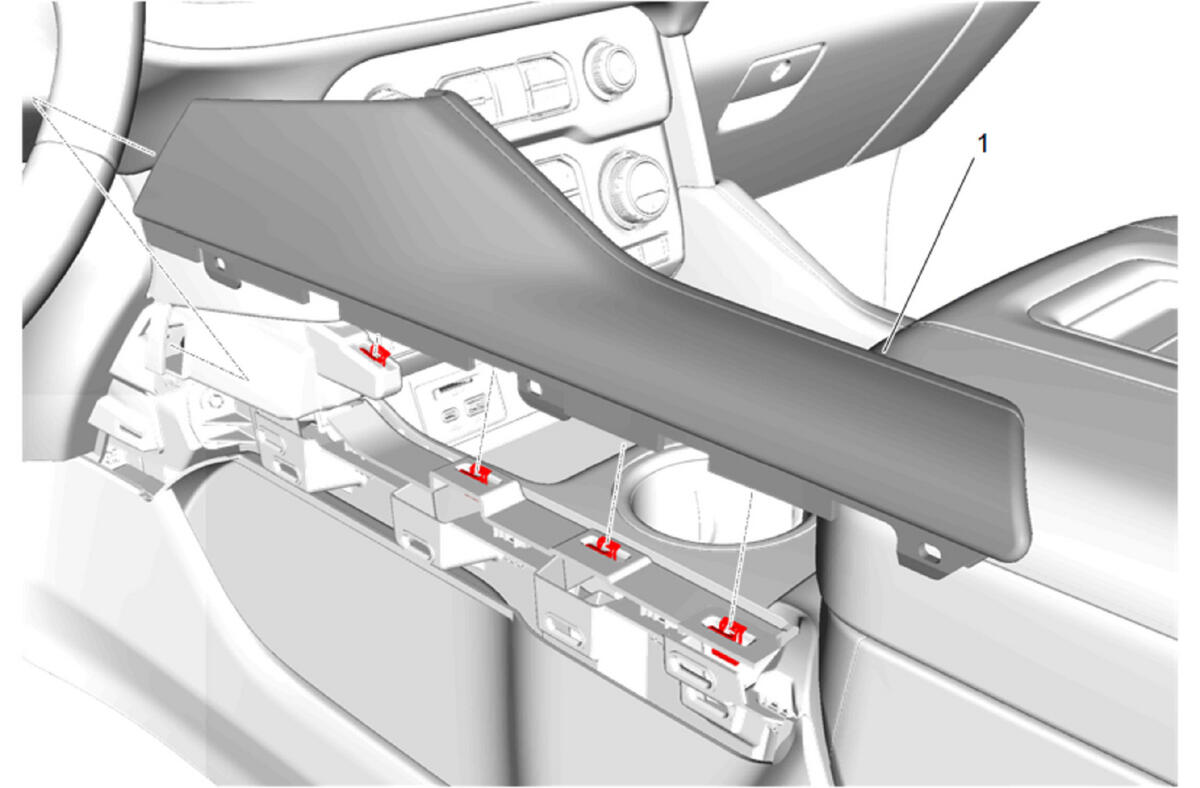

  22. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

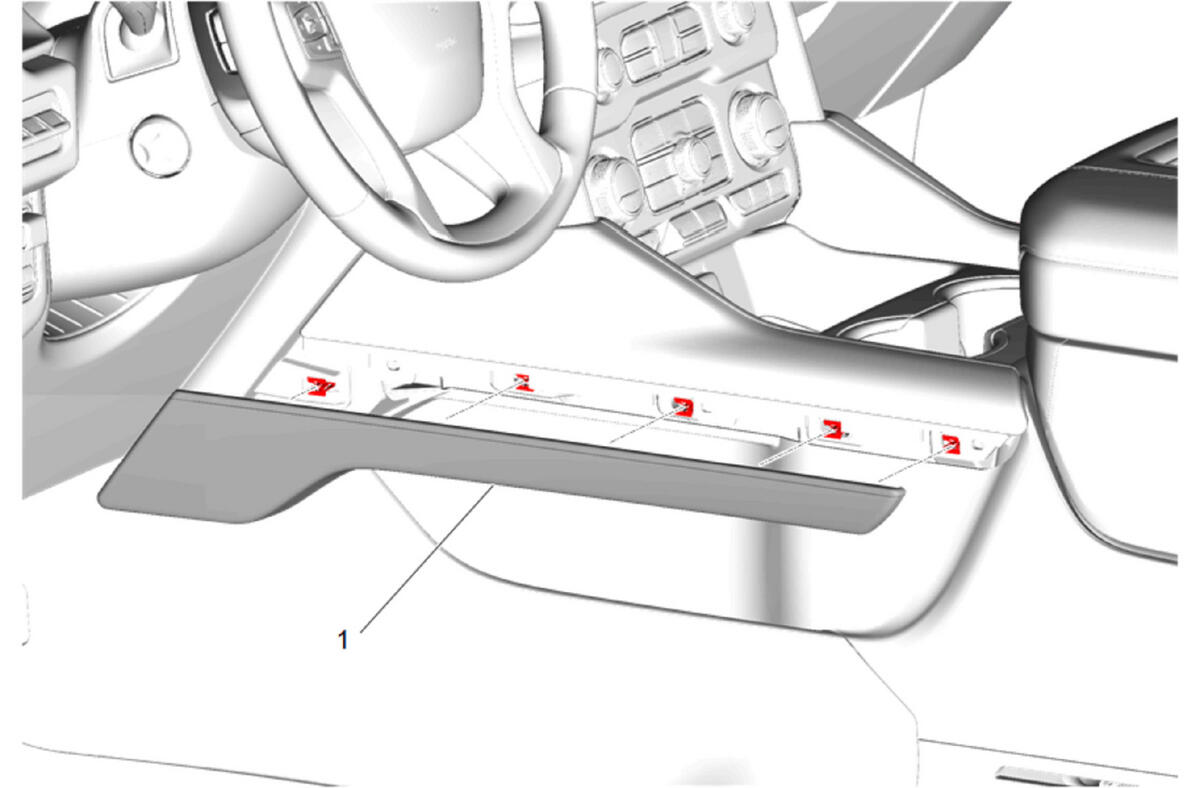

  23. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  24. Return the armrest compartment to the close position.

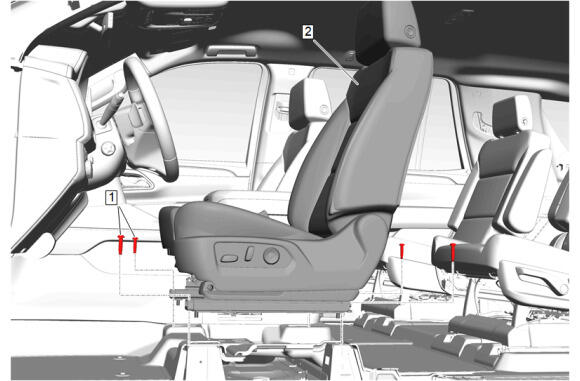

  25. GM5573683Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Seat- Left Side and Right Side (2) - Install [2x] - Front Seat Removal and Installation
