Installation Procedure

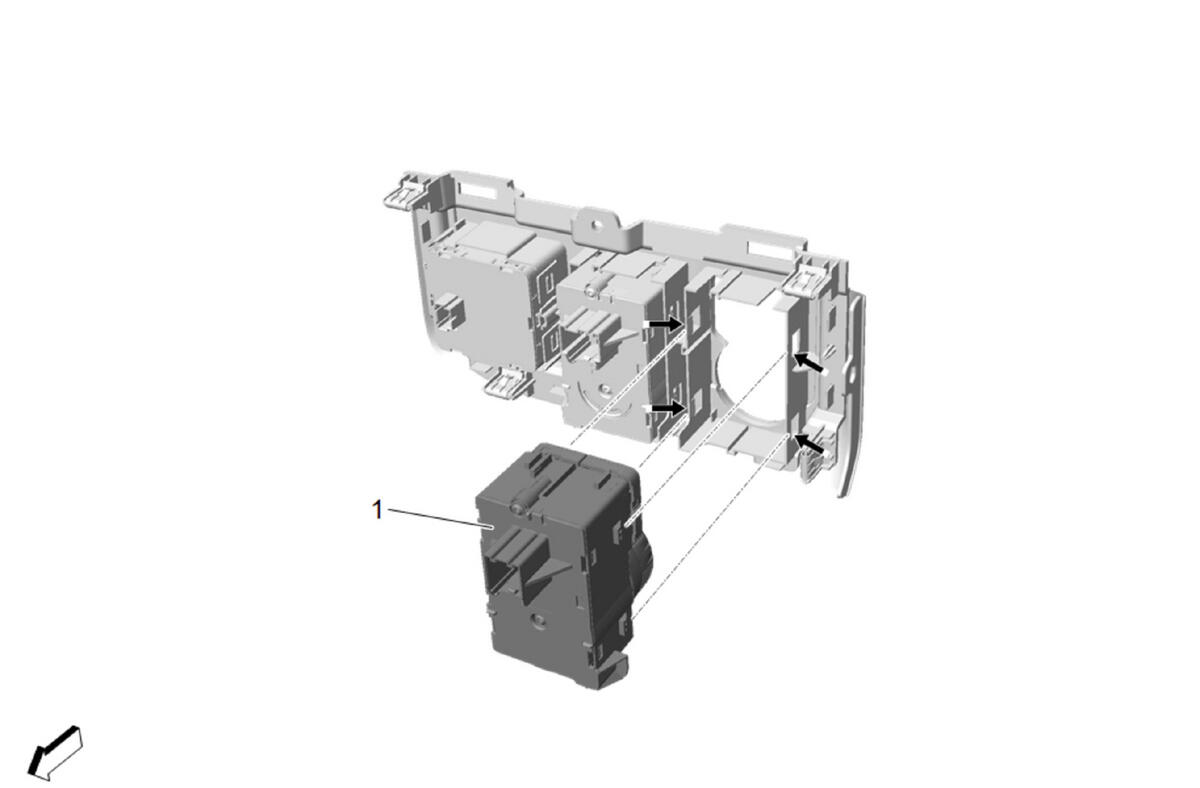

  1. GM5569083Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (1) - Install

  2. Ensure the retaining tabs have fully secured.

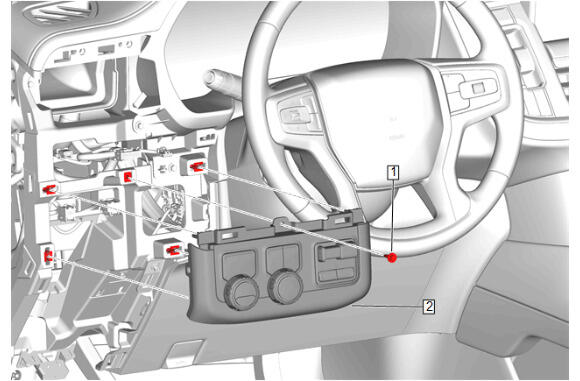

  3. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Instrument Panel Switch Trim Plate (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications

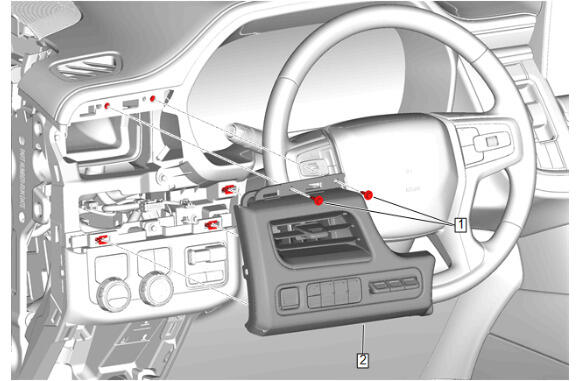

  6. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Instrument Panel Trim Pad (2) - Install
  8. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications

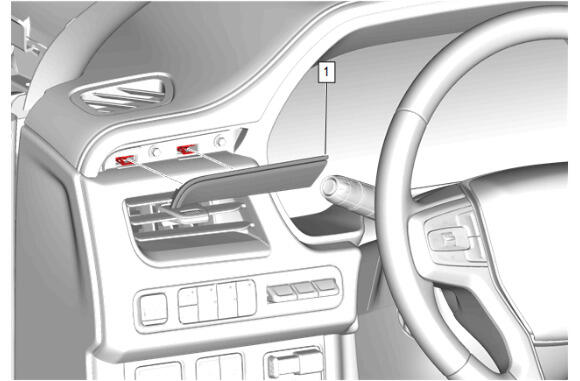

  9. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  10. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

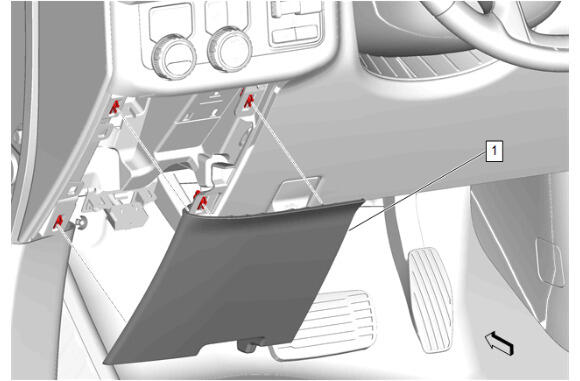

  11. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
