Installation Procedure

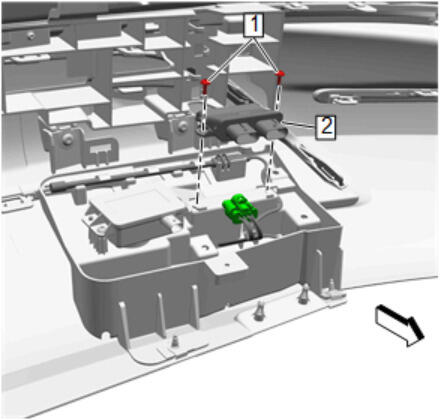

  1. GM5390762Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Fastener Caution

  3. Rear Closure Hands Free Module Screw (1) - Install and tighten [2x] 0.4 N.m (4 lb in)

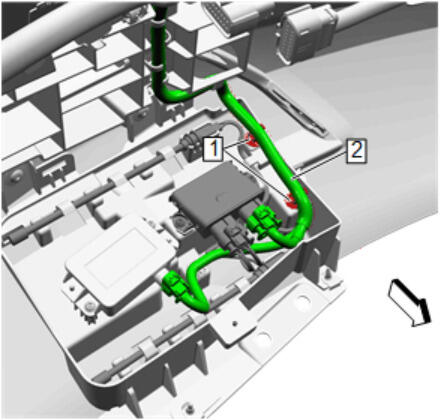

  4. GM5390761Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (2) - Position

  5. Wiring Harness Retainer (1) - Install [2x]

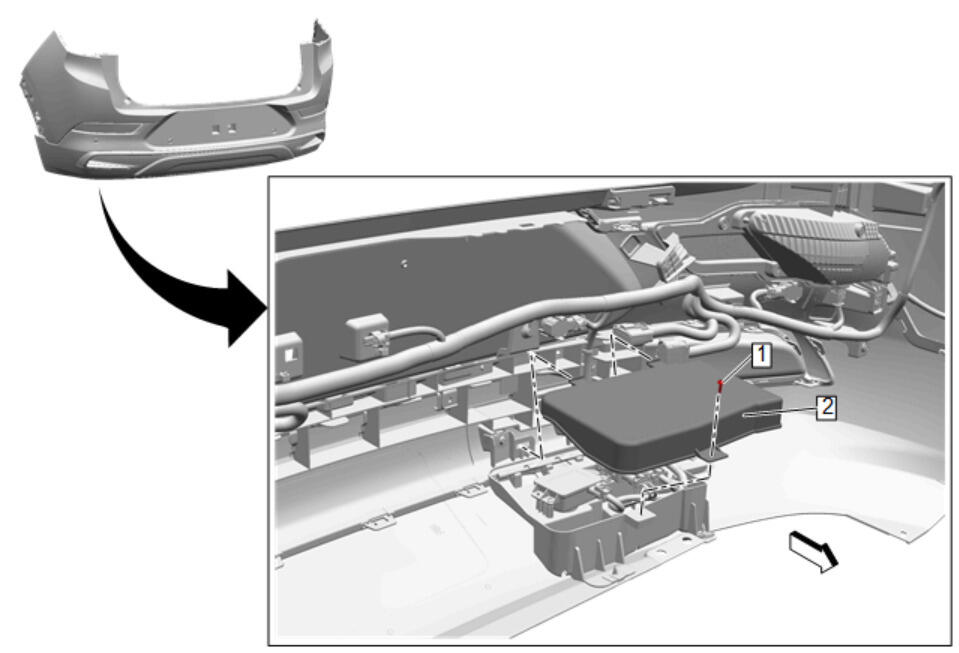

  6. GM5390689Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor Shield (2) - Install - Rear Closure Hands Free Sensor Shield Replacement

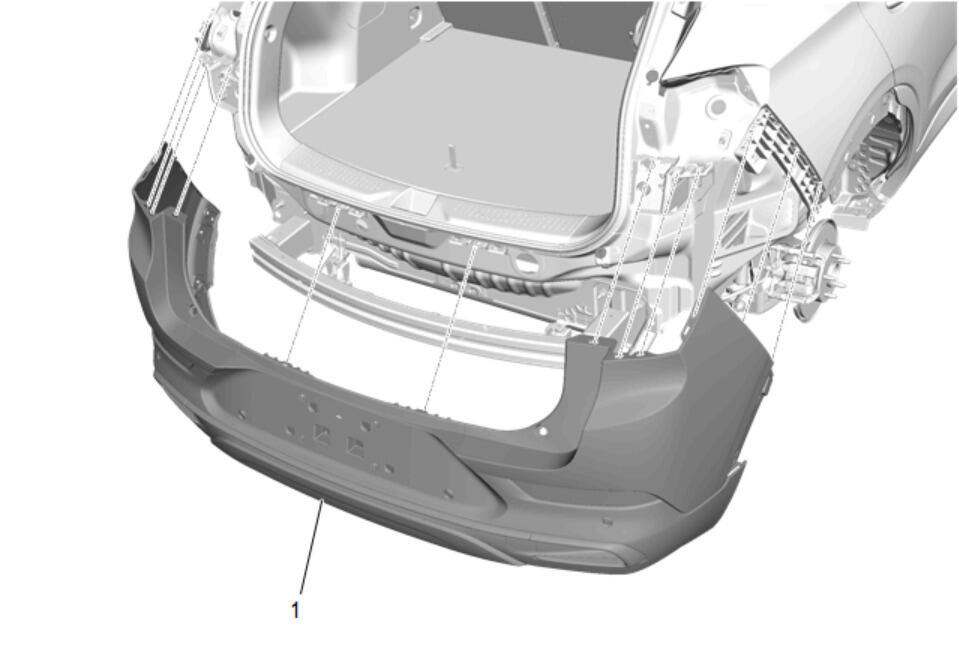

  7. GM5220200Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Replacement

  8. Perform the necessary programming and setup procedure: K39 Liftgate Control Module: Programming and Setup
