Keyless Entry Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Keyless Entry Control Module Bracket Replacement

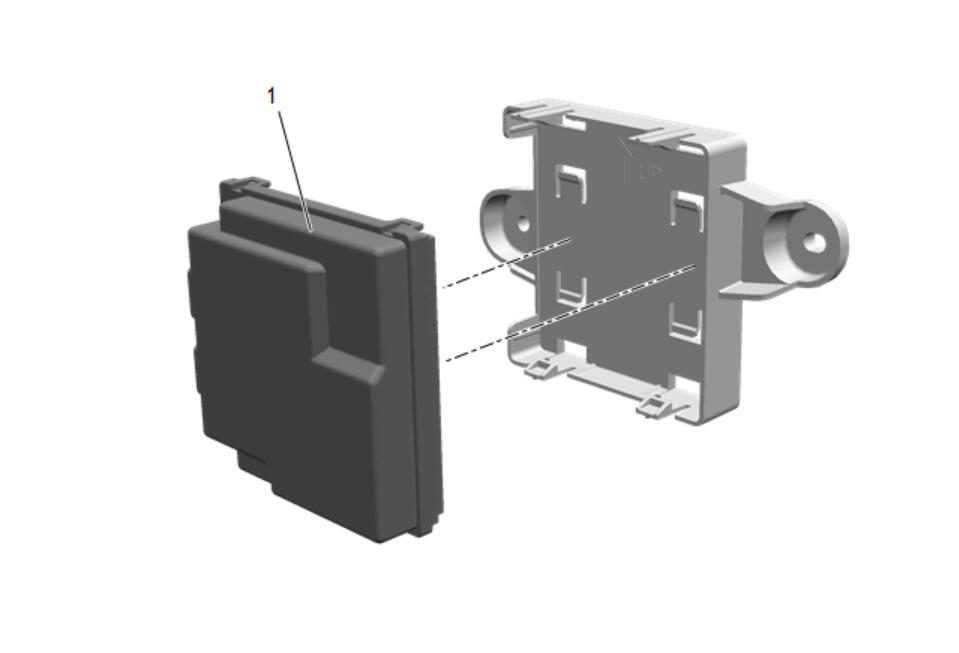

1	Keyless Entry Control Module Procedure Release the retaining tabs. Perform the necessary programming and setup procedure: K84 Keyless Entry Control Module: Programming and Setup

Callout

Component Name

Keyless Entry Control Module

Procedure

Release the retaining tabs.
Perform the necessary programming and setup procedure: K84 Keyless Entry Control Module: Programming and Setup
