Installation Procedure

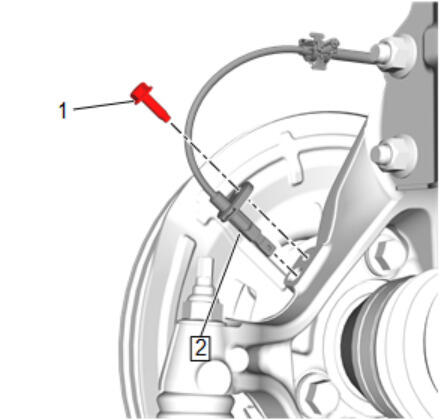

  1. GM5210501Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (2) @ Steering Knuckle - Install

    2. CAUTION:

    Fastener Caution

  2. Front Wheel Speed Sensor Bolt (1) @ Steering Knuckle - Install and tighten 9 N.m (80 lb in)

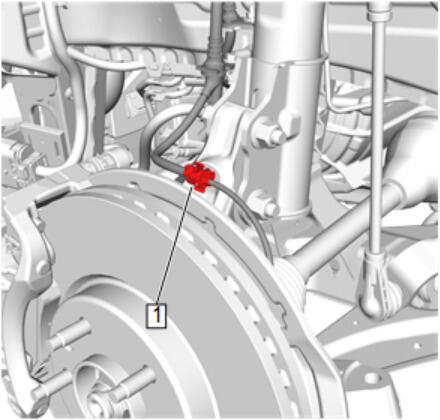

  3. GM5210500Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Wiring Harness (1) @ Steering Knuckle - Install

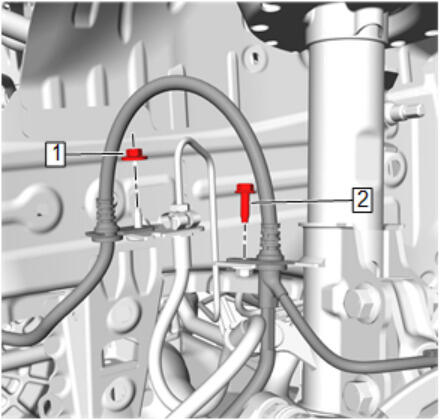

  4. GM5210499Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Wire Bracket Bolt (2) @ Front Suspension Strut - Install and tighten 9 N.m (80 lb in)

  5. Wheel Speed Sensor Bracket Nut (1) @ Front Brake Hose Bracket - Install and tighten 9 N.m (80 lb in)

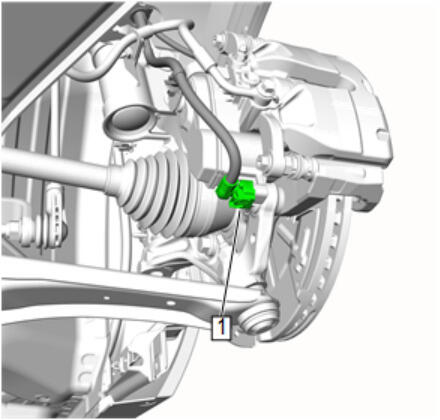

  6. GM5210498Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Park Brake Actuator - Connect

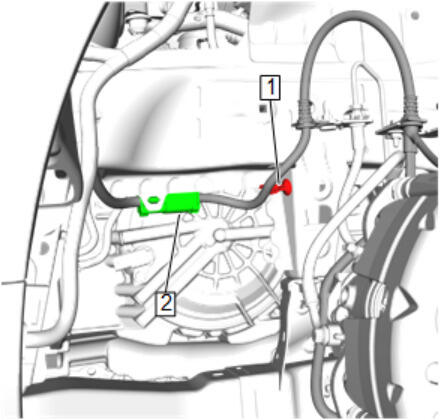

  7. GM5210497Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) @ Body Wiring Harness - Connect

  8. Front Wheel Speed Sensor Wiring Harness (1) @ Body Front Suspension Support - Install

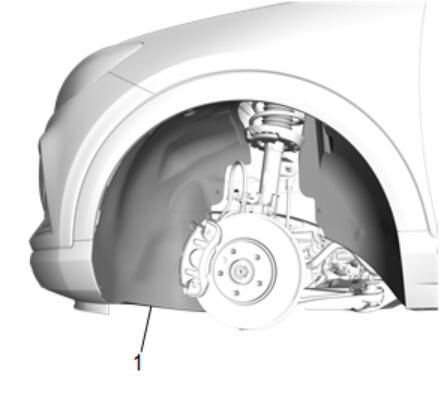

  9. GM5210496Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (1) - Install - Front Wheelhouse Liner Replacement

  10. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  11. Lower the vehicle.
