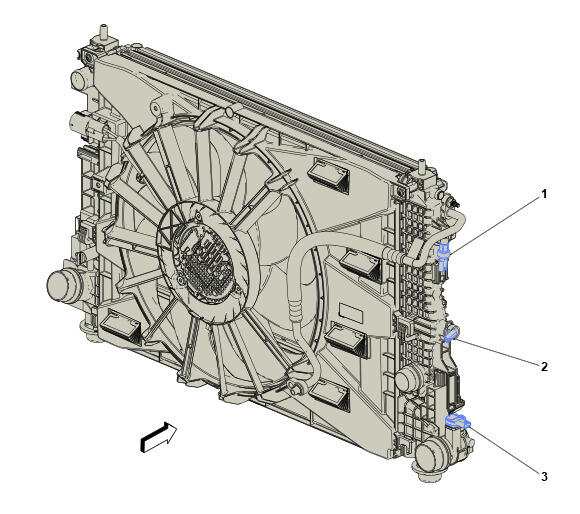

Radiator/Condenser Components
Radiator/Condenser Components
| Component Name | Callout |
|---|---|
| B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor | 1 |
| B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor | 2 |
| B111 Turbocharger Boost Sensor B111 Turbocharger Boost Sensor | 3 |
