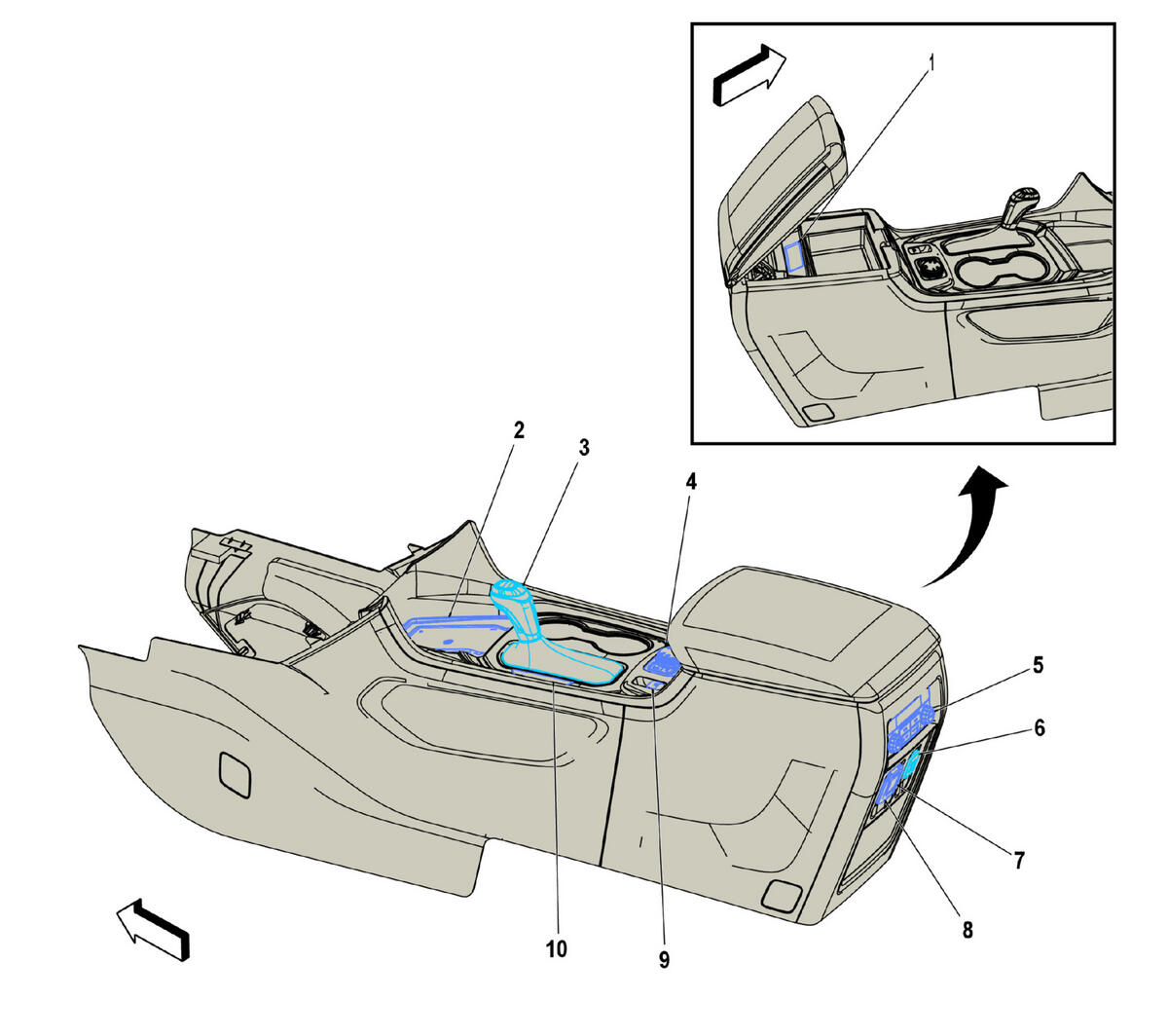

Center Console Components
Center Console Components
| Component Name | Callout |
|---|---|
| E27 Instrument Panel Compartment Lamp (X88) E27 Instrument Panel Compartment Lamp | 1 |
| T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C) | 2 |
| S3 Transmission Shift Lever S3 Transmission Shift Lever | 3 |
| S126 Drive Mode Select Switch (X88) S126 Drive Mode Select Switch | 4 |
| A34 HVAC Controls - Auxiliary A34 HVAC Controls - Auxiliary | 5 |
| X92C USB Receptacle - Center Console Rear X92C USB Receptacle - Center Console Rear | 6 |
| X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6) , or X81 Accessory Power Receptacle - 110V AC X2 (KI6) | 7 |
| X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7) , or X81B Accessory Power Receptacle - 220V AC X2 (KI7) | 8 |
| B80 Park Brake Switch B80 Park Brake Switch | 9 |
| P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator | 10 |
