Left Footwell Components

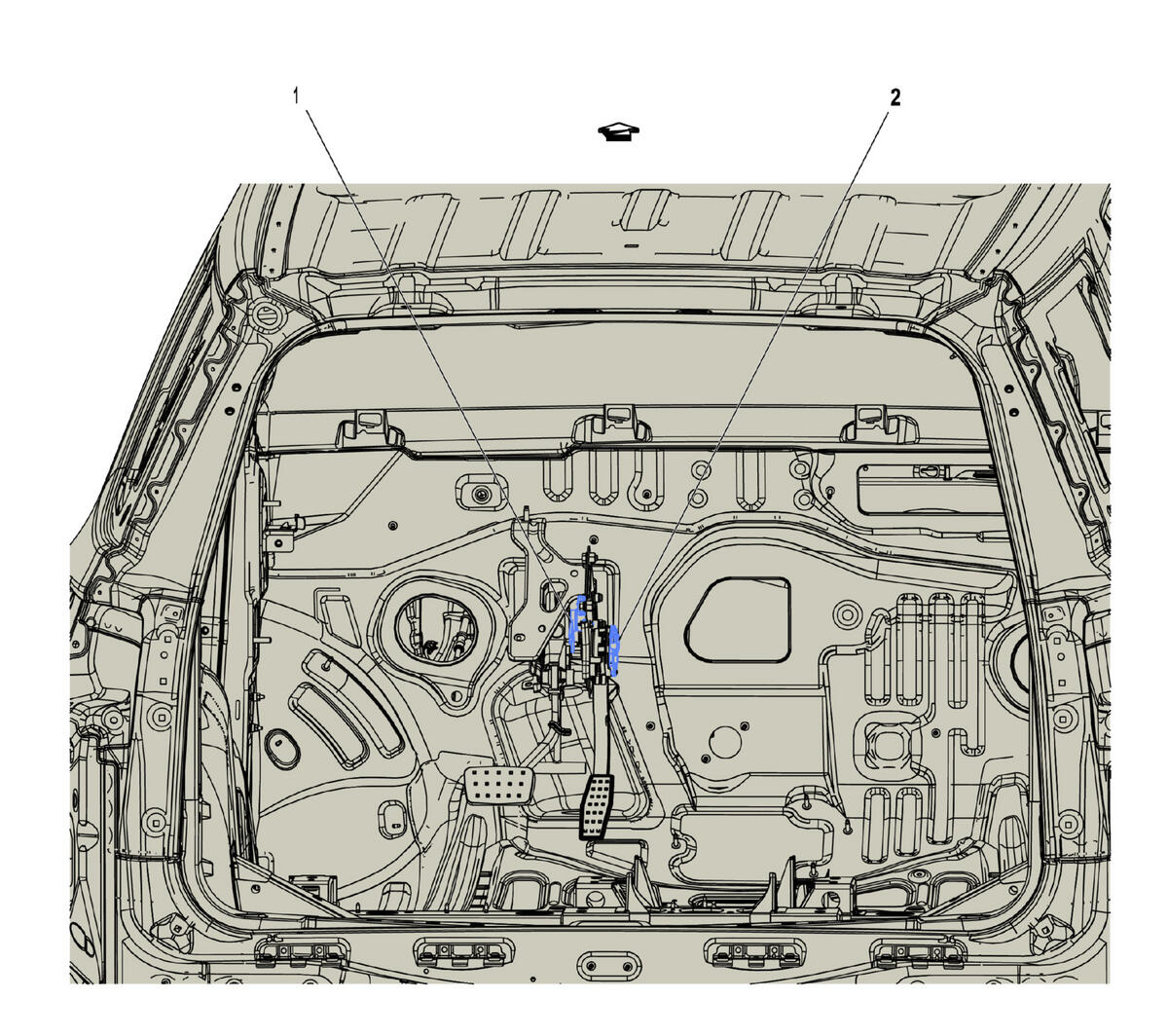

GM5701904Courtesy of GENERAL MOTORS COMPANY
Left Footwell Components

Component Name Callout
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor 1
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor 2
