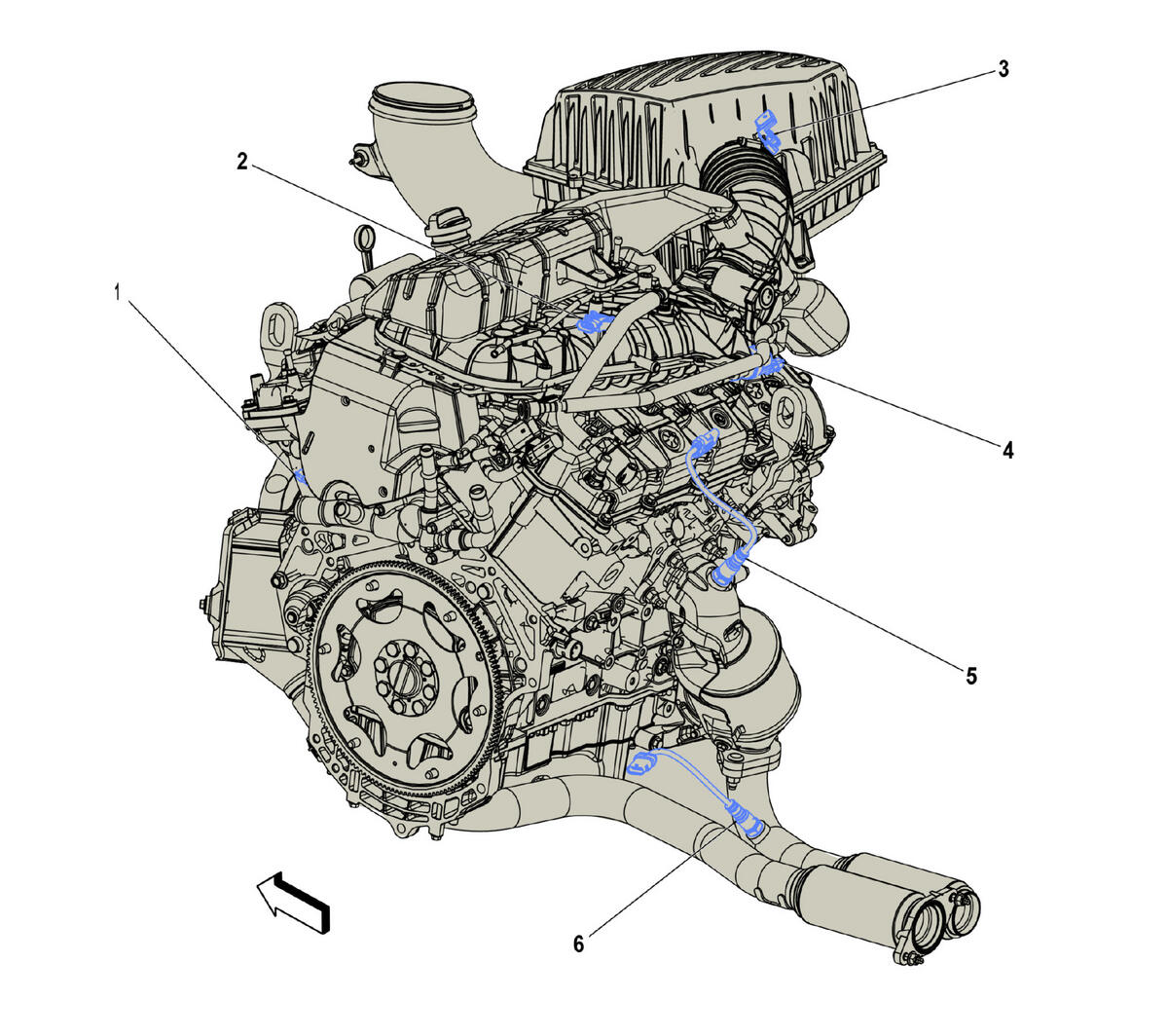

Rear of Engine Components
Rear of Engine Components
| Component Name | Callout |
|---|---|
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump | 1 |
| B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor | 2 |
| B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor | 3 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 4 |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 | 5 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (-F48) , or B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (F48) | 6 |
