Installation Procedure

  1. GM4772992Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel (1) to the instrument panel tie bar and the locator pins.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).
  3. GM4772991Courtesy of GENERAL MOTORS COMPANY

    Make sure the locator studs (1) and tie bar bracket tabs (2) are seated.

  4. GM4772990Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Airbag Bolt (1) - Install and tighten 9 N.m (80 lb in)

  5. Connect the instrument panel airbag electrical connector to the instrument panel harness. (2)
  6. GM4772989Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 2x ] 9 N.m (80 lb in)

  7. GM4772988Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 6x ] 2.5 N.m (22 lb in)

  8. GM4772987Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 5x ] 2.5 N.m (22 lb in)

  9. GM4772986Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 5x ] 2.5 N.m (22 lb in)

  10. GM4772985Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 5x ] 2.5 N.m (22 lb in)

  11. GM4769752Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

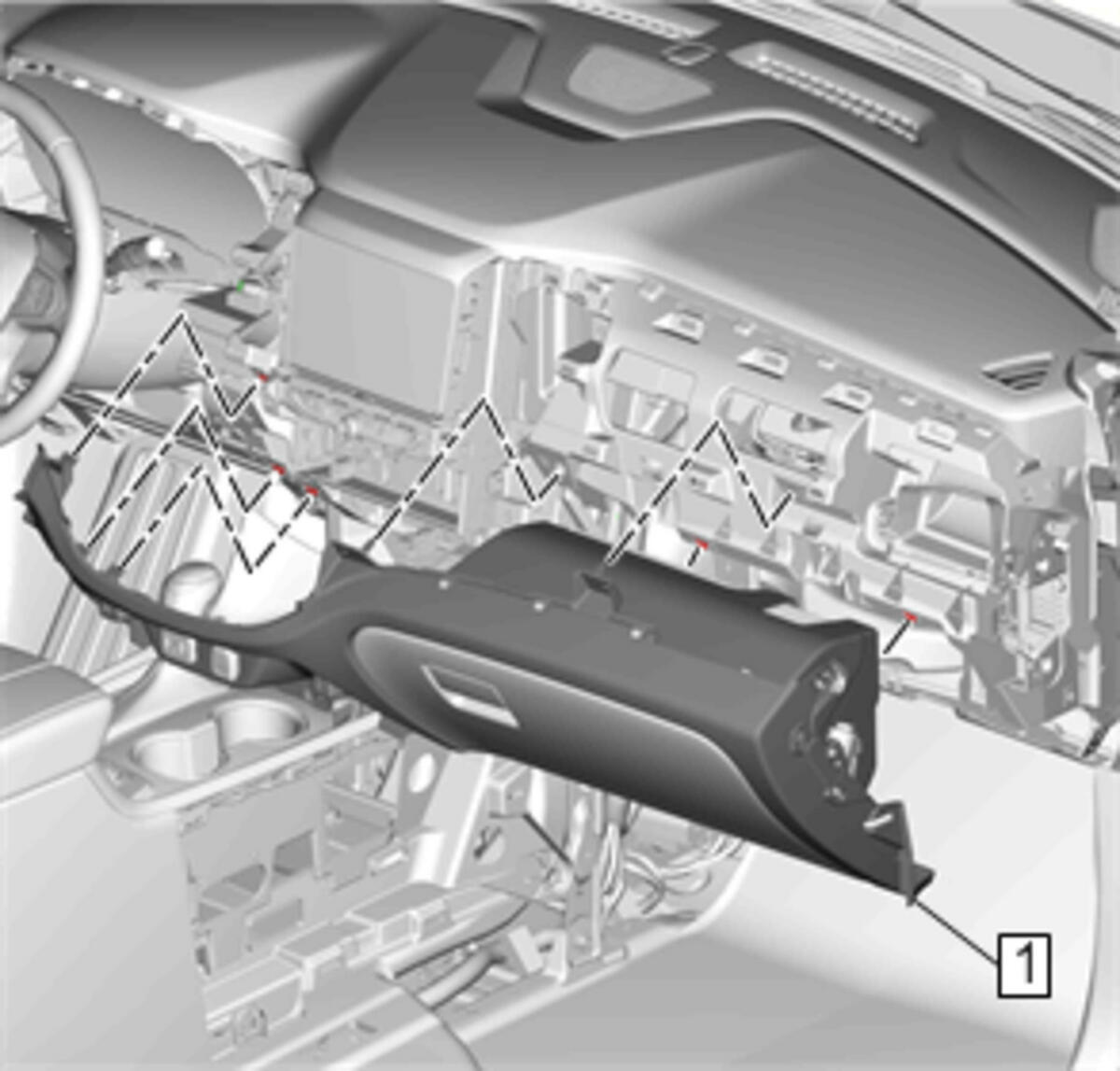

  12. GM4762667Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Opening Frame (1) - Install - Instrument Panel Compartment Door Opening Frame Replacement

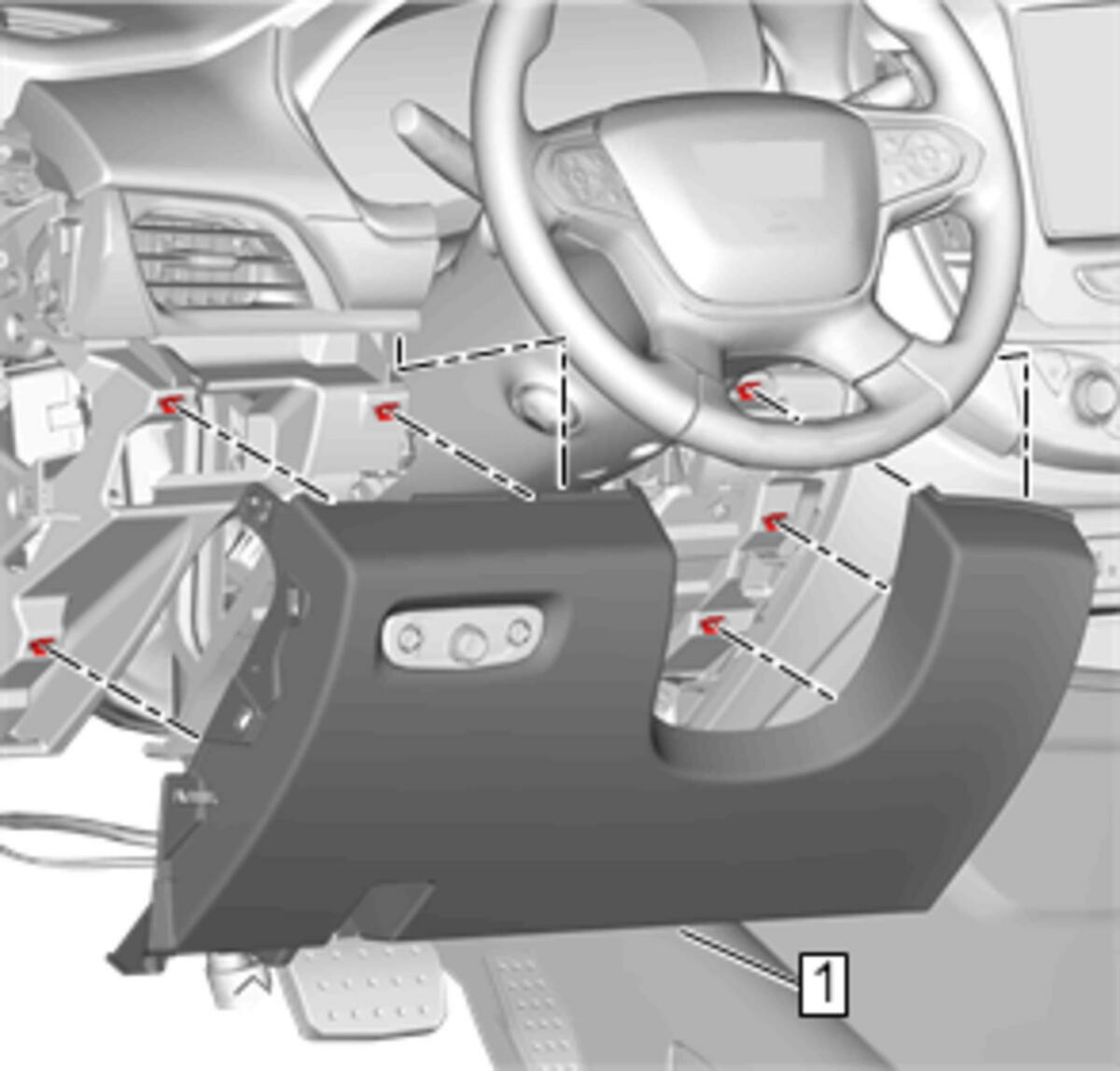

  13. GM4756534Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

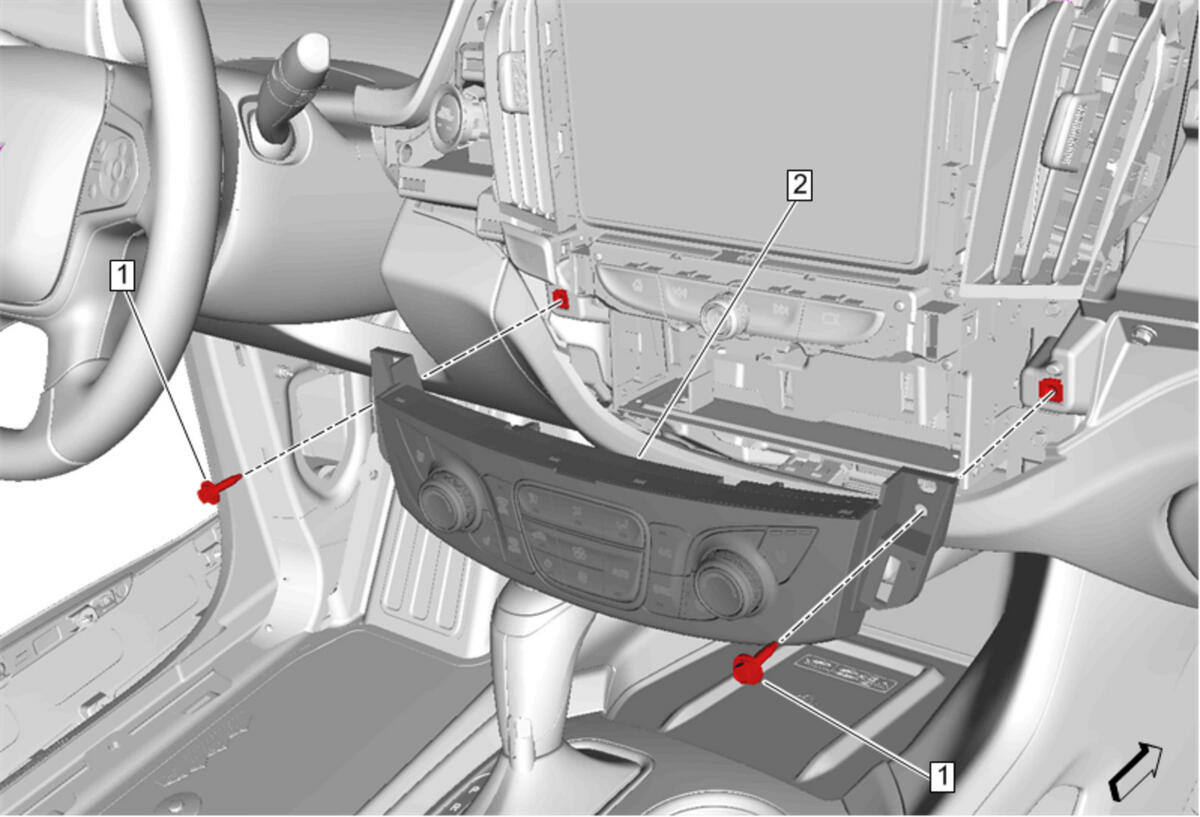

  14. GM4738614Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement

  15. Instrument Panel Radio Front Trim Plate - Install - Instrument Panel Radio Front Trim Plate Replacement (IOR) , or Instrument Panel Radio Front Trim Plate Replacement (IOS, IOT)
  16. GM4756846Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  17. GM4755737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side

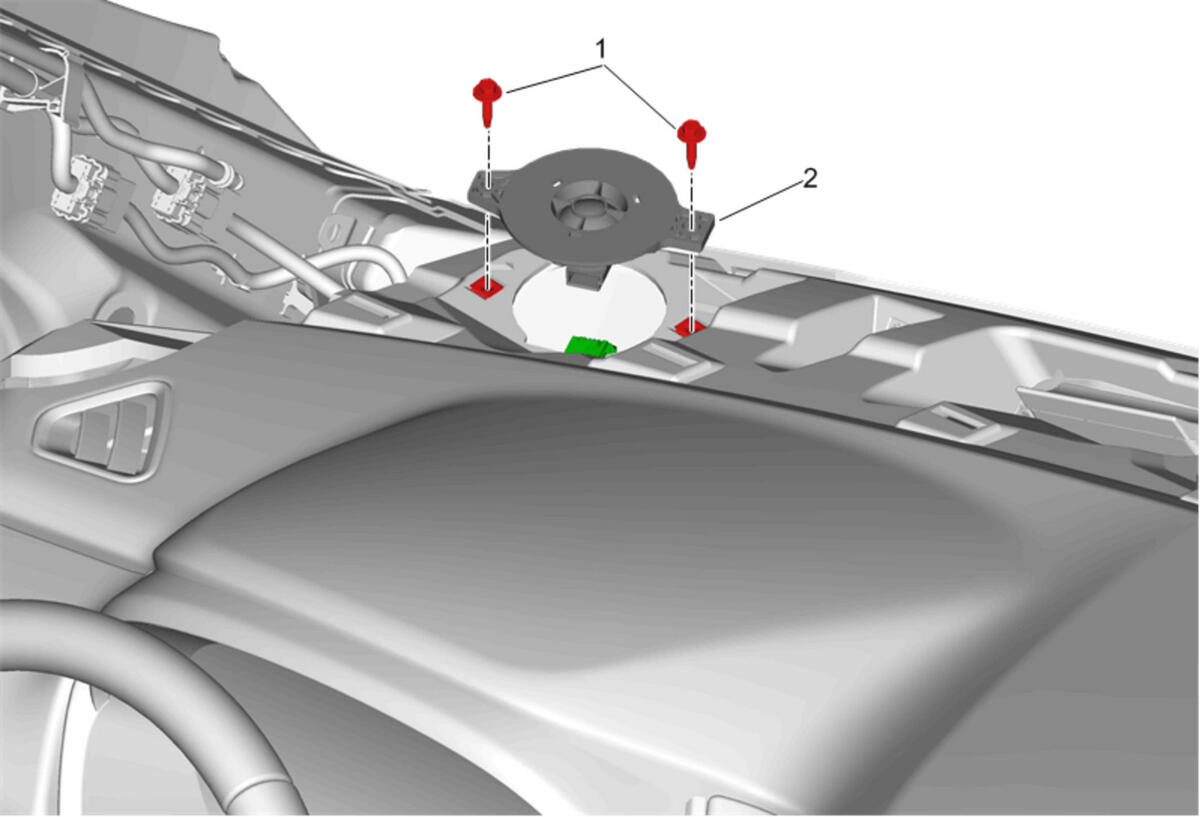

  18. GM4747552Courtesy of GENERAL MOTORS COMPANY

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement

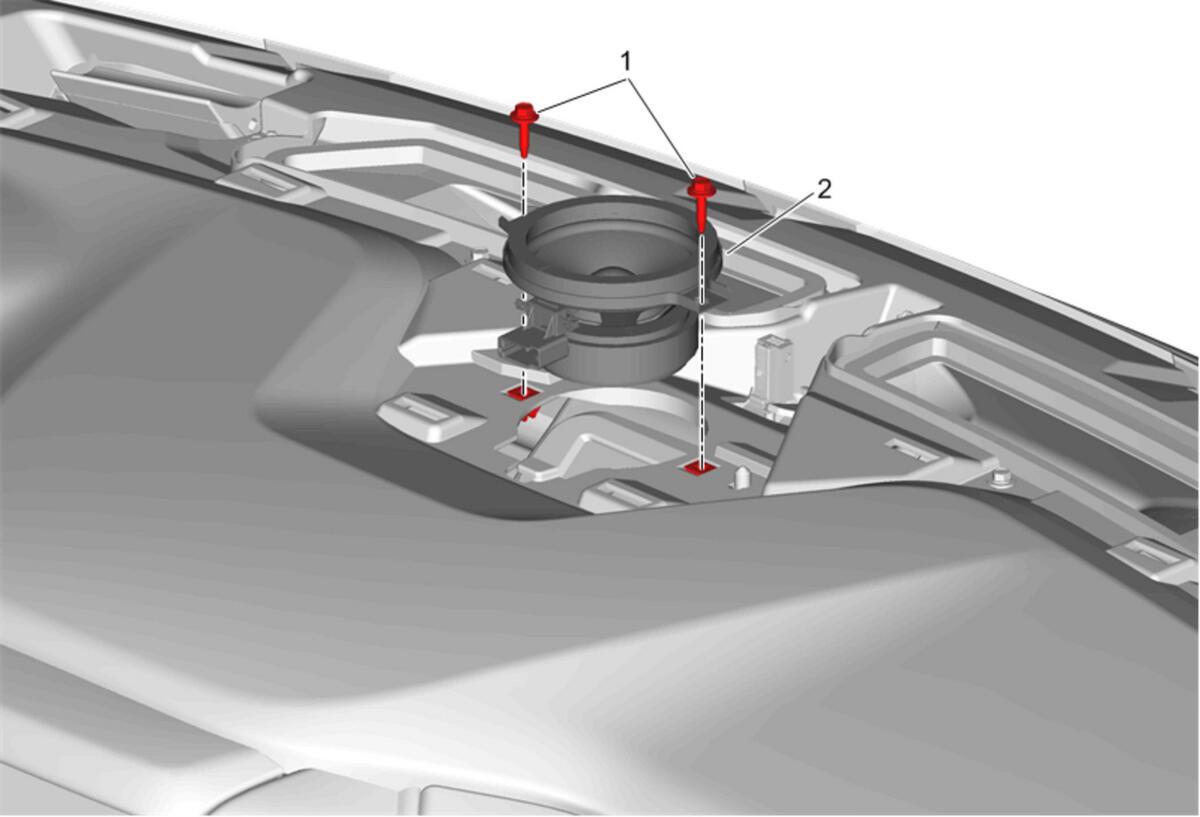

  19. GM4748420Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement

  20. GM4754904Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

  21. GM4755004Courtesy of GENERAL MOTORS COMPANY

    Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement

  22. Install the left and right windshield garnish molding. Windshield Garnish Molding Replacement

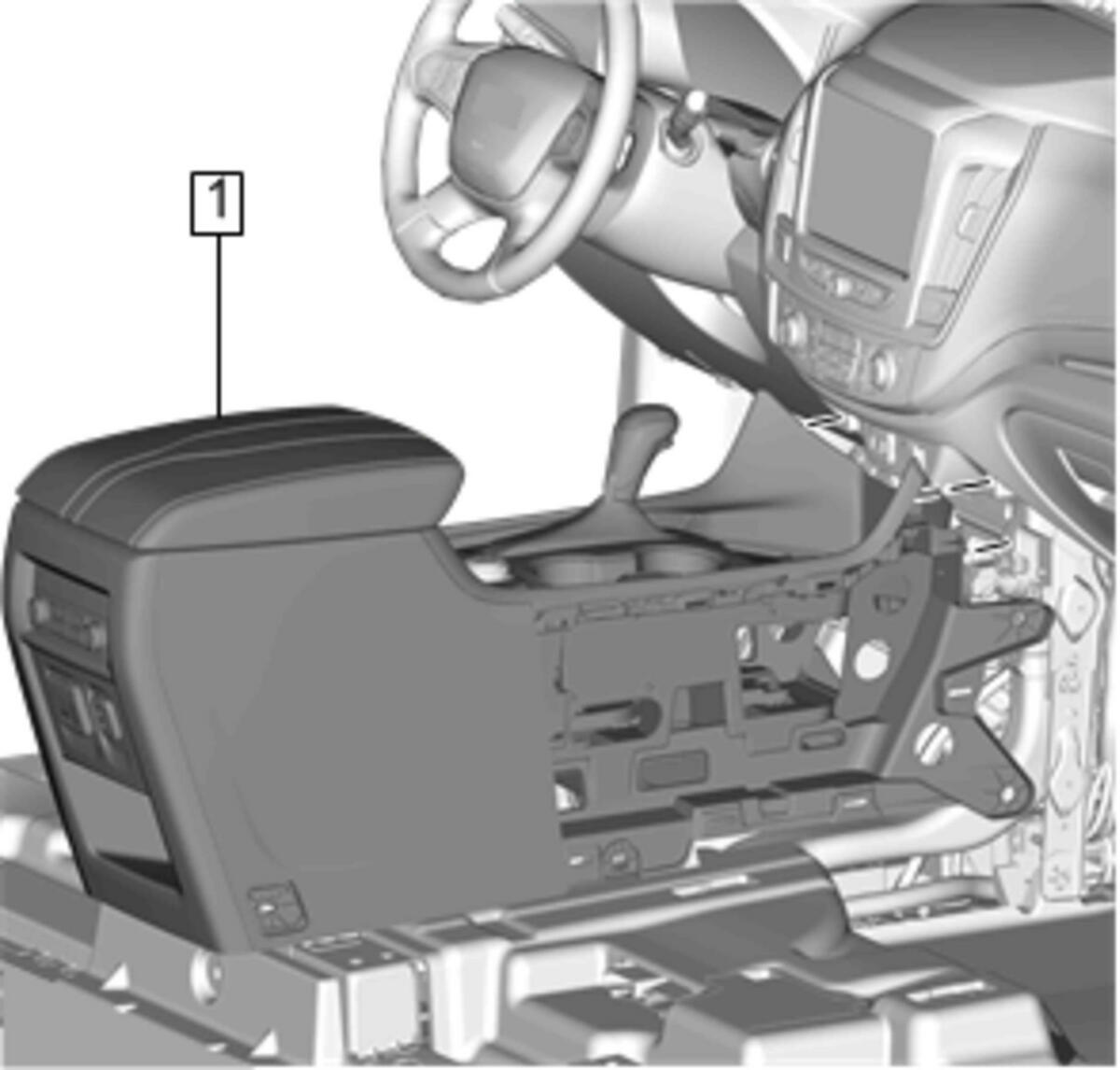

  23. GM4754378Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement

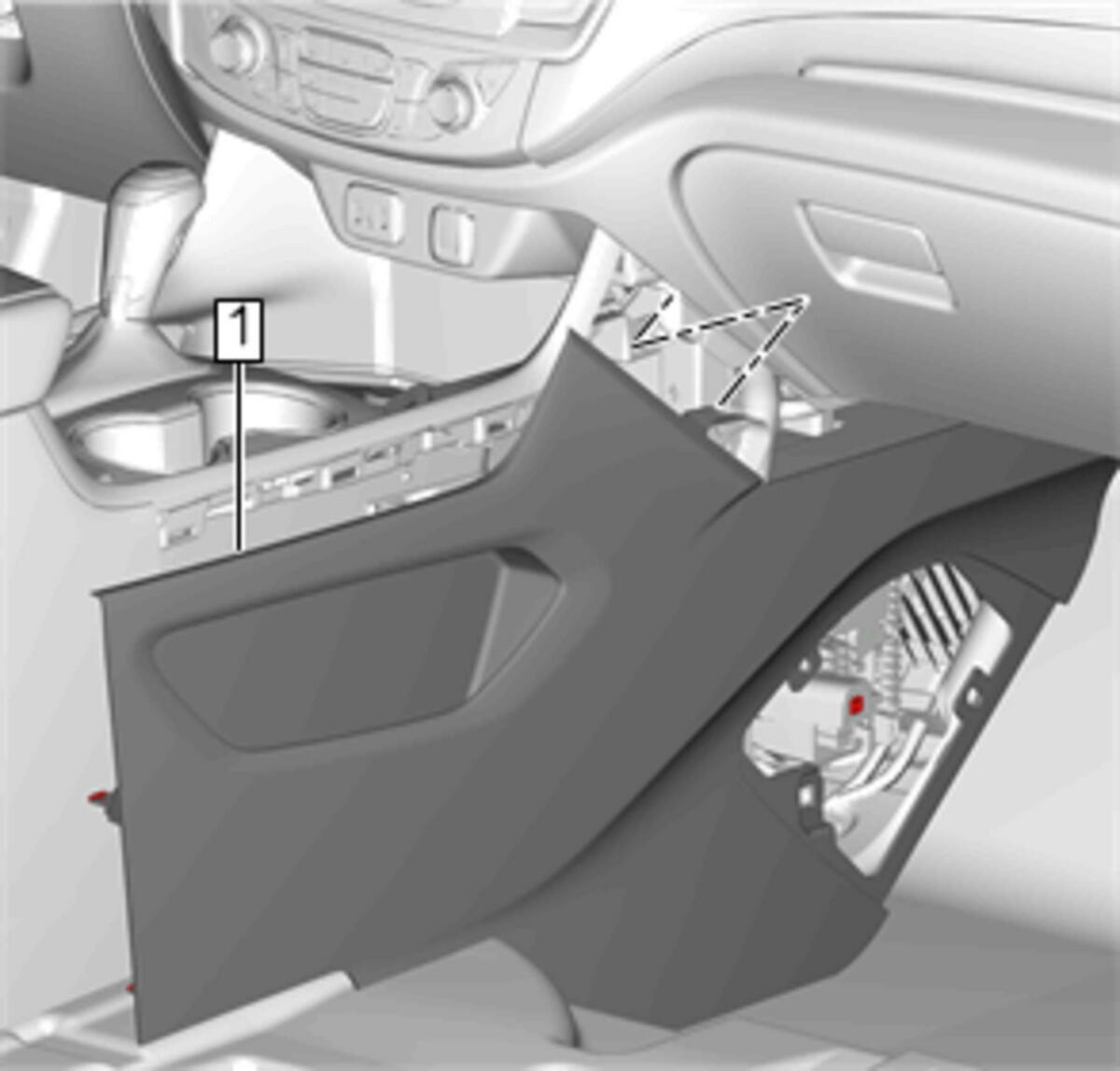

  24. GM4749781Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

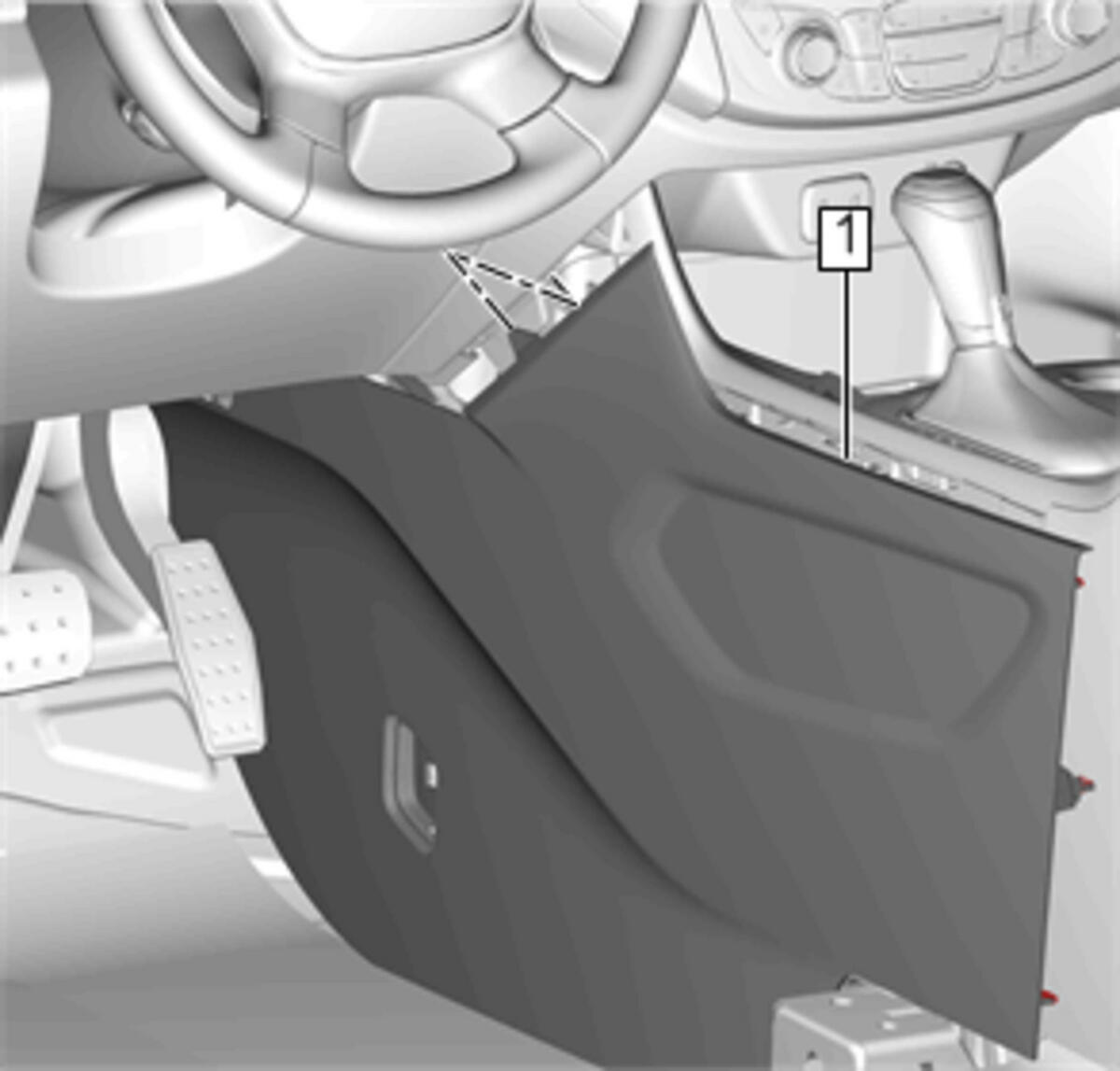

  25. GM4749789Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
