Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

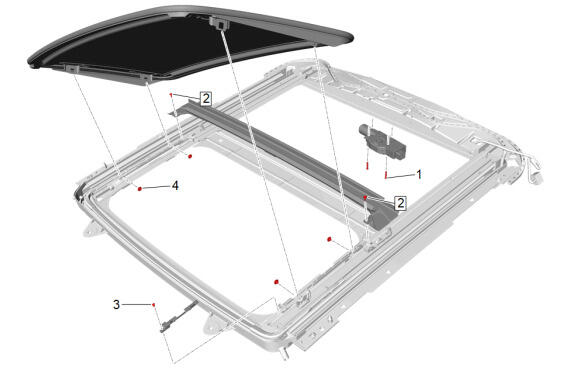

Sunroof Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Sunroof Control Module Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Sunroof Control Module Replacement |
| 2 | Sunroof Housing Drain Gutter Channel Screw [ 2x ] | - | - | 1.7 (15 lb in) | Sunroof Housing Drain Gutter Replacement - Channel |
| 3 | Sunroof Sunshade Bracket Set Plate Screw | - | - | 0.6 (5 lb in) | Sunroof Sunshade Replacement |
| 4 | Sunroof Window Bolt [ 4x ] | - | - | 4.5 (40 lb in) | Sunroof Window Replacement |

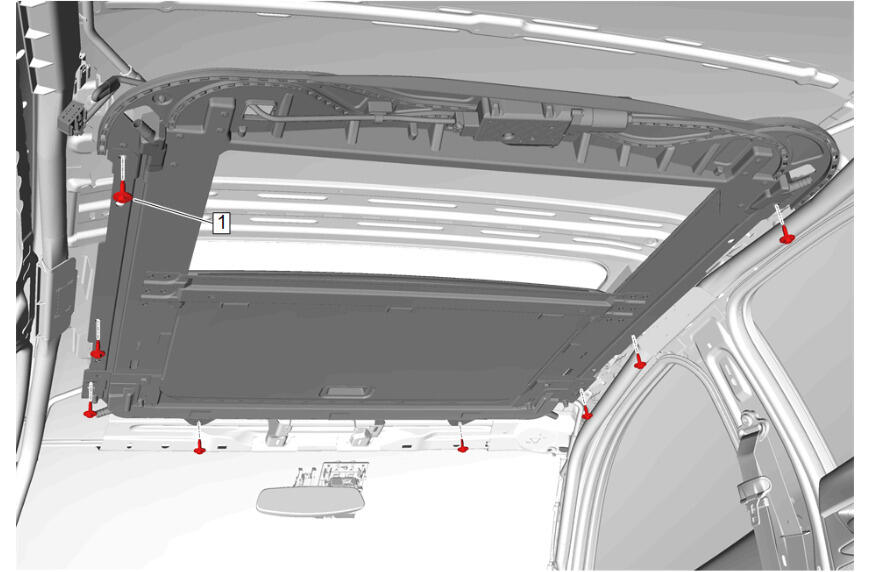

Sunroof Mounting
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Sunroof Module Bolt [ 8x ] | - | - | 9 (80 lb in) | Sunroof Housing Replacement |
