Airbag Driver, Lower and SDM Module
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [ 2x ] | - | - | 9 (80 lb in) | Steering Wheel Airbag Replacement |
| 2 | Instrument Panel Lower Airbag Nut [ 2x ] | - | - | 9 (80 lb in) | Instrument Panel Lower Airbag Replacement - Driver Side |
| 3 | Instrument Panel Lower Airbag Nut [ 2x ] | - | - | 9 (80 lb in) | Instrument Panel Lower Airbag Replacement - Passenger Side |
| 4 | Airbag Sensing and Diagnostic Module Nut [ 3x ] | - | - | 9 (80 lb in) | Restraints Control Module Replacement |
Airbag Front End Discriminating Sensor/Protector
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor Bolt @ Protector [ 2x ] | - | - | 9 (80 lb in) | Airbag Front End Discriminating Sensor Protector Replacement |
| 2 | Airbag Front End Discriminating Sensor Bolt [ 2x ] | - | - | 7.5 (66 lb in) | Airbag Front End Discriminating Sensor Replacement |
Front Seat Belt Retractor and Tensioner
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Retractor D Ring Bolt | - | - | 45 (33 lb ft) | Front Seat Belt Retractor Replacement |
| 2 | Front Seat Belt Retractor Bolt -Upper | - | - | 9 (80 lb in) | Front Seat Belt Retractor Replacement |
| 3 | Front Seat Belt Retractor Bolt -Lower | - | - | 45 (33 lb ft) | Front Seat Belt Retractor Replacement |
| 4 | Front Seat Belt Anchor Plate Tensioner Bolt- Upper | - | - | 6 (53 lb in) | Front Seat Belt Anchor Plate Tensioner Replacement |
| 5 | Front Seat Belt Anchor Plate Tensioner Bolt- Lower | - | - | 45 (33 lb ft) | Front Seat Belt Anchor Plate Tensioner Replacement |

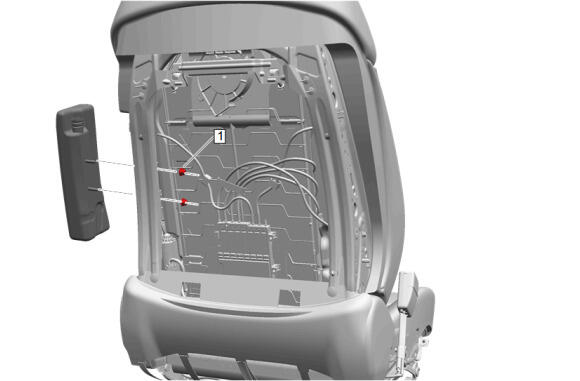

Front Seat Outboard Seat Back Airbag
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Outboard Seat Back Airbag Nut | - | - | 7 (62 lb in) | Front Seat Outboard Seat Back Airbag Replacement (with Seat Back Cushion Finish Panel) Front Seat Outboard Seat Back Airbag Replacement (without Seat Back Cushion Finish Panel) |
Roof Rail Airbag and Side Impact Sensors
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Airbag Bolt [ 8x ] | - | - | 2.5 (22 lb in) | Front and Rear Row Roof Rail Airbag Replacement |
| 2 | Roof Rail Airbag Bolt | - | - | 9 (80 lb in) | Front and Rear Row Roof Rail Airbag Replacement |
| 3 | Airbag Side Impact Sensor Bolt | - | - | 7.5 (66 lb in) | Airbag Side Impact Sensor Replacement |
| 4 | Airbag Side Impact Rear Sensor Bolt | - | - | 7.5 (66 lb in) | Airbag Side Impact Rear Sensor Replacement |
