Fastener Specifications

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

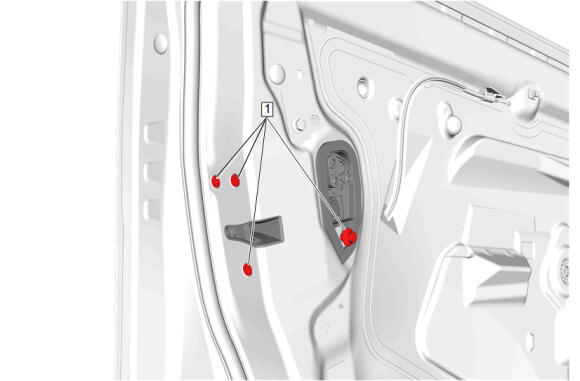

GM5504064Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [ 4x ] - - 9 (80 lb in) Front Side Door Latch Replacement

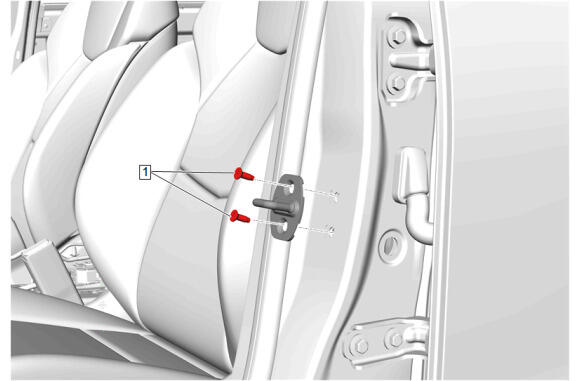

GM5504186Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [ 2x ] - - 22 (16 lb ft) Front Side Door Latch Striker Replacement

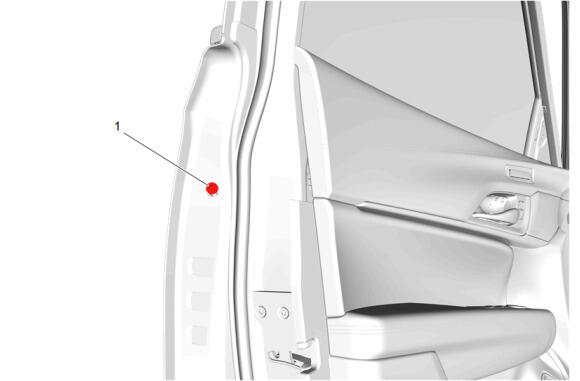

GM5504487Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Cylinder Bezel

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Lock Cylinder Bezel Bolt - - 4 (35 lb in) Front Side Door Lock Cylinder Bezel Replacement

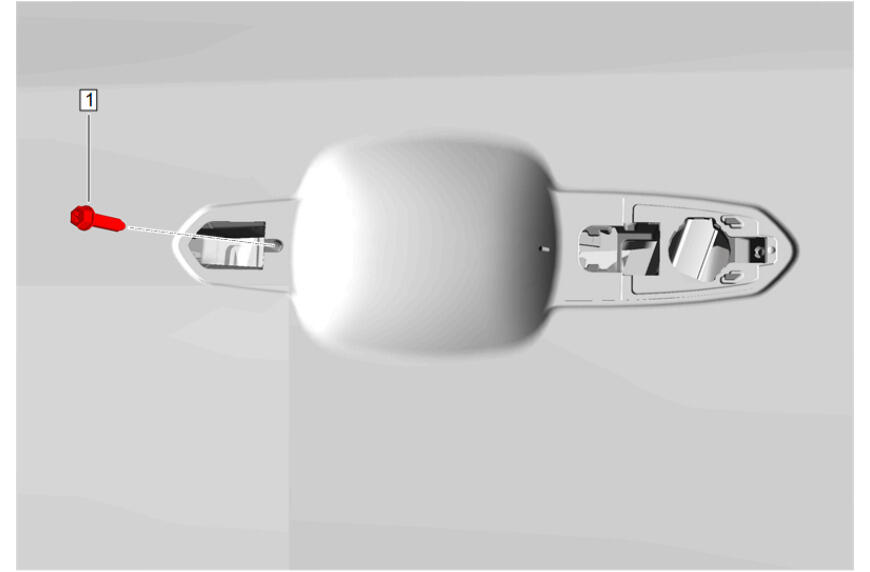

GM5442374Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Bolt - - 4.7 (42 lb in) Front Side Door Outside Handle Bracket Replacement

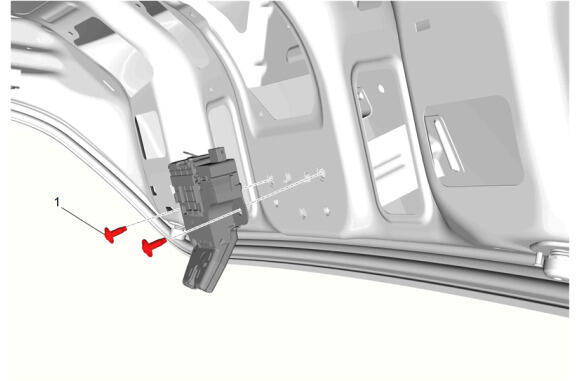

GM5504526Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Latch

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Lid Latch Bolt [ 2x ] - - 9 (80 lb in) Rear Compartment Lid Latch Replacement

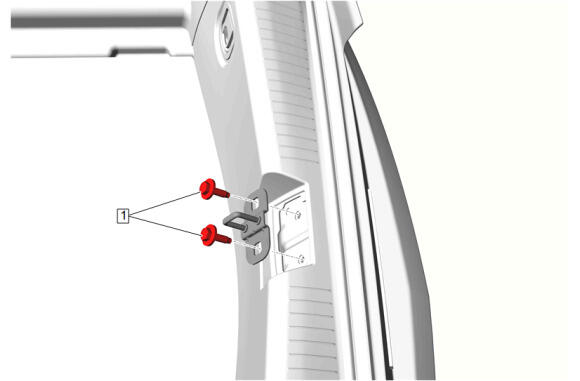

GM5504323Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Latch Striker

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Lid Latch Striker Bolt [ 2x ] - - 22 (16 lb ft) Rear Compartment Lid Latch Striker Replacement

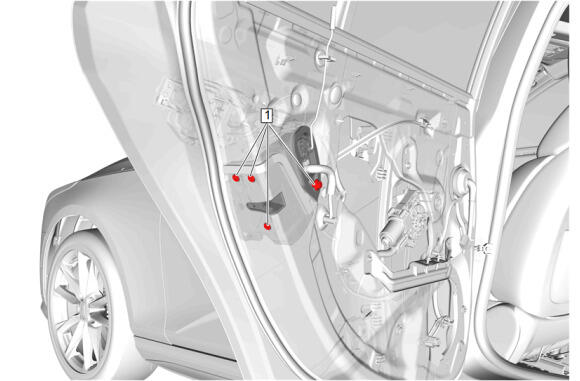

GM5507432Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [ 4x ] - - 9 (80 lb in) Rear Side Door Latch Replacement

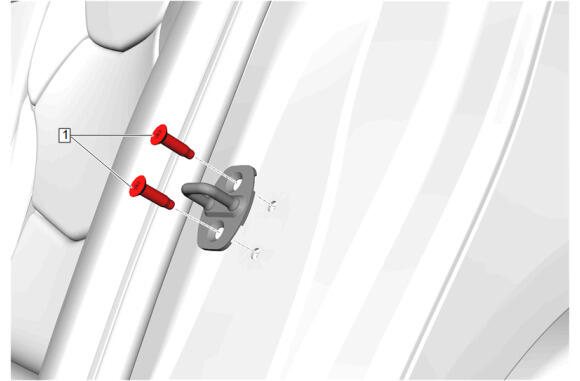

GM5504343Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [ 2x ] - - 22 (16 lb ft) Rear Side Door Latch Striker Replacement

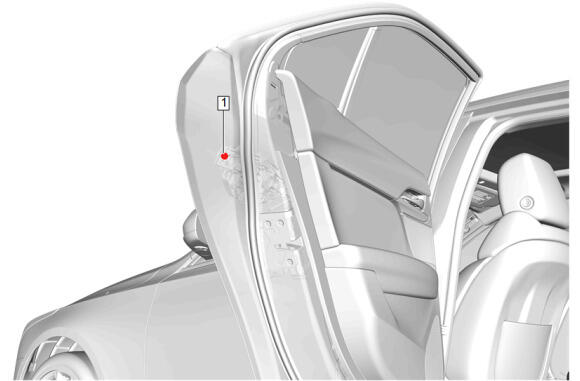

GM5507300Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Lock Cylinder Opening Cover

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Lock Cylinder Opening Cover Bolt - - 4 (35 lb in) Rear Side Door Lock Cylinder Opening Cover Replacement

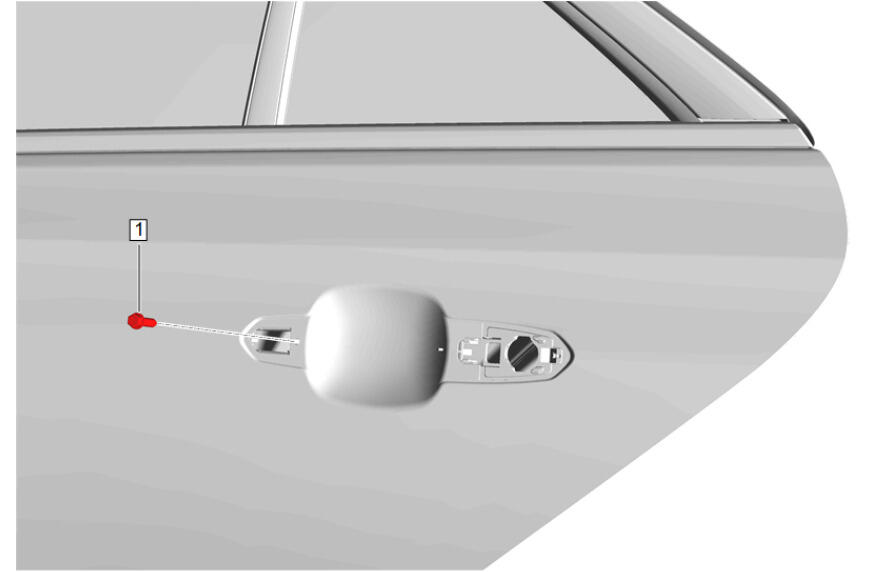

GM5445334Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Bolt - - 4.7 (42 lb in) Rear Side Door Outside Handle Bracket Replacement
