Power Transfer Unit Mounting

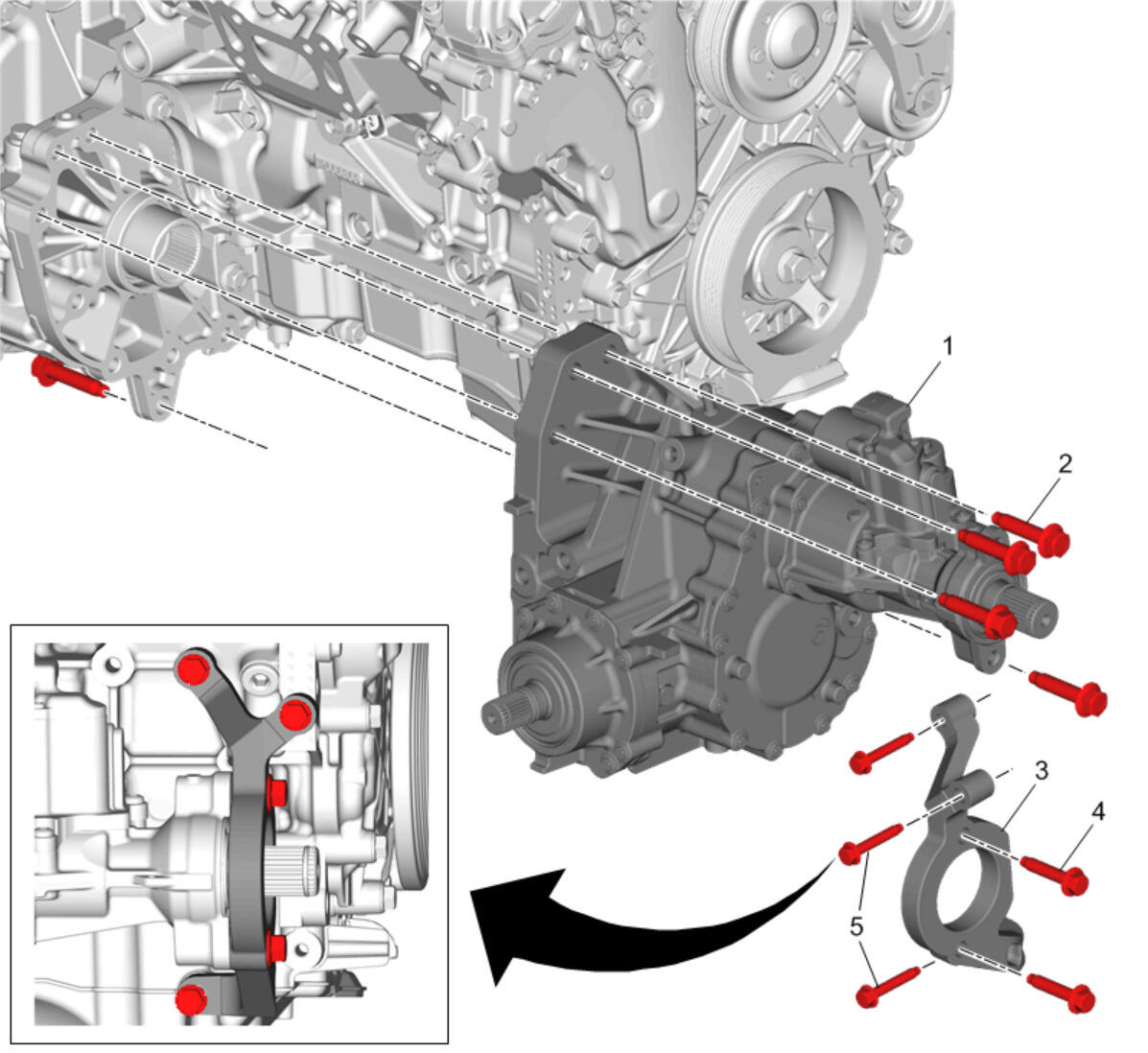

GM4848373Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Power Transfer Unit Case
2 Power Transfer Unit Bolt [ 5x ]
3 Transfer Case Bracket
4 Transfer Case Bracket Bolt @ Power Transfer Unit Extension Housing [ 2x ]
5 Transfer Case Bracket Bolt @ Engine [ 3x ]
