Installation Procedure

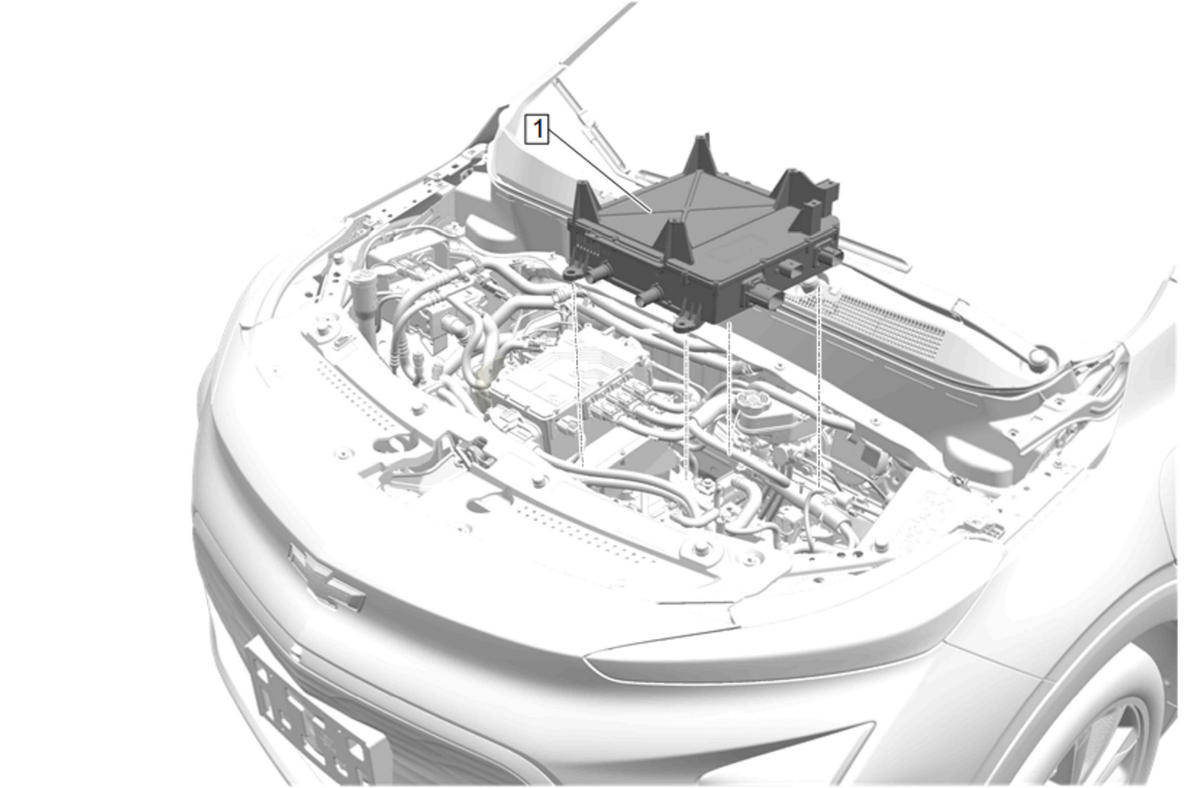

  1. GM5695992Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger (1) - Install

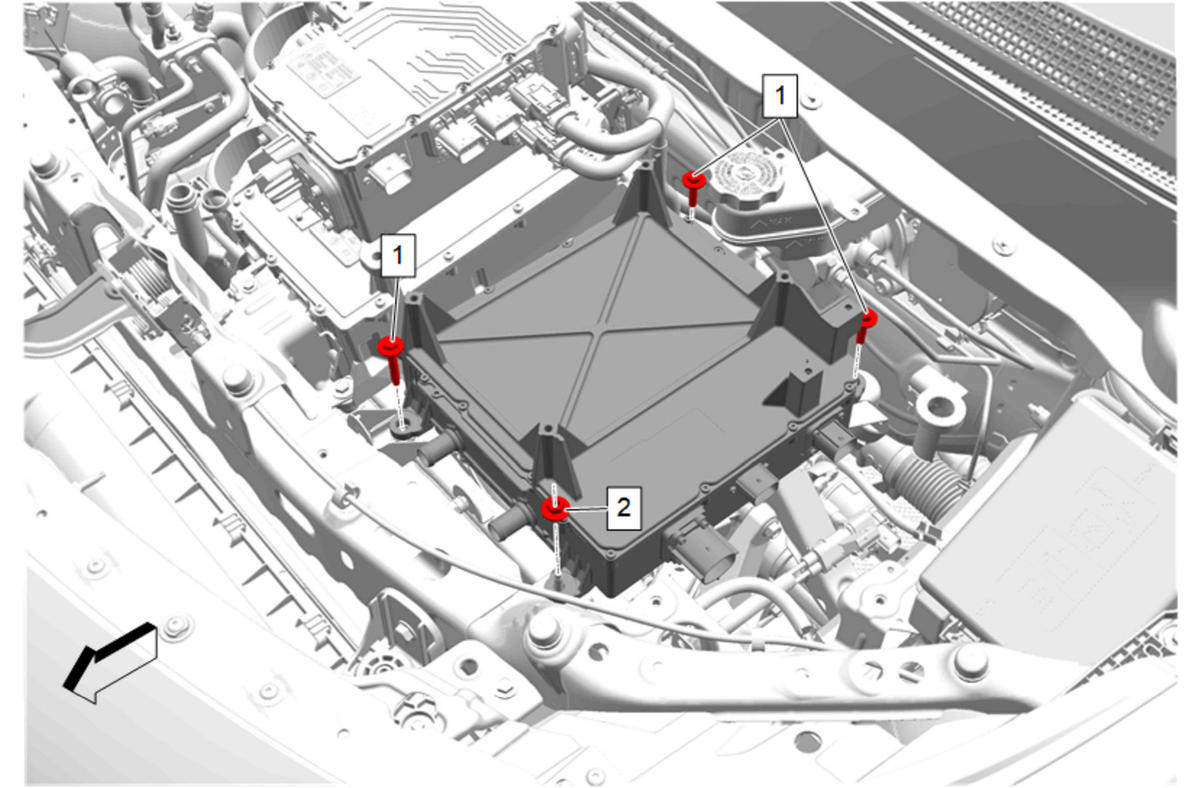

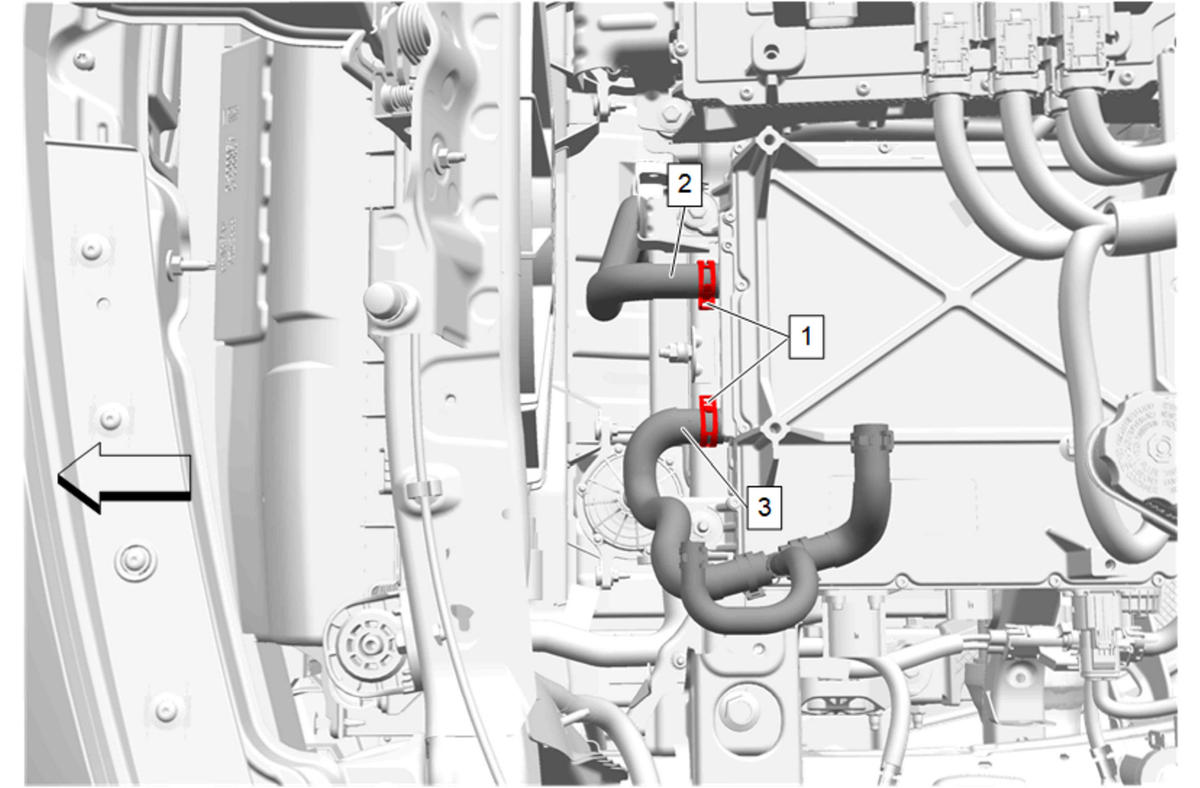

  2. GM5699310Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Drive Motor Battery Charger Bolt (1) - Install and tighten [3x] - Fastener Specifications

  3. Drive Motor Battery Charger Nut (2) - Install and tighten - Fastener Specifications
  4. GM5699309Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Cooling Inlet Hose (2) - Install

  5. Drive Motor Control Module Radiator Outlet Hose (3) - Install
  6. Hose Clamp (1) - Engage [2x]

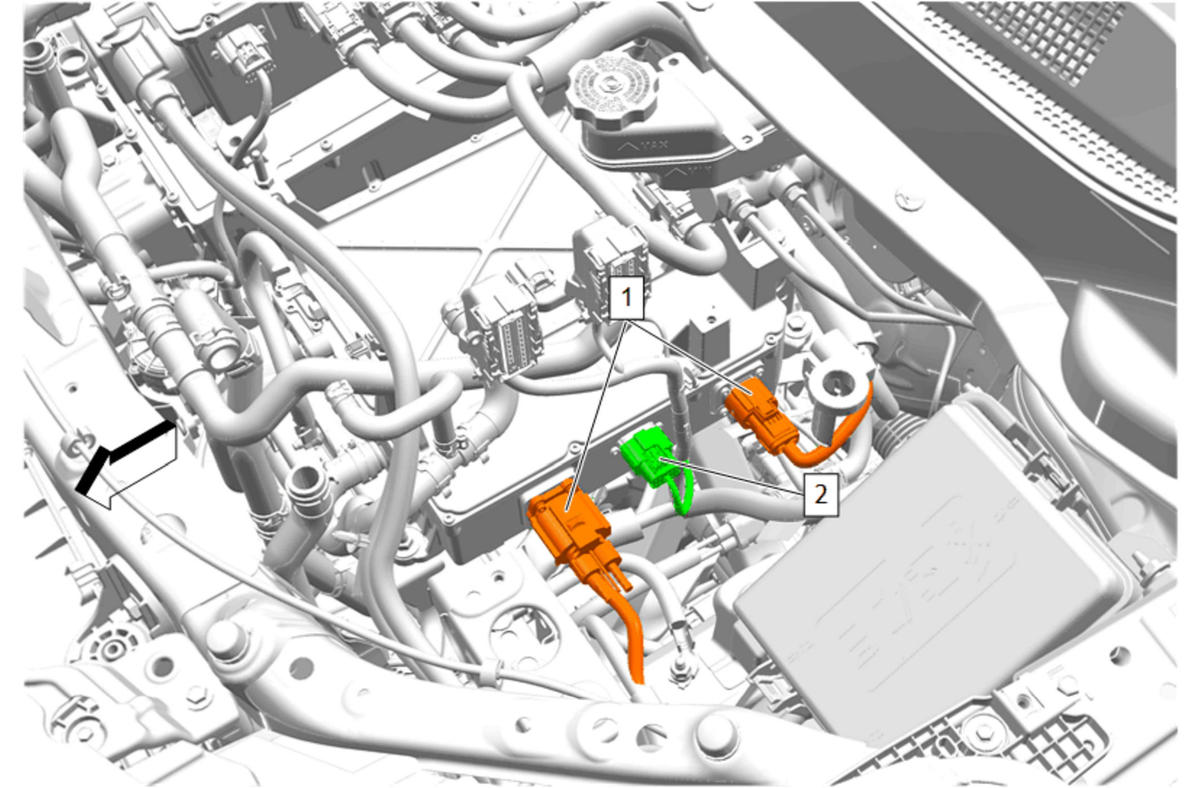

  7. GM5699308Courtesy of GENERAL MOTORS COMPANY

    High Voltage Electrical Connector (1) - Connect [2x]

  8. Electrical Connector (2) - Connect

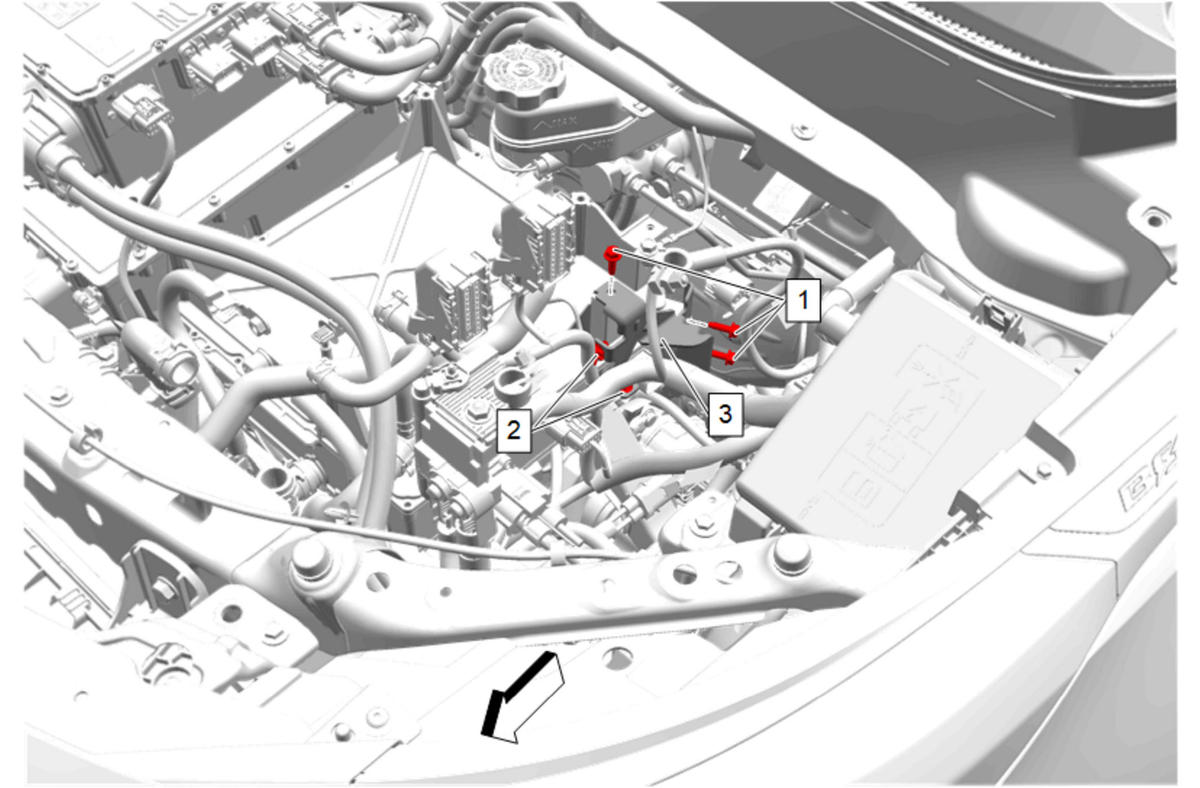

  9. GM5845492Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Bracket (3) - Install

  10. Wiring Harness Retainer (2) - Install [2x]
  11. Engine Wiring Harness Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

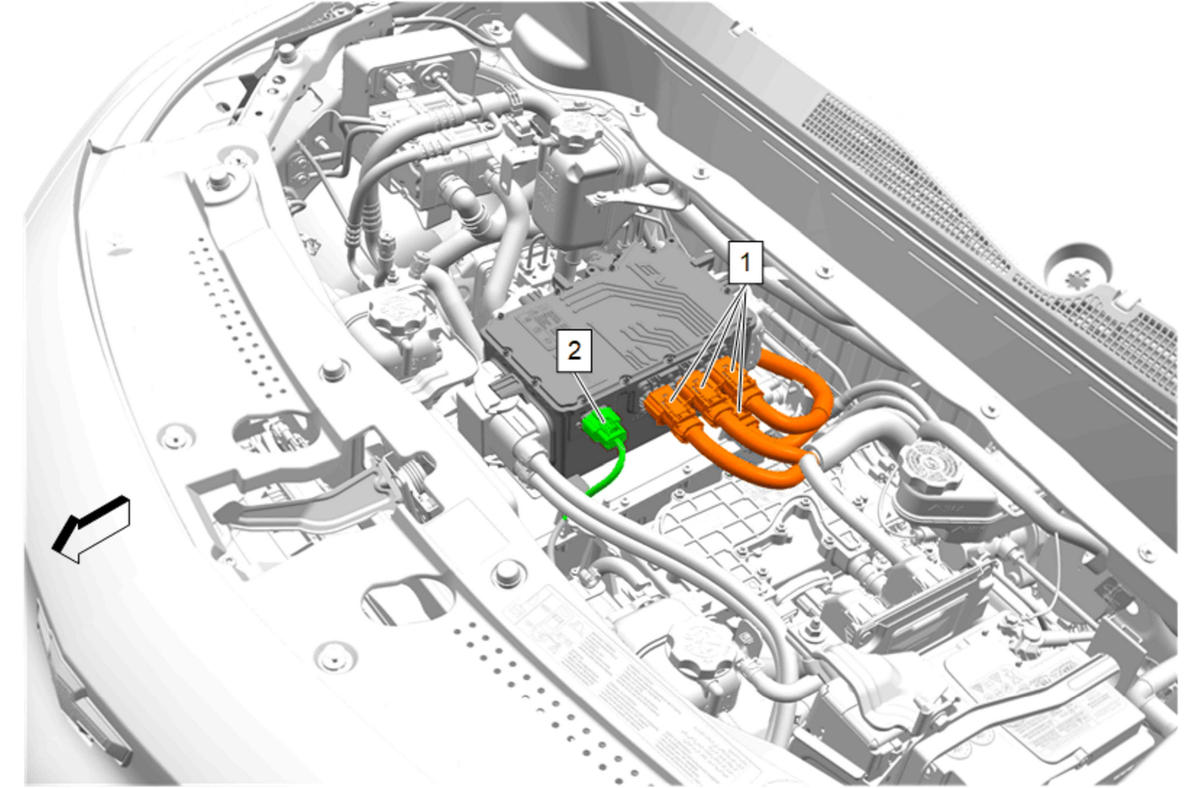

  12. GM5696964Courtesy of GENERAL MOTORS COMPANY

    Connect the 4 high voltage cable connectors (1).

  13. Connect the electrical connector. (2)

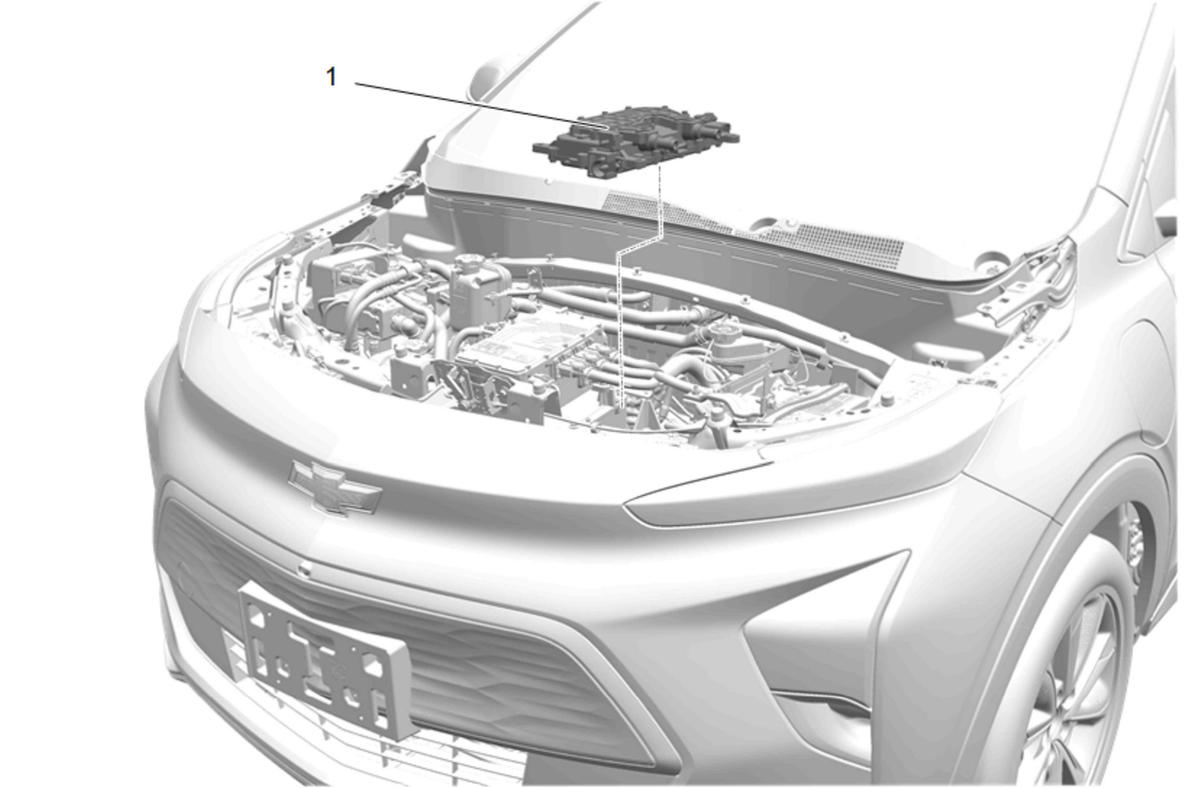

  14. GM5699228Courtesy of GENERAL MOTORS COMPANY

    Accessory DC Power Control Module (1) - Install

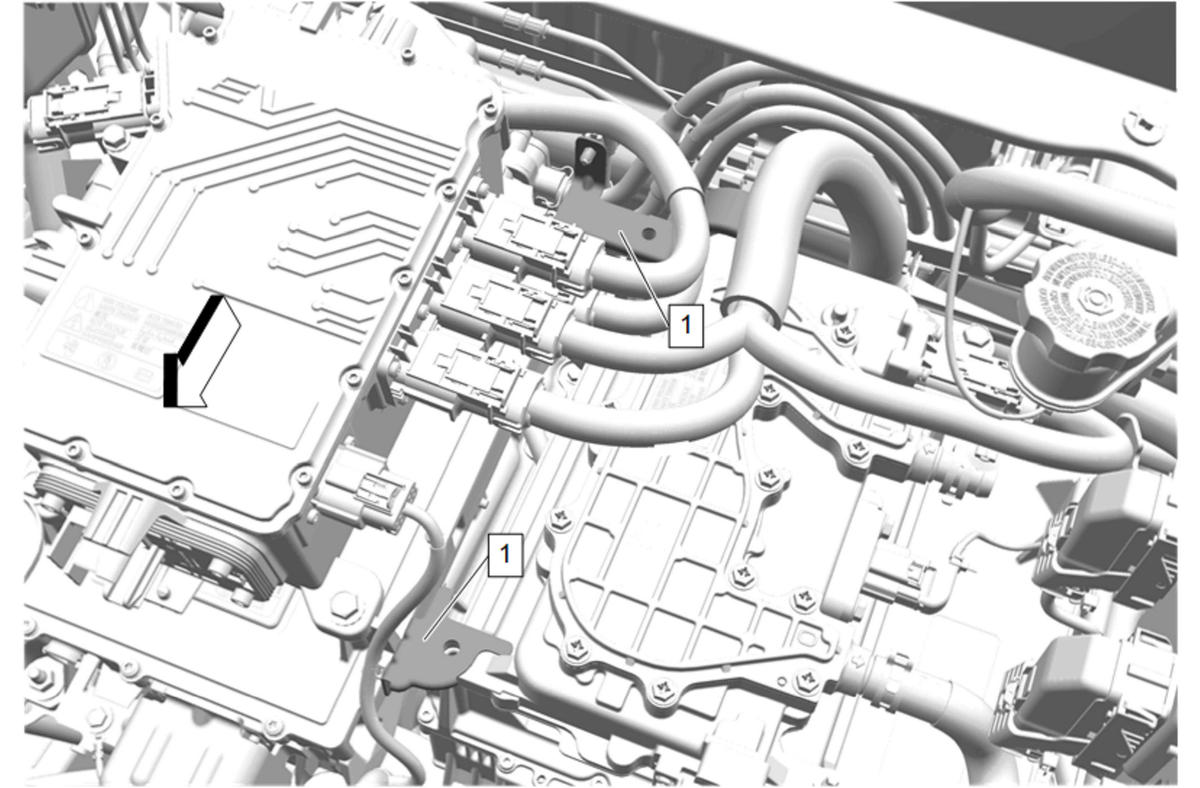

  15. GM5699227Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Bracket (1) - Install [2x]

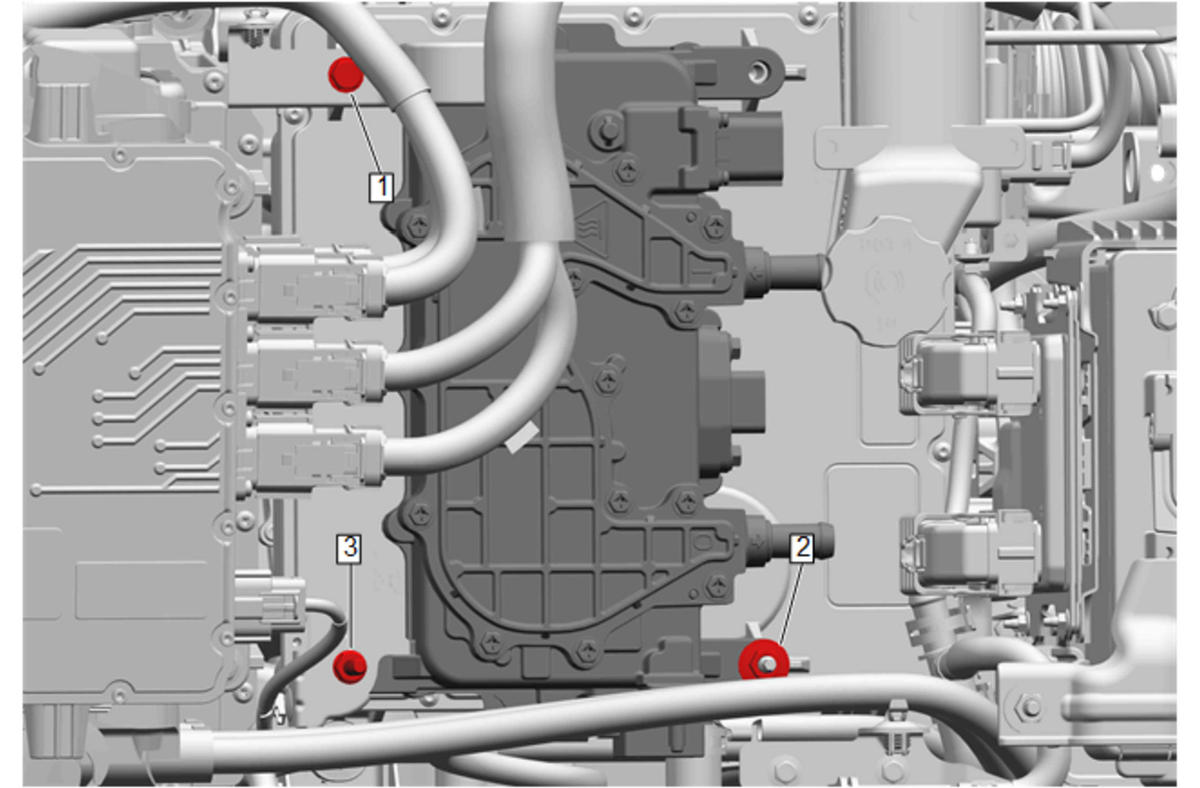

  16. GM5512537Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Engine Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications

  17. Accessory DC Power Control Module Nut (2) - Install and tighten - Fastener Specifications
  18. Engine Wiring Harness Bracket Stud (3) - Install and tighten - Fastener Specifications

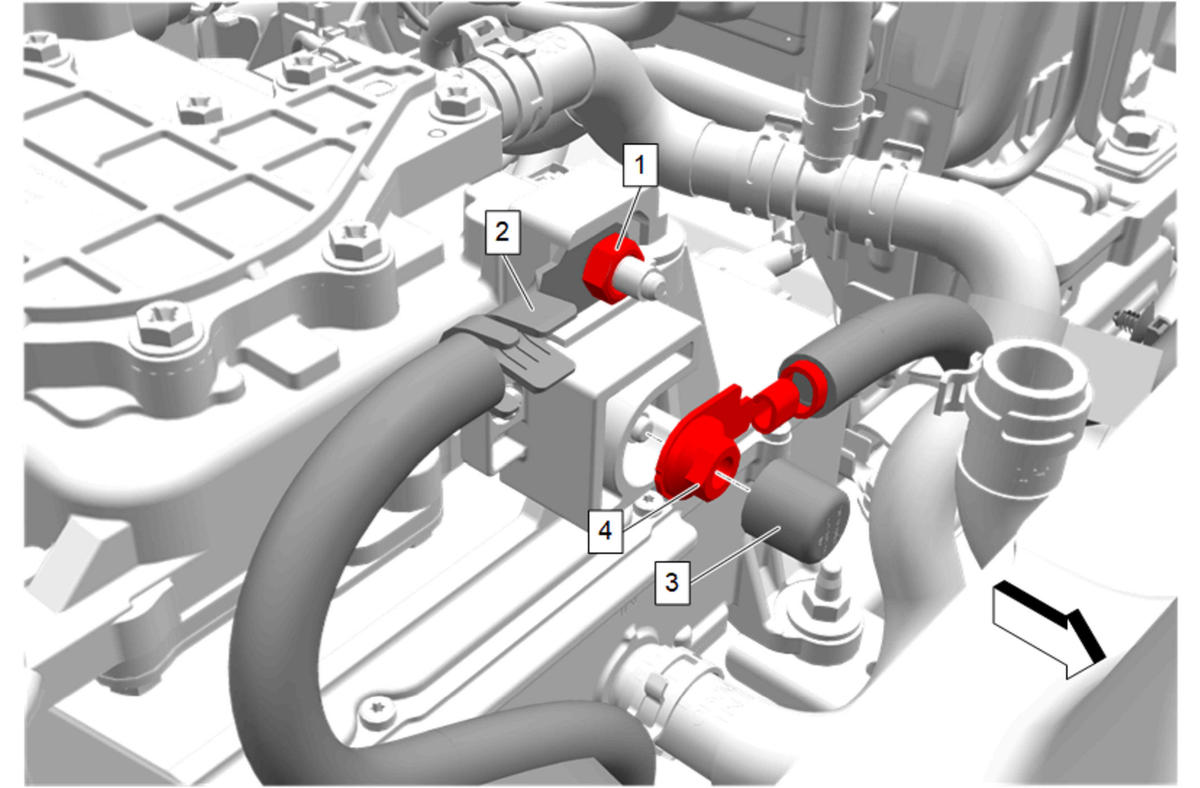

  19. GM5699226Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable and Nut (4) - Install and tighten - Fastener Specifications

  20. Engine Wiring Harness Connector Protector (3) - Install
  21. Battery Negative Cable Extension Cable (2) - Install
  22. Battery Negative Cable Extension Cable Fastener (1) - Install and tighten - Fastener Specifications

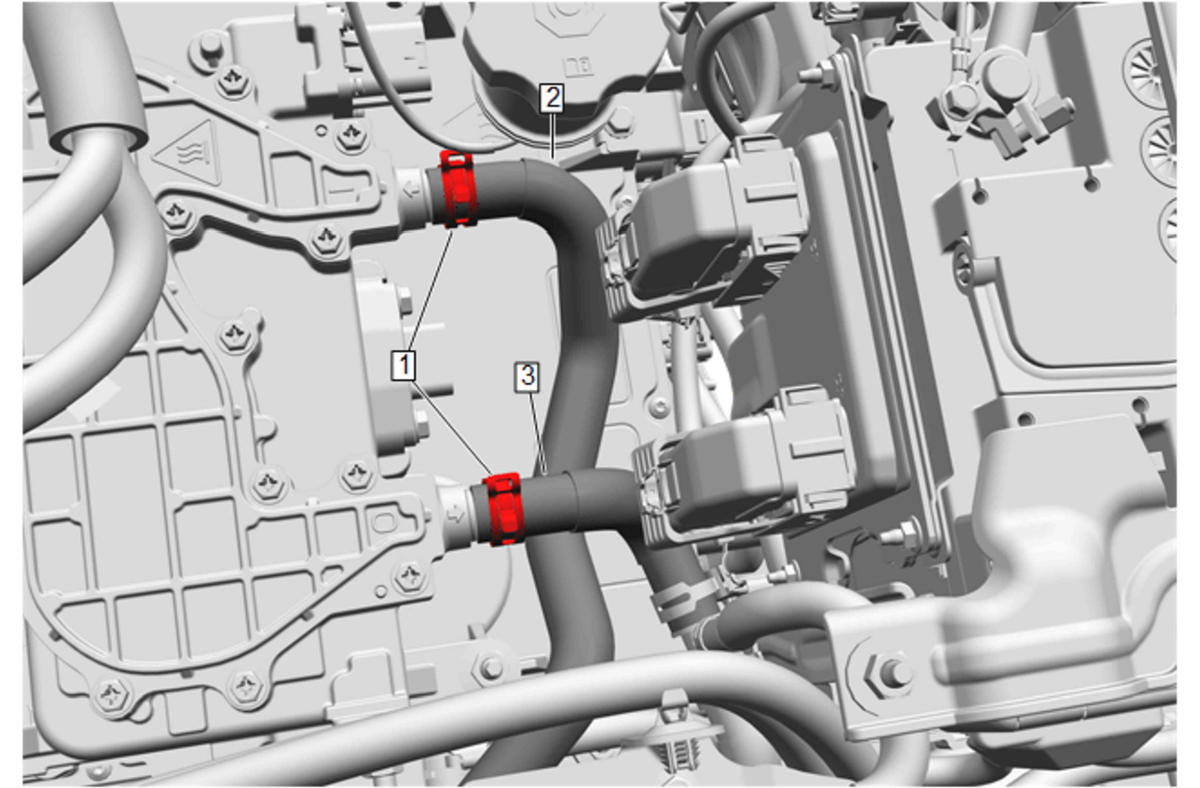

  23. GM5512535Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Control Module Radiator Outlet Hose (3) - Install

  24. Drive Motor Generator Control Module Cooling Outlet Hose (2) - Install
  25. Hose Clamp (1) - Engage [2x]

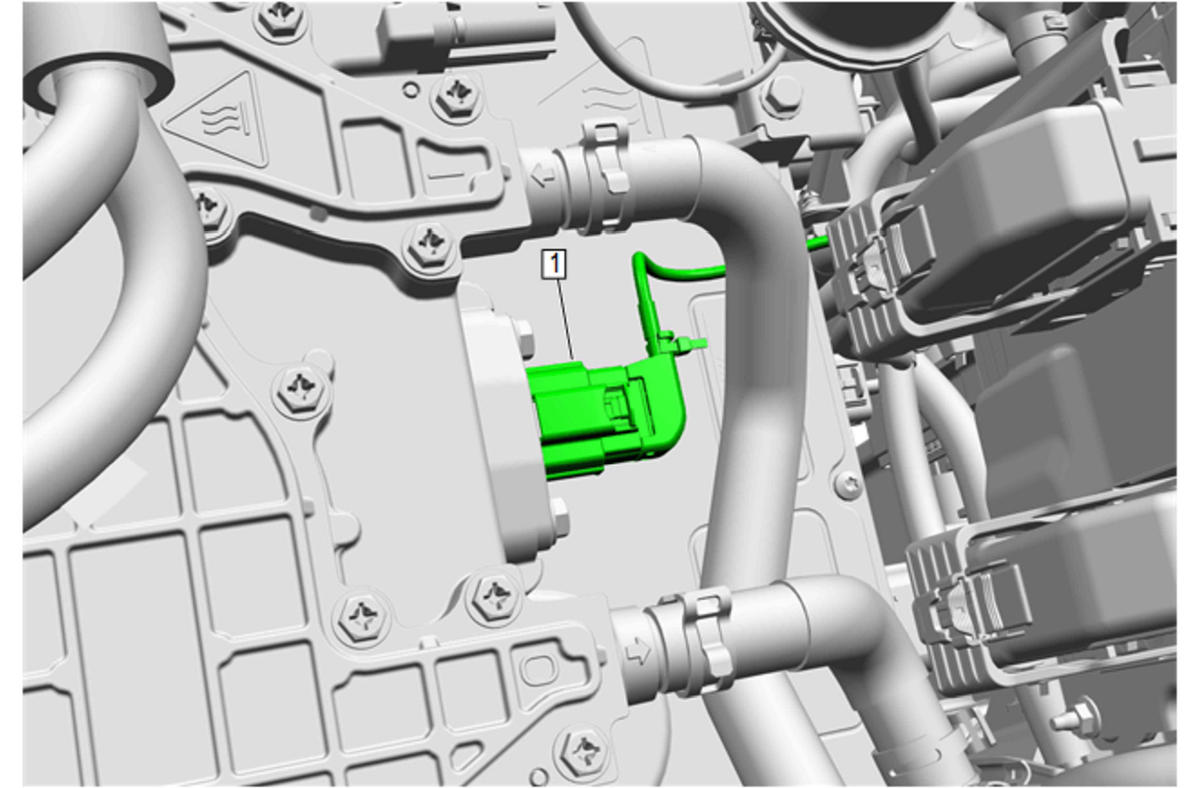

  26. GM5512534Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Accessory DC Power Control Module - Connect

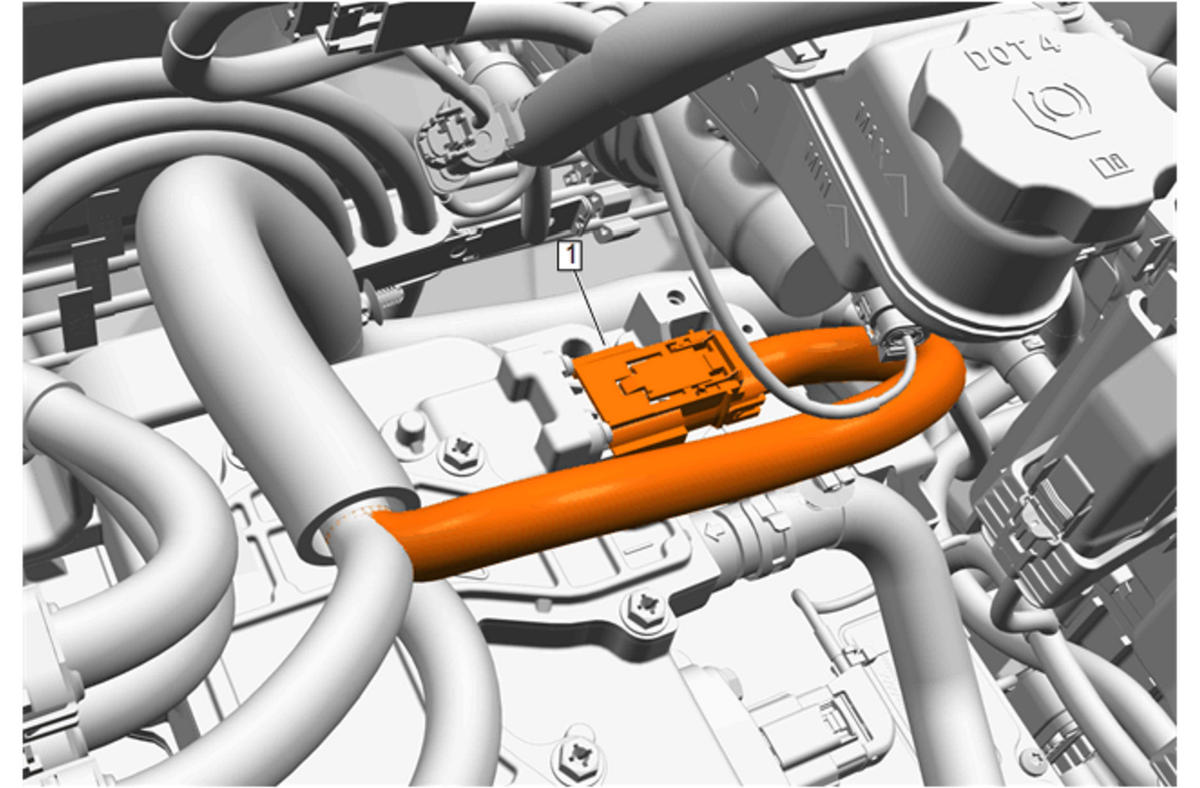

  27. GM5512533Courtesy of GENERAL MOTORS COMPANY

    Accessory DC power control module connector (1) - Connect

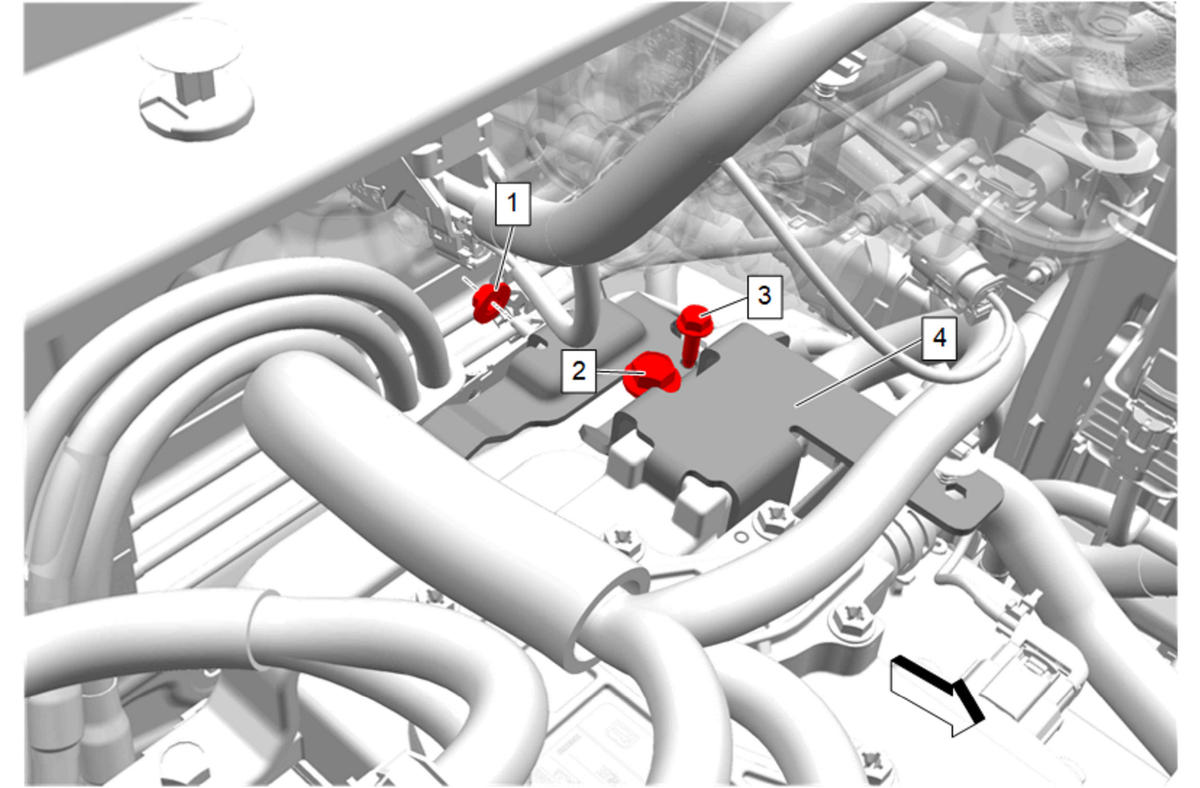

  28. GM5845487Courtesy of GENERAL MOTORS COMPANY

    Accessory DC Power Control Module High Voltage Connector Protector (4) - Install

  29. Accessory DC Power Control Module High Voltage Connector Protector Bolt (3) - Install and tighten - Fastener Specifications
  30. Accessory DC Power Control Module High Voltage Connector Protector Bolt (2) - Install and tighten - Fastener Specifications
  31. Accessory DC Power Control Module High Voltage Connector Protector Nut (1) - Install and tighten - Fastener Specifications

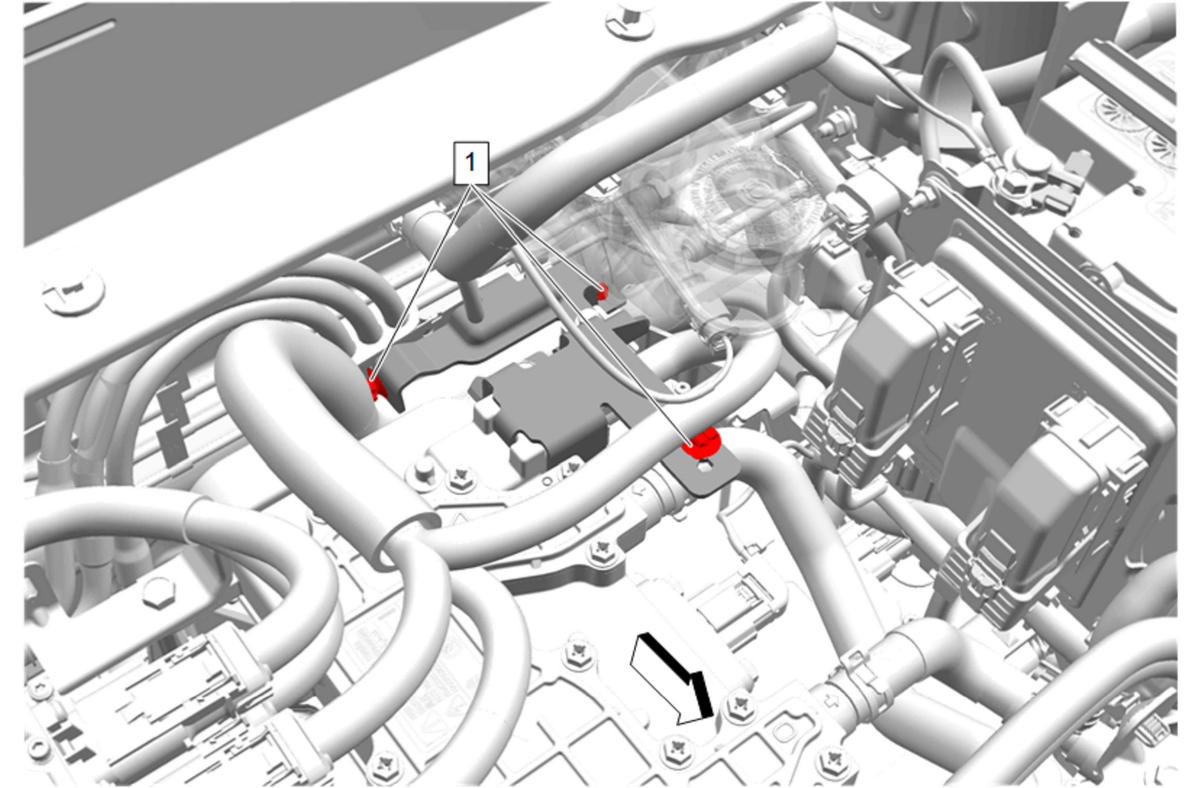

  32. GM5845485Courtesy of GENERAL MOTORS COMPANY

    Install the battery to battery positive cable retainers. (1) [3x]

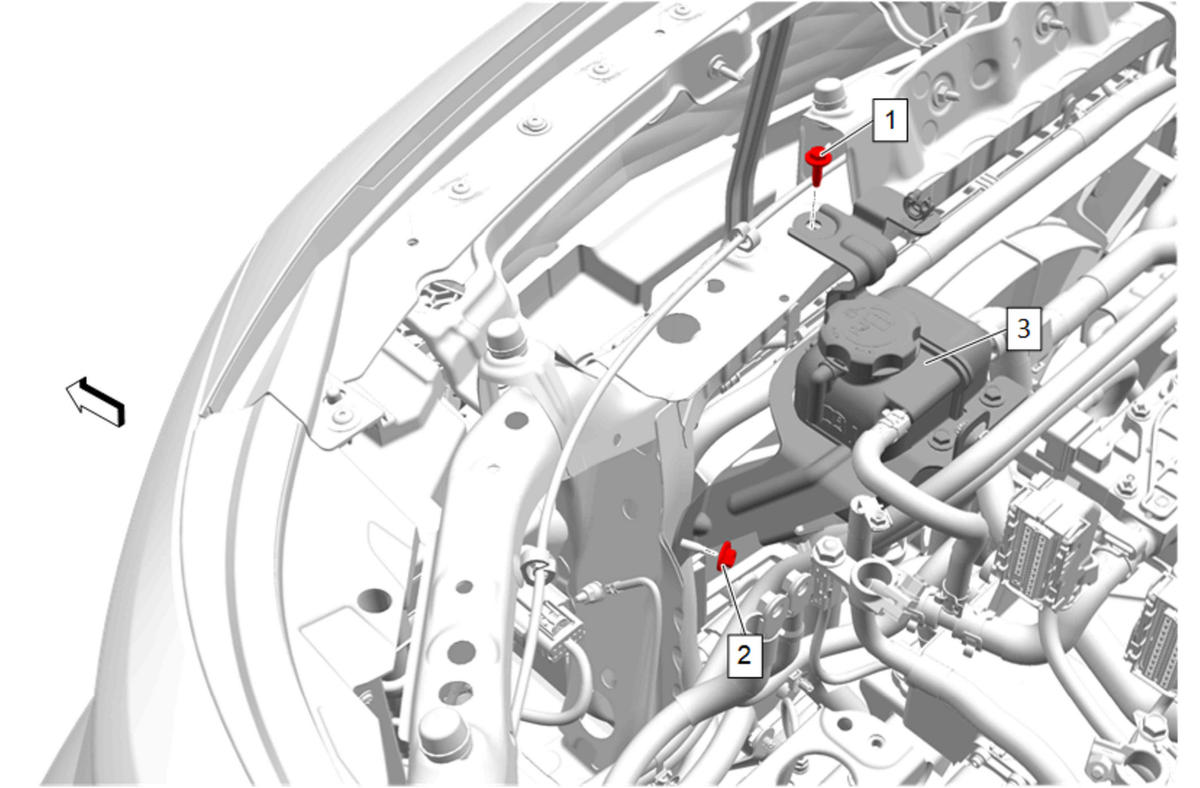

  33. GM5695989Courtesy of GENERAL MOTORS COMPANY

    Position the radiator surge tank and bracket (3).

  34. Radiator Surge Tank Bracket Nut (2) - Install and tighten - Fastener Specifications
  35. Radiator Surge Tank Bracket Bolt (1) - Install and tighten - Fastener Specifications

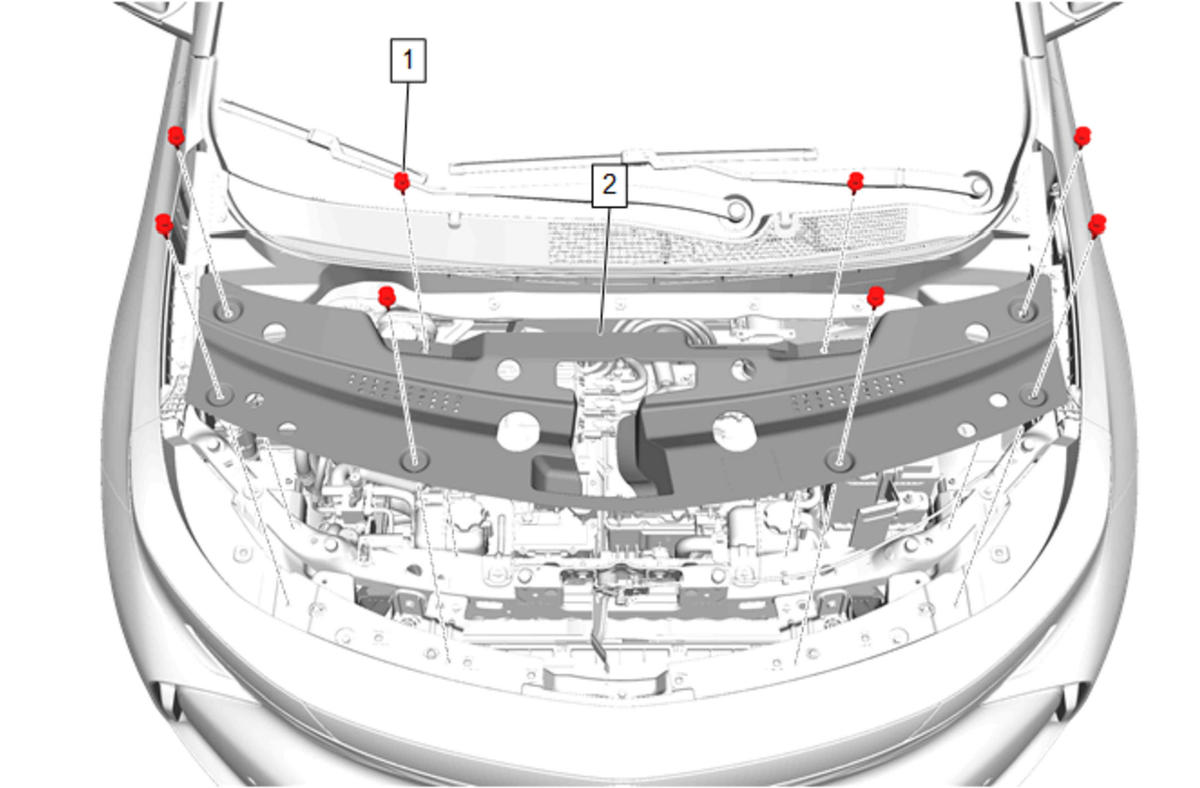

  36. GM5491628Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  37. Front Compartment Front Sight Shield Retainer (1) - Install [8x]

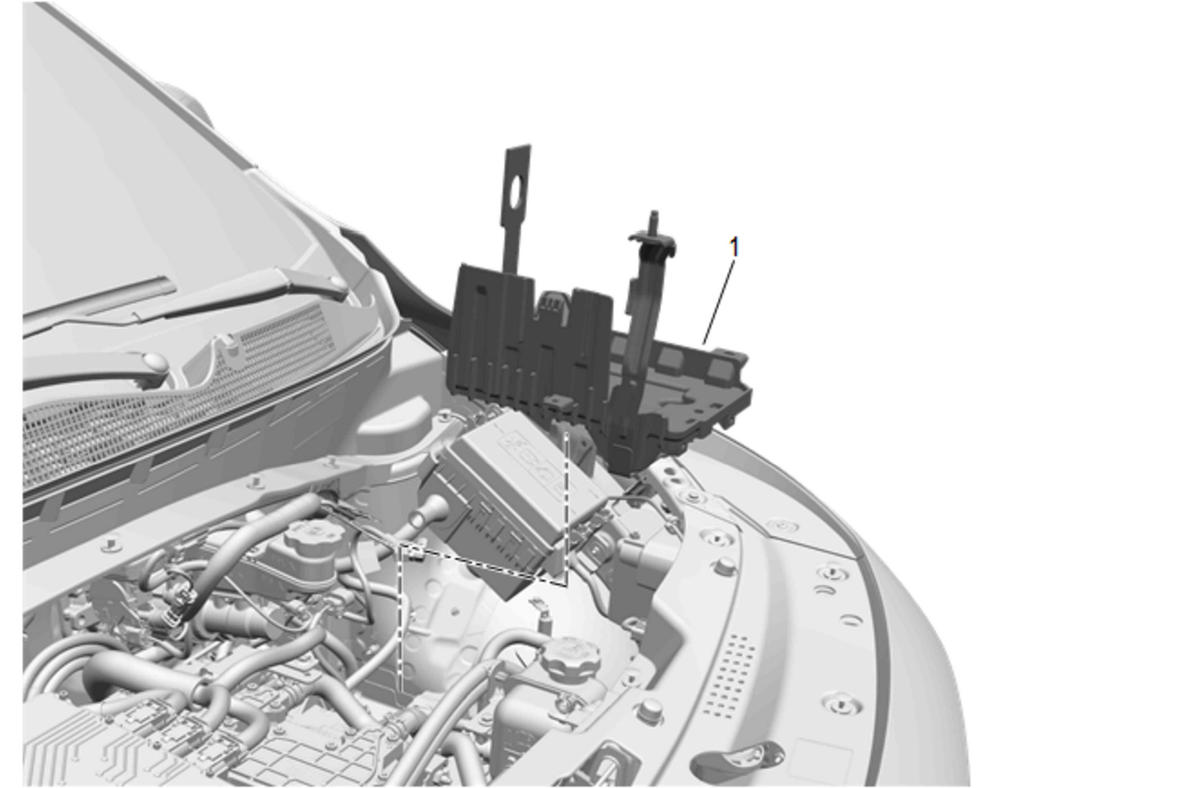

  38. GM5512526Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Install

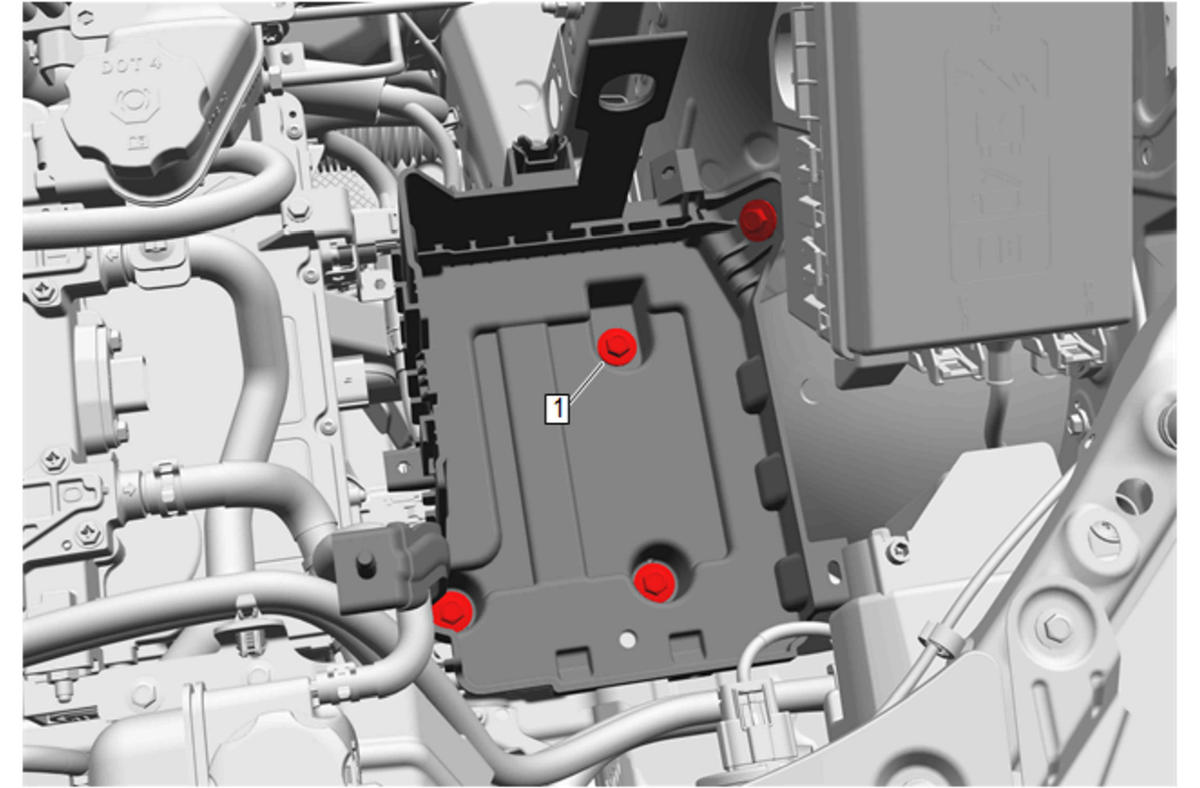

  39. GM5512525Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Bolt (1) - Install and tighten - Fastener Specifications

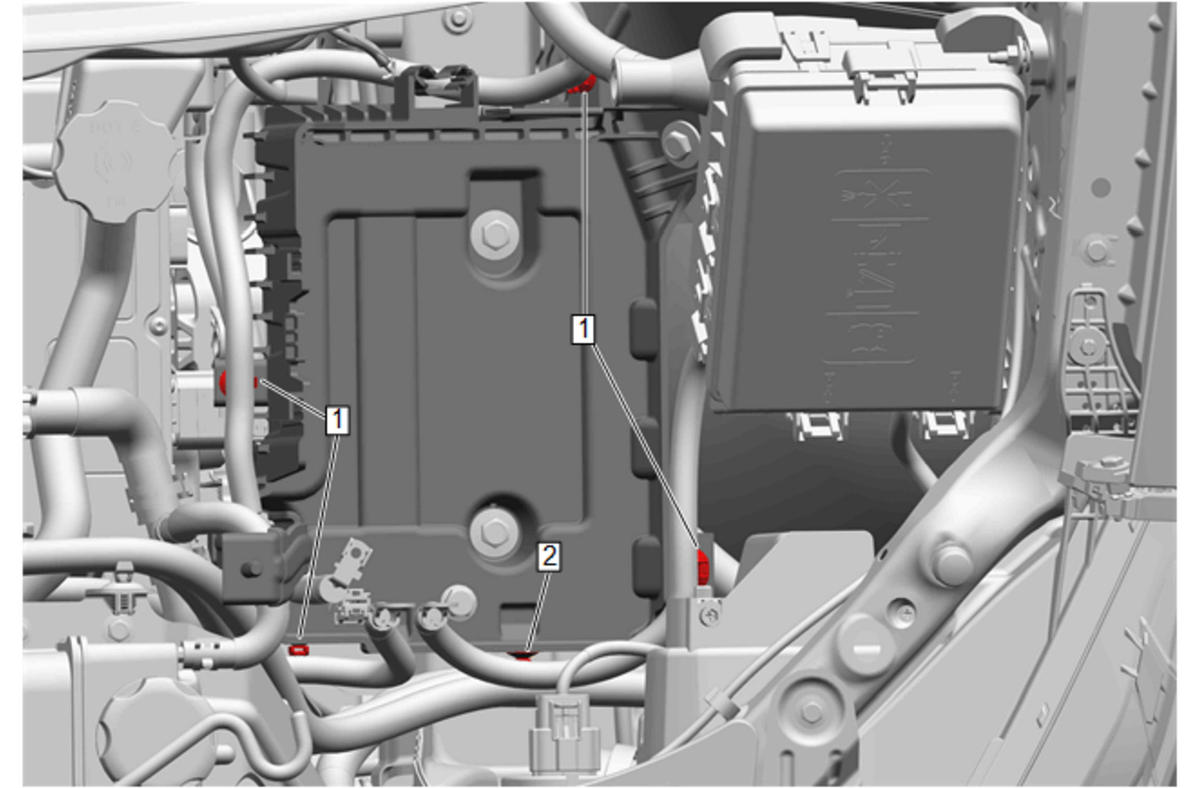

  40. GM5512524Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Retainer (1) @ Battery Tray - Install

  41. {If equipped} Drive Motor Battery Charger Receptacle Retainer (2) @ Battery Tray - Install

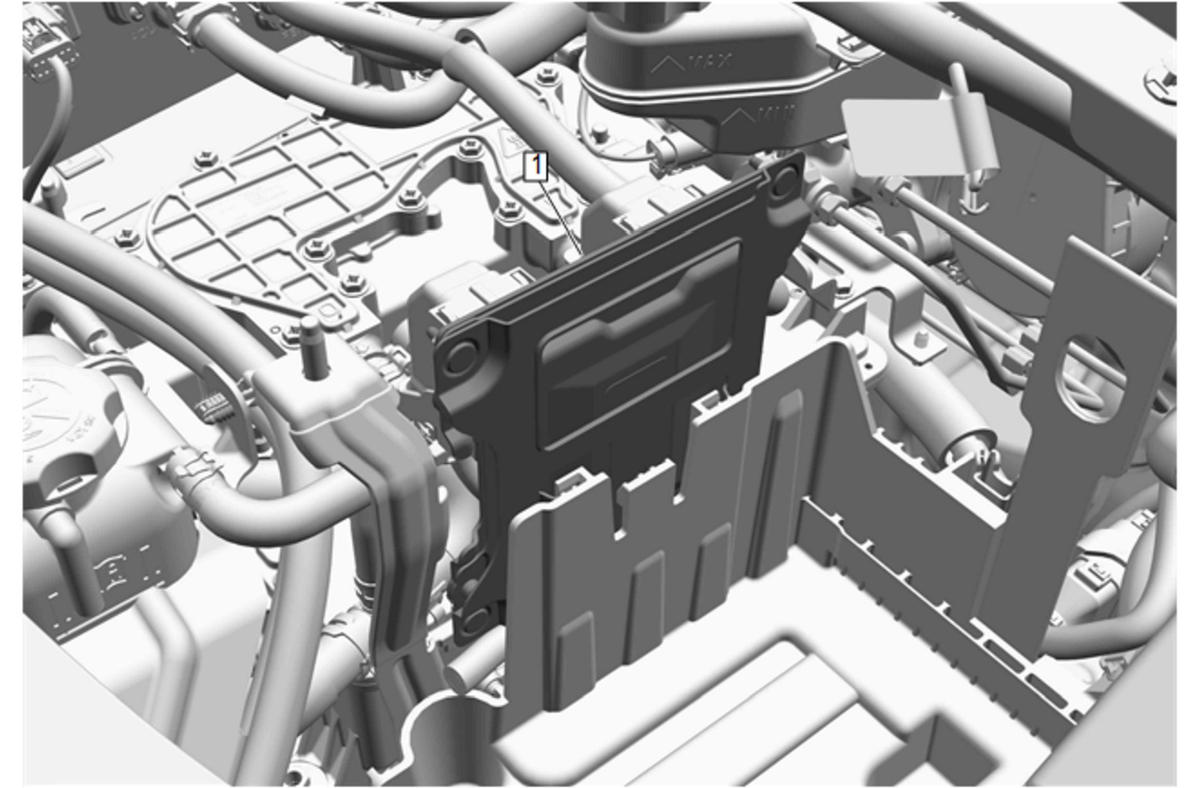

  42. GM5512523Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) @ Battery Tray - Install

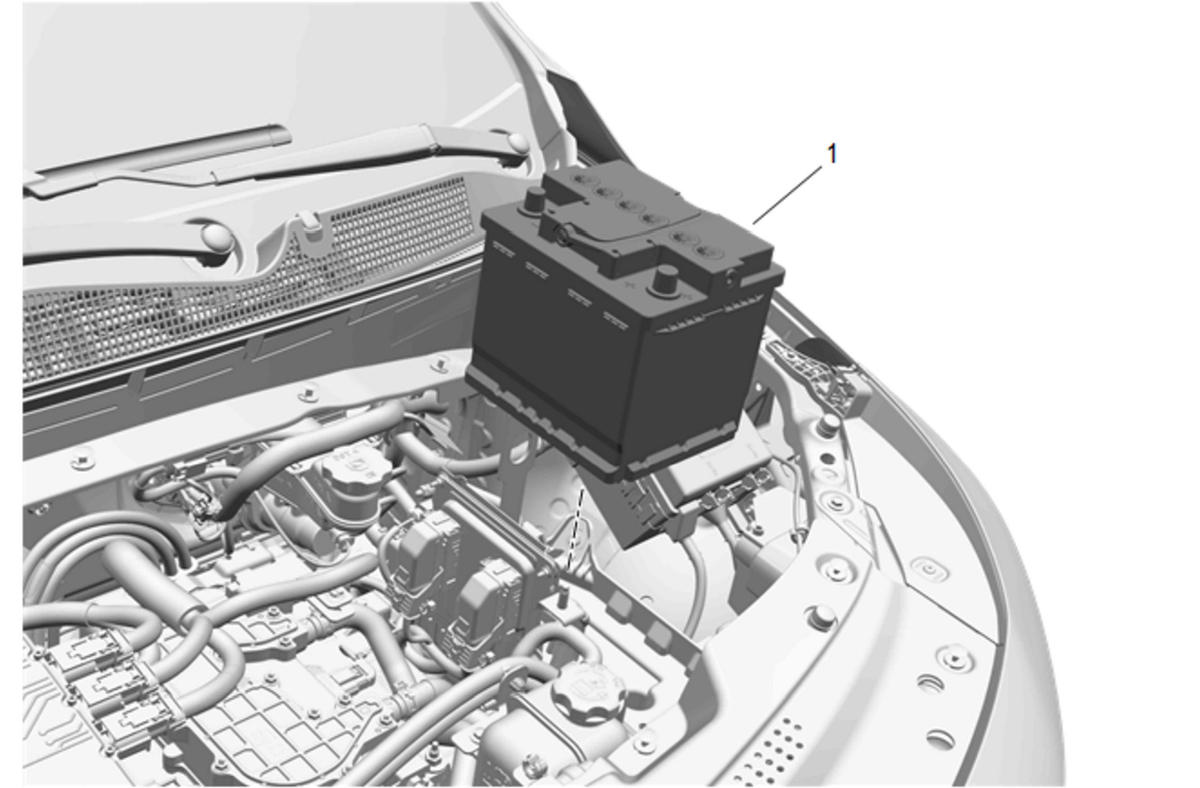

  43. GM5512520Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a battery lifting tool to install.

    Battery (1) - Install

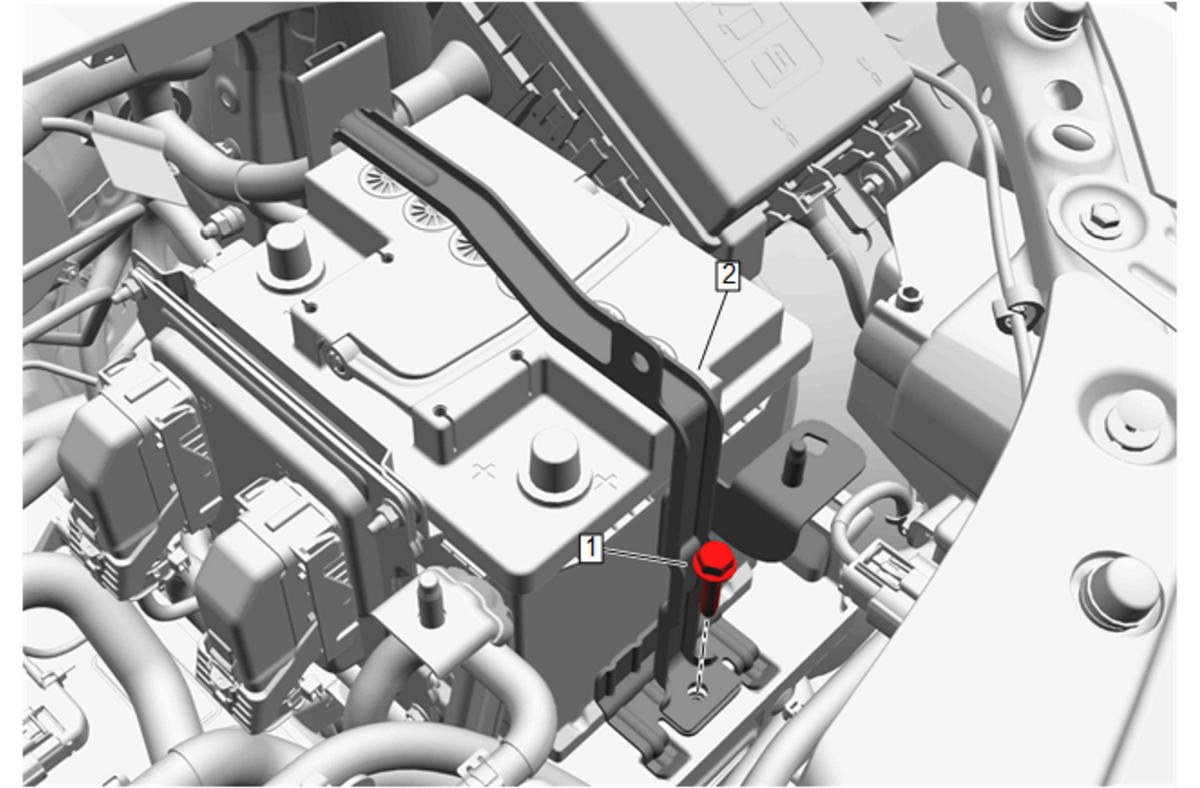

  44. GM5512519Courtesy of GENERAL MOTORS COMPANY

    Battery Retainer Assembly (2) - Install

  45. Battery Retainer Bolt (1) - Install and tighten - Fastener Specifications

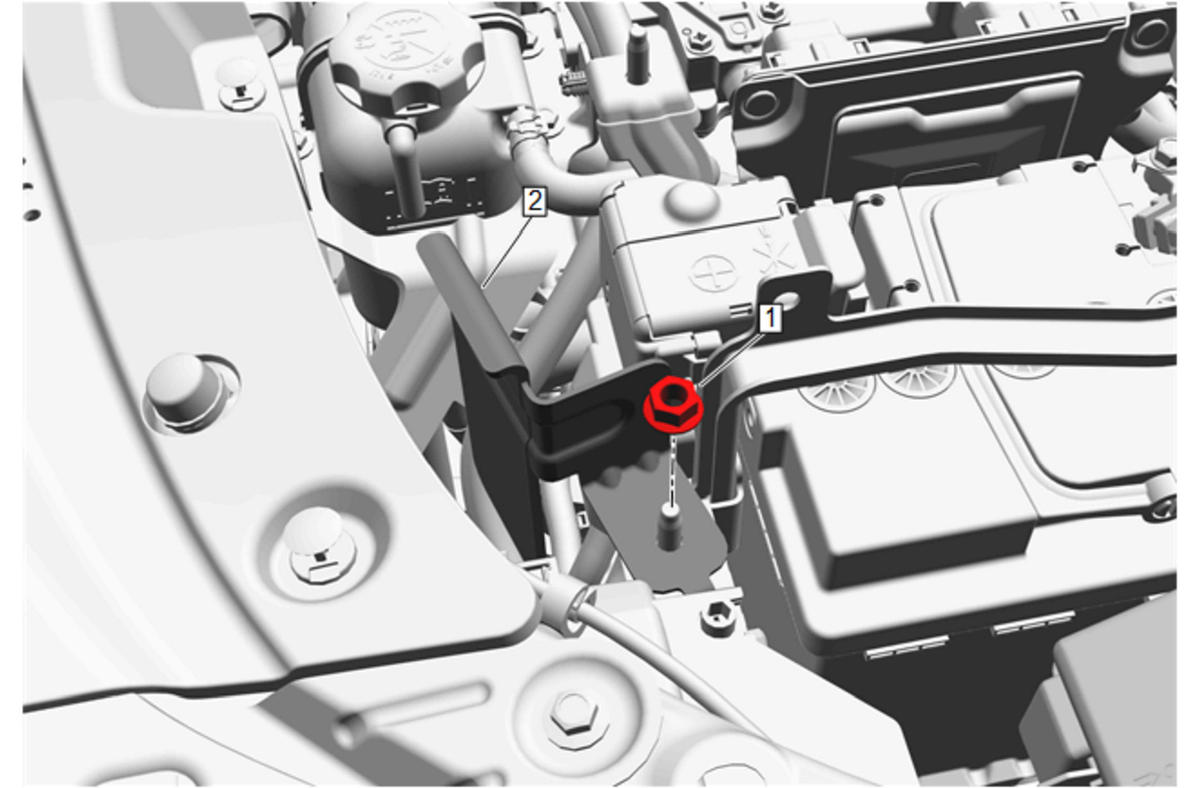

  46. GM5512499Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Support (2) - Install

  47. Battery Tray Support Nut (1) - Install and tighten - Fastener Specifications
  48. GM5512518Courtesy of GENERAL MOTORS COMPANY

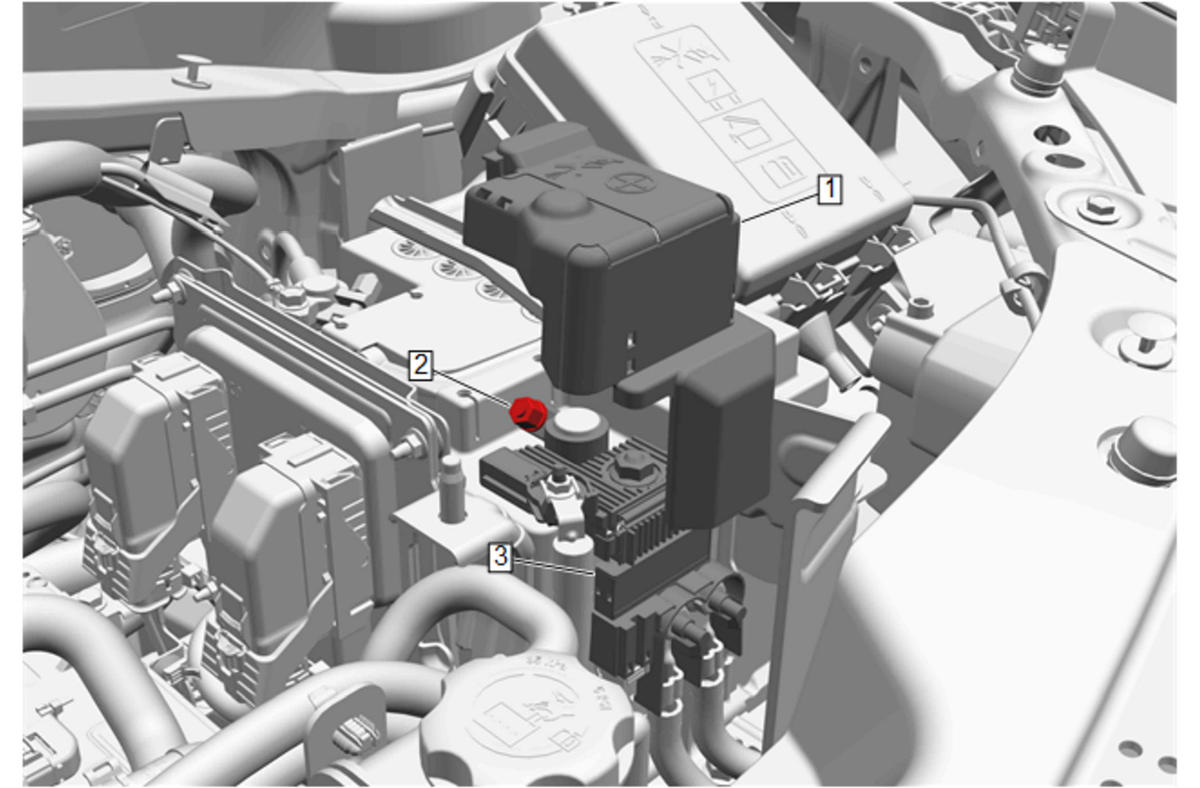

    Battery Positive Cable (3) @ Battery Positive Post - Install

  49. Battery Positive Cable Clamp Fastener (2) - Install and tighten - Fastener Specifications
  50. Battery Positive Cable Terminal Cover (1) - Install

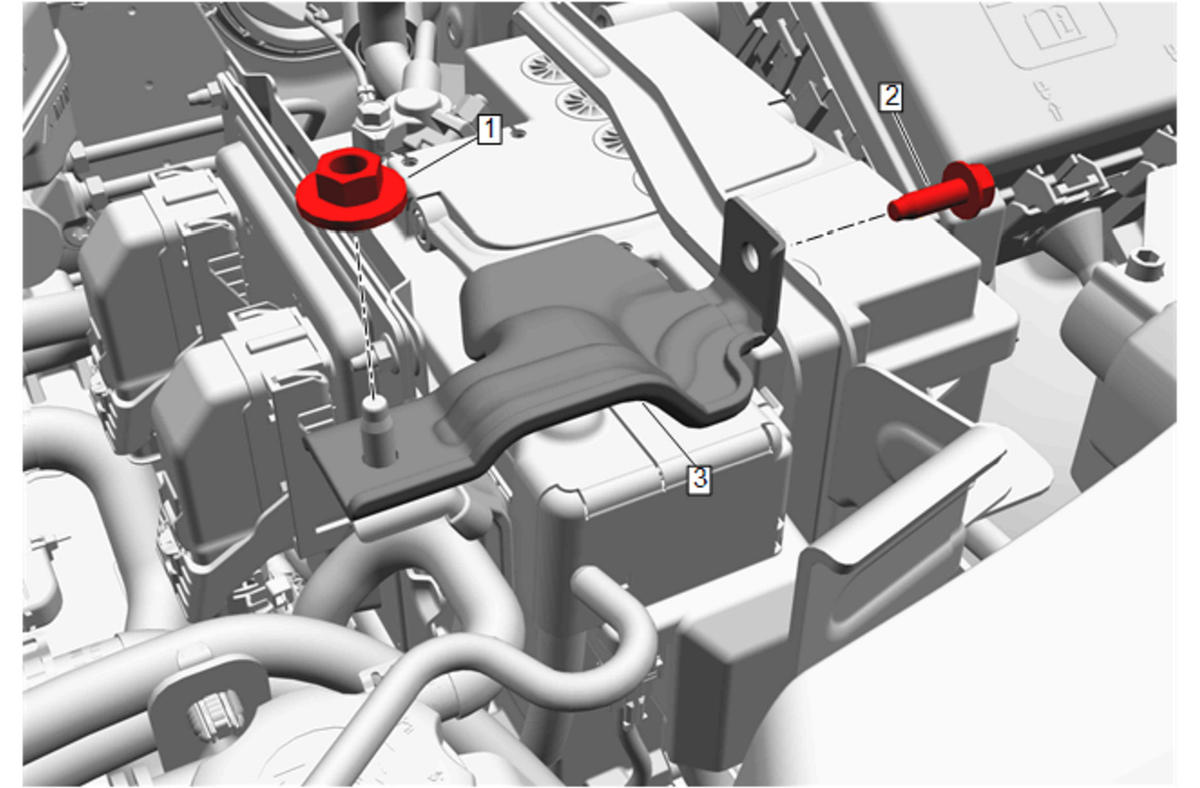

  51. GM5512497Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Reinforcement (3) - Install

  52. Battery Tray Reinforcement Bolt (2) - Install and tighten - Fastener Specifications
  53. Battery Tray Reinforcement Nut (1) - Install and tighten - Fastener Specifications

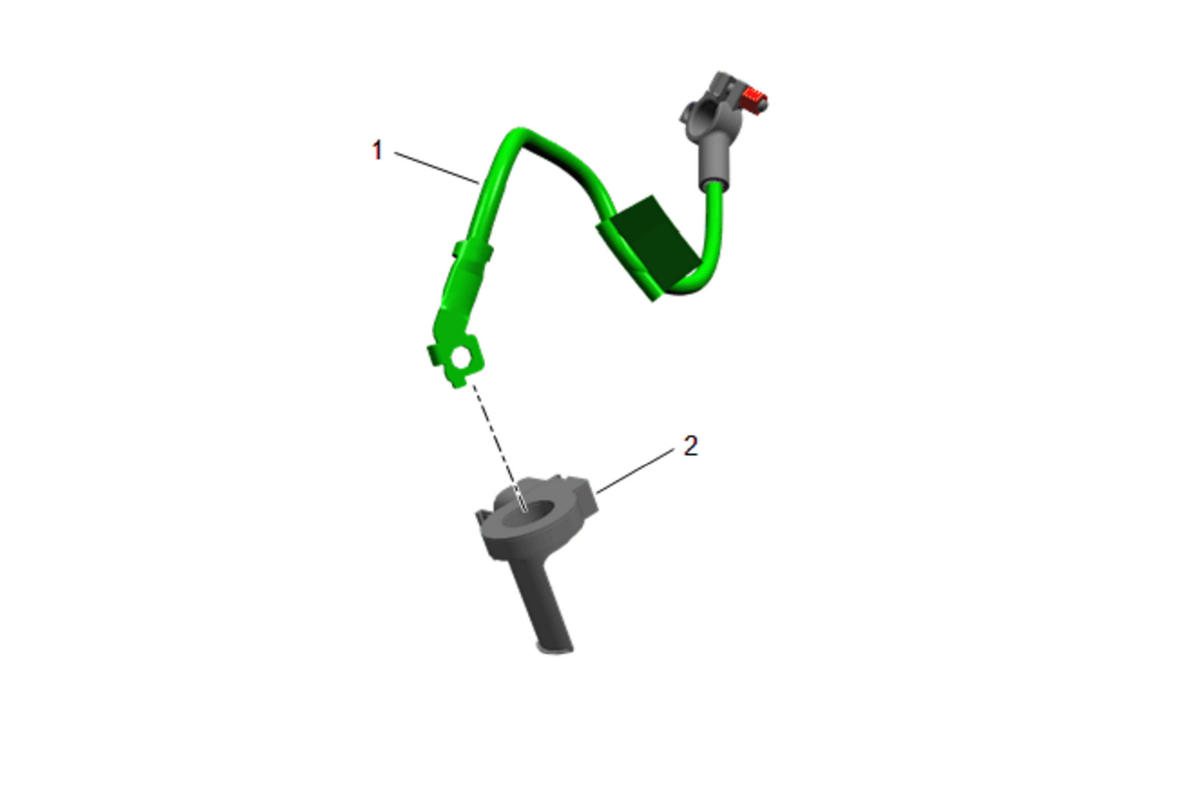

  54. GM5512496Courtesy of GENERAL MOTORS COMPANY

    Battery Current Sensor (2) @ Battery Negative Cable (1) - Install

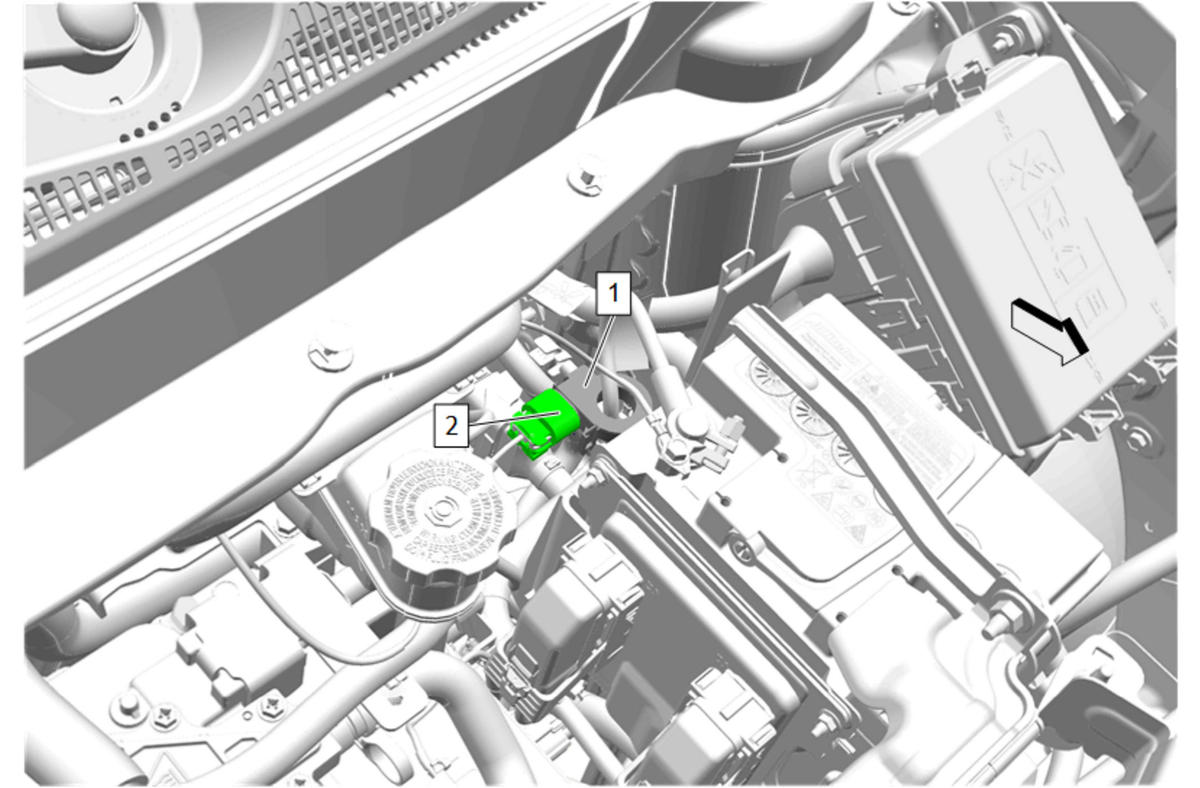

  55. GM5845282Courtesy of GENERAL MOTORS COMPANY

    Battery Current Sensor (1) @ Battery Tray - Install

  56. Battery Current Sensor Connector (2) - Connect

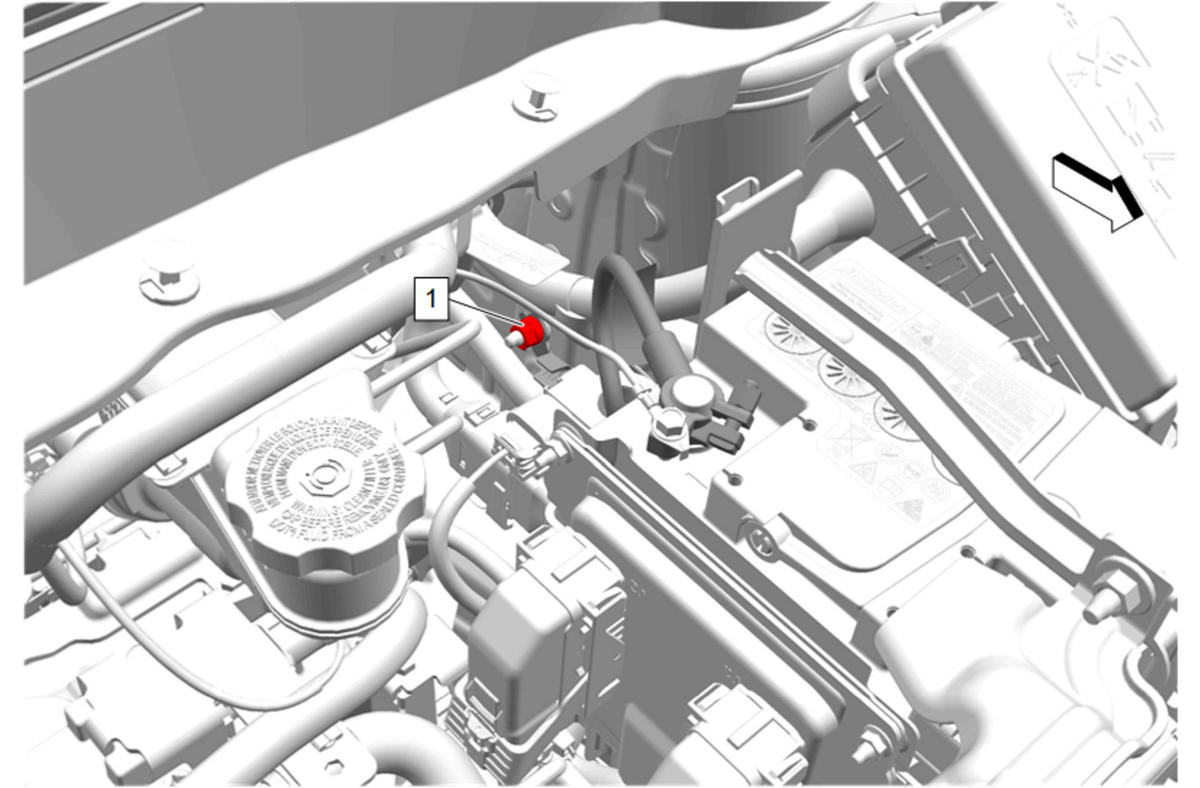

  57. GM5845281Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Nut (1) - Install and tighten - Fastener Specifications

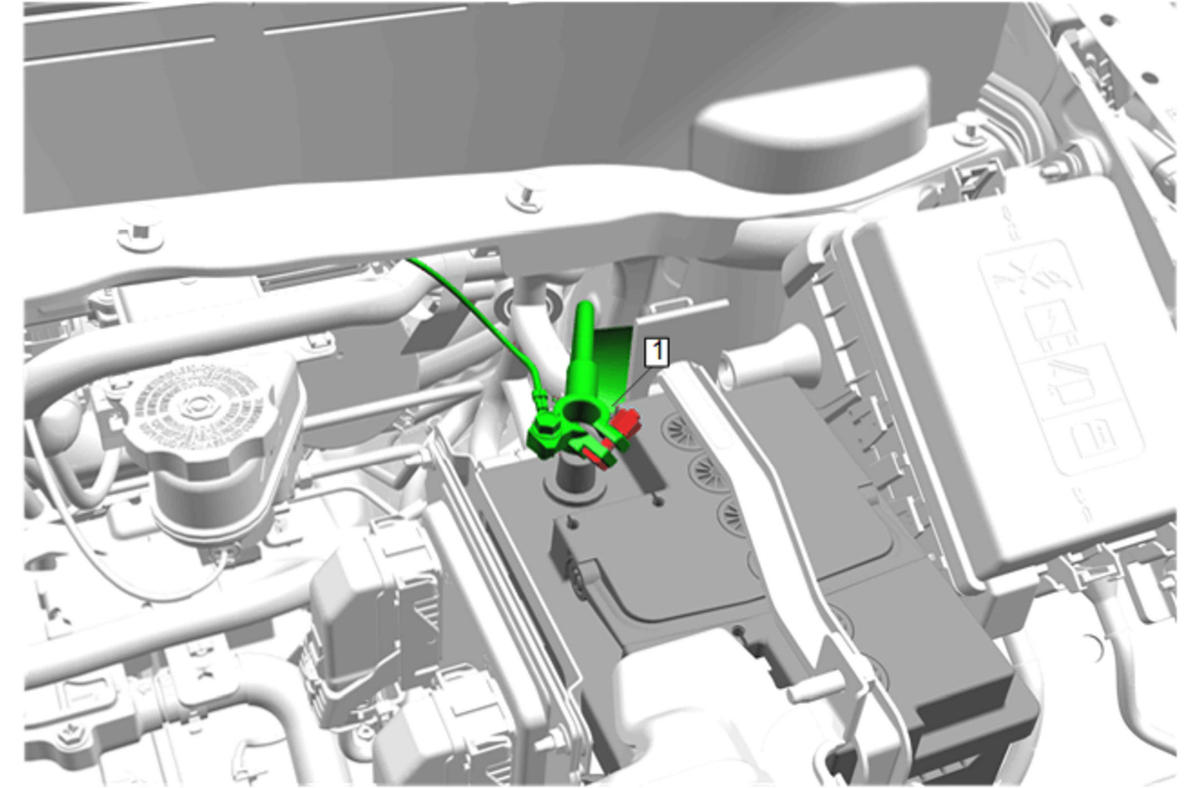

  58. GM5668319Courtesy of GENERAL MOTORS COMPANY

    Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .

  59. Fill the drive motor generator power inverter module cooling system. Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  60. Enable the high voltage system. High Voltage Enabling
  61. Program the drive motor battery charger. Control Module References
