Installation Procedure

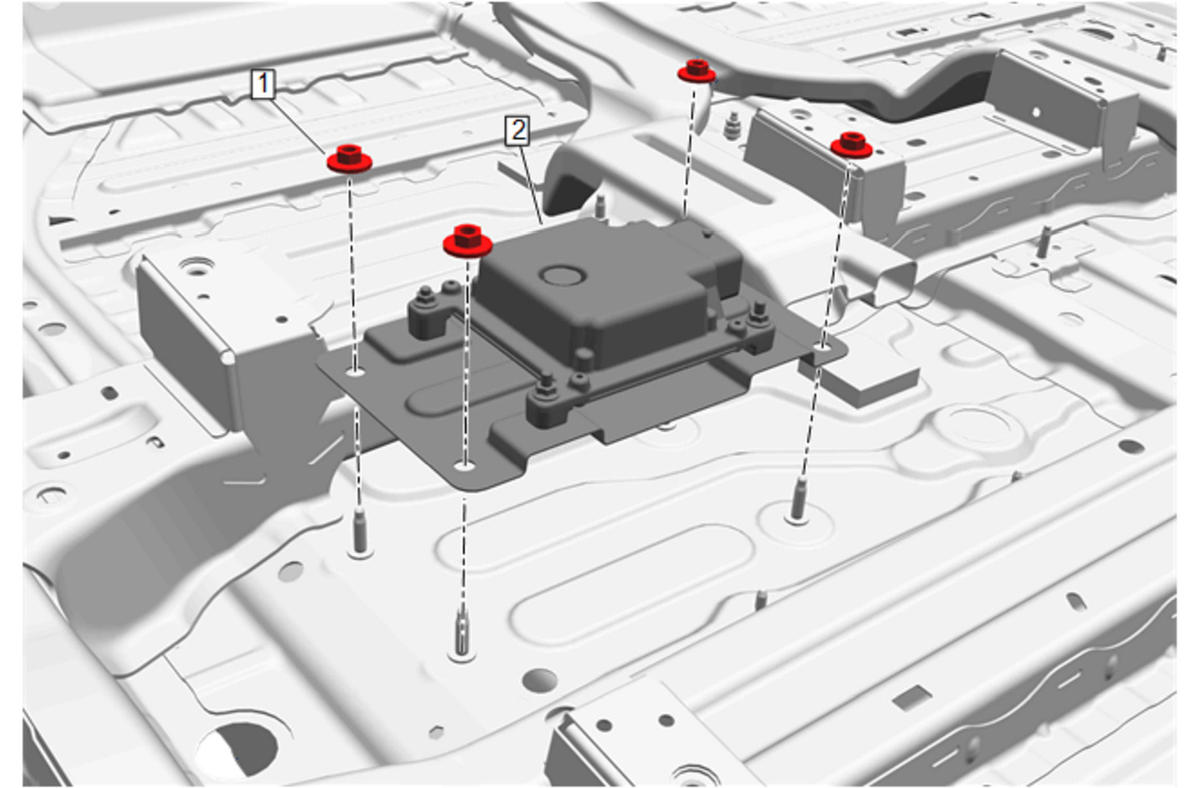

  1. GM5519003Courtesy of GENERAL MOTORS COMPANY

    Power Line Communication Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Power Line Communication Module Nut (1) - Install and tighten [4x] - Fastener Specifications
  3. Connect the electrical connector.

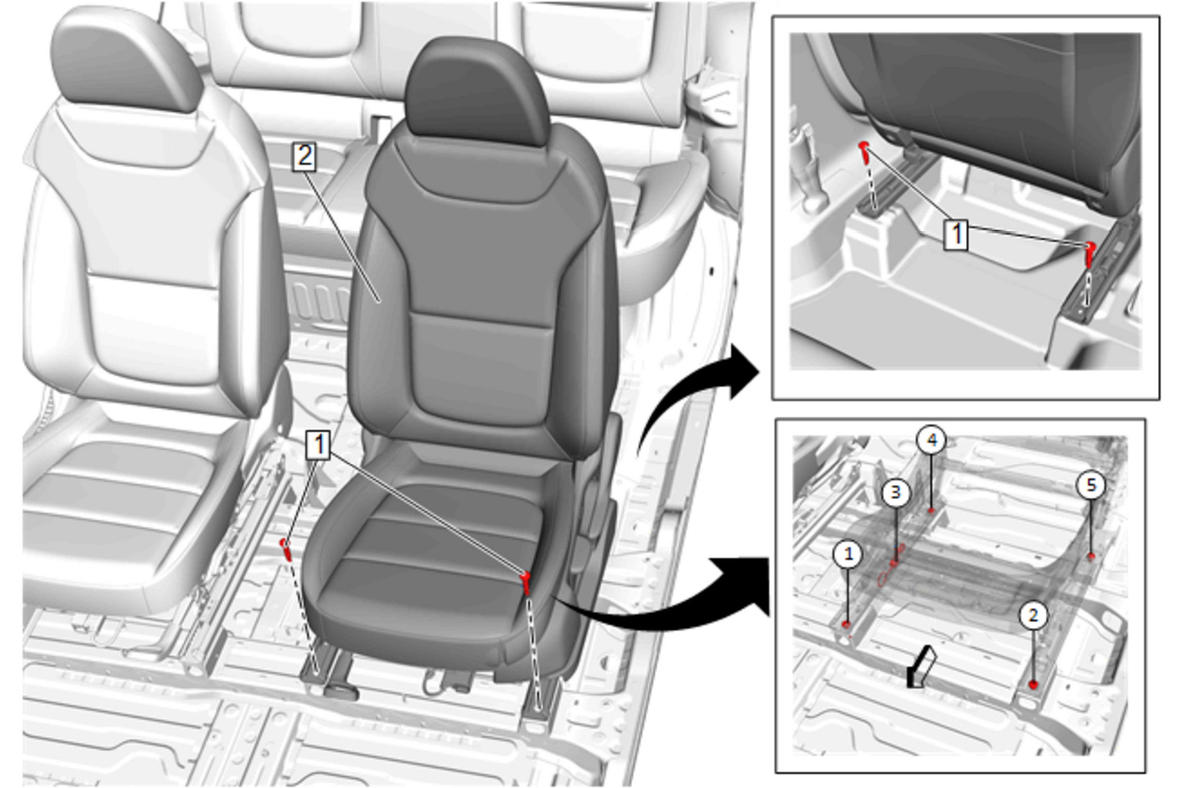

  4. GM5480353Courtesy of GENERAL MOTORS COMPANY

    Driver Seat (2) - Install - Front Seat Removal and Installation

  5. Perform the necessary programming and setup procedure: K190 Power Line Communication Module: Programming and Setup
