Wireless Charging System Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

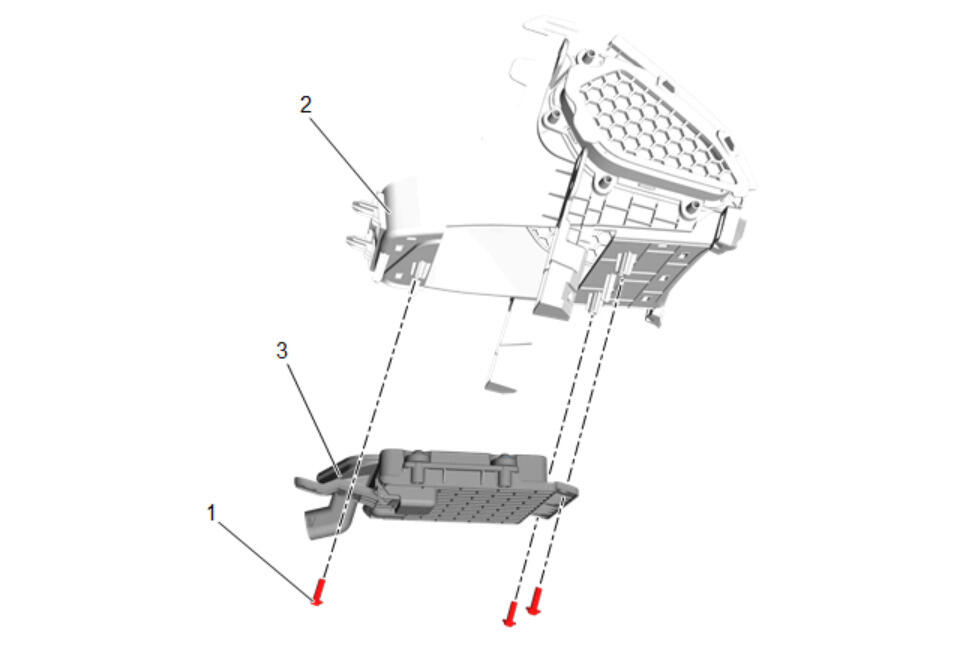

Callout	Component Name
Preliminary Procedure  Front Floor Console Stowage Tray Replacement
1	Wireless Charging System Module Bracket Bolt [3x] CAUTION: Fastener Caution Tighten  0.8 N.m (7 lb in)
2	Front Floor Console Stowage Tray
3	Wireless Charging System Module Bracket Procedure  Transfer components as necessary.
