Installation Procedure

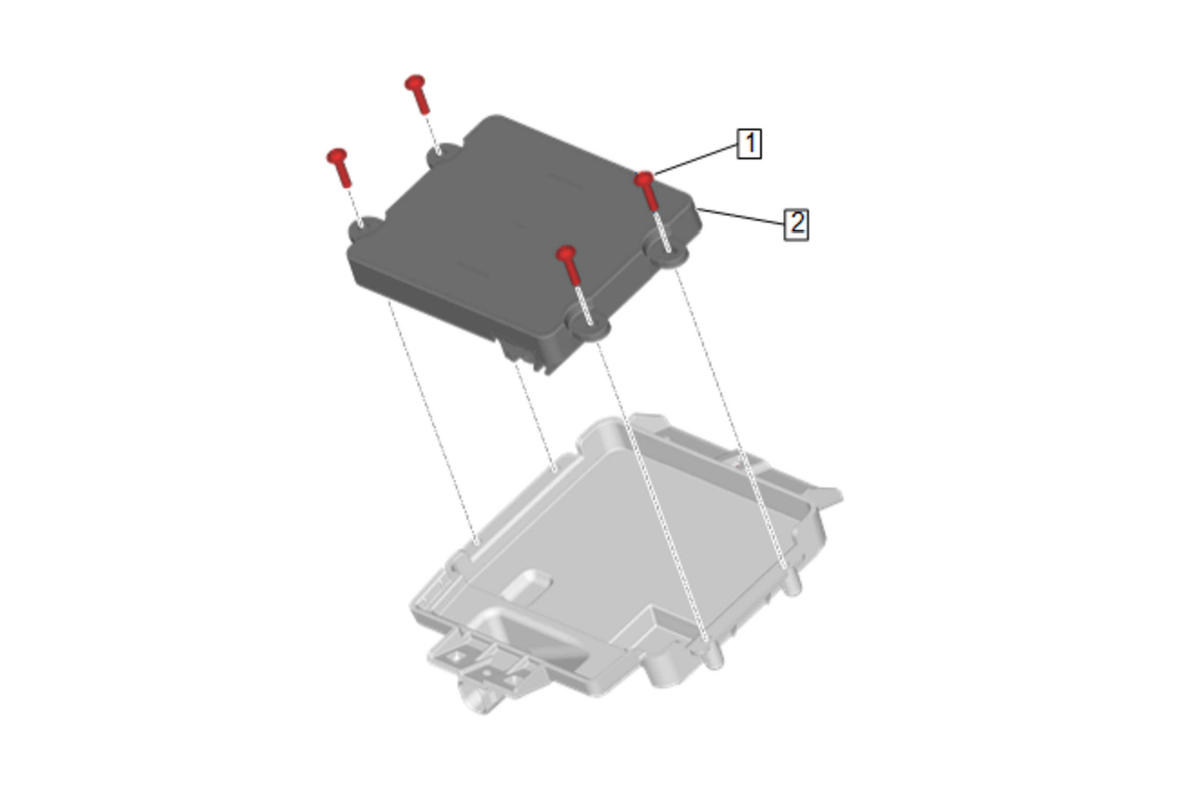

  1. GM5680365Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Wireless Charging System Module Bolt (1) - Install and tighten [4x] 1 N.m (9 lb in)

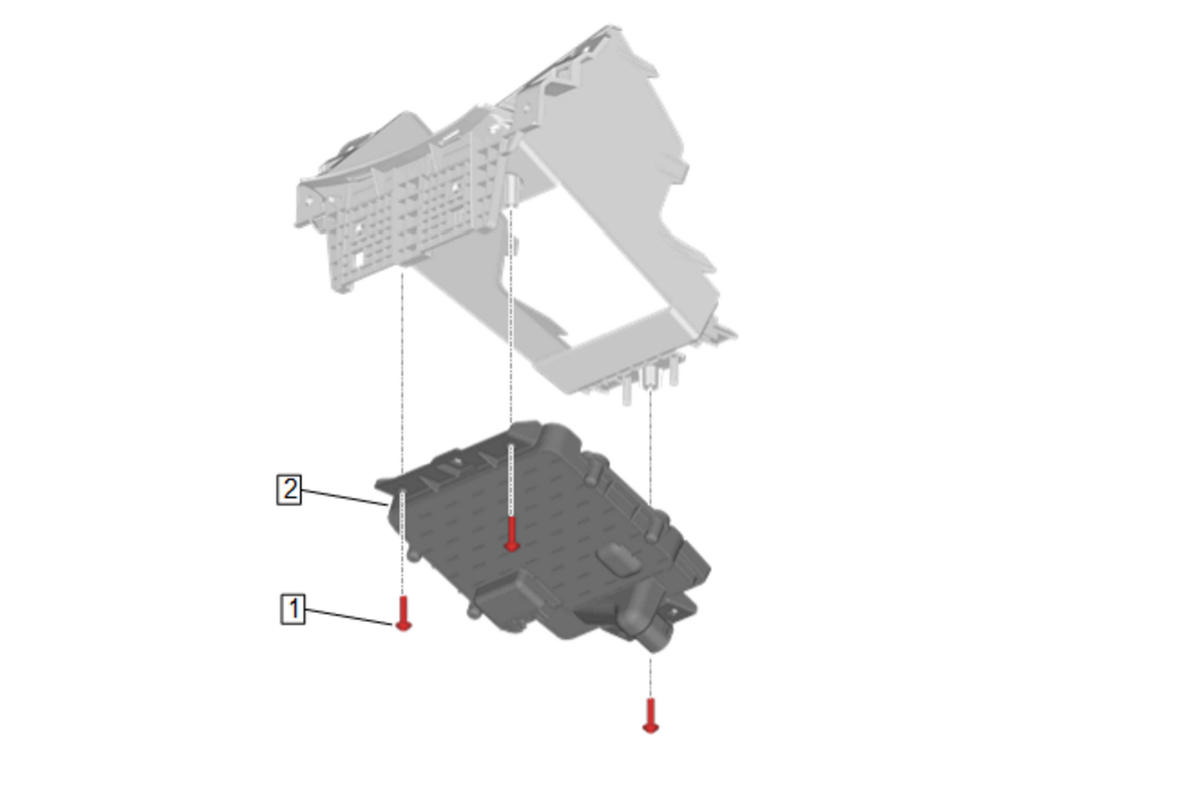

  3. GM5680360Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket (2) - Install

  4. Wireless Charging System Module Bracket Bolt (1) - Install and tighten [3x] 1 N.m (9 lb in)

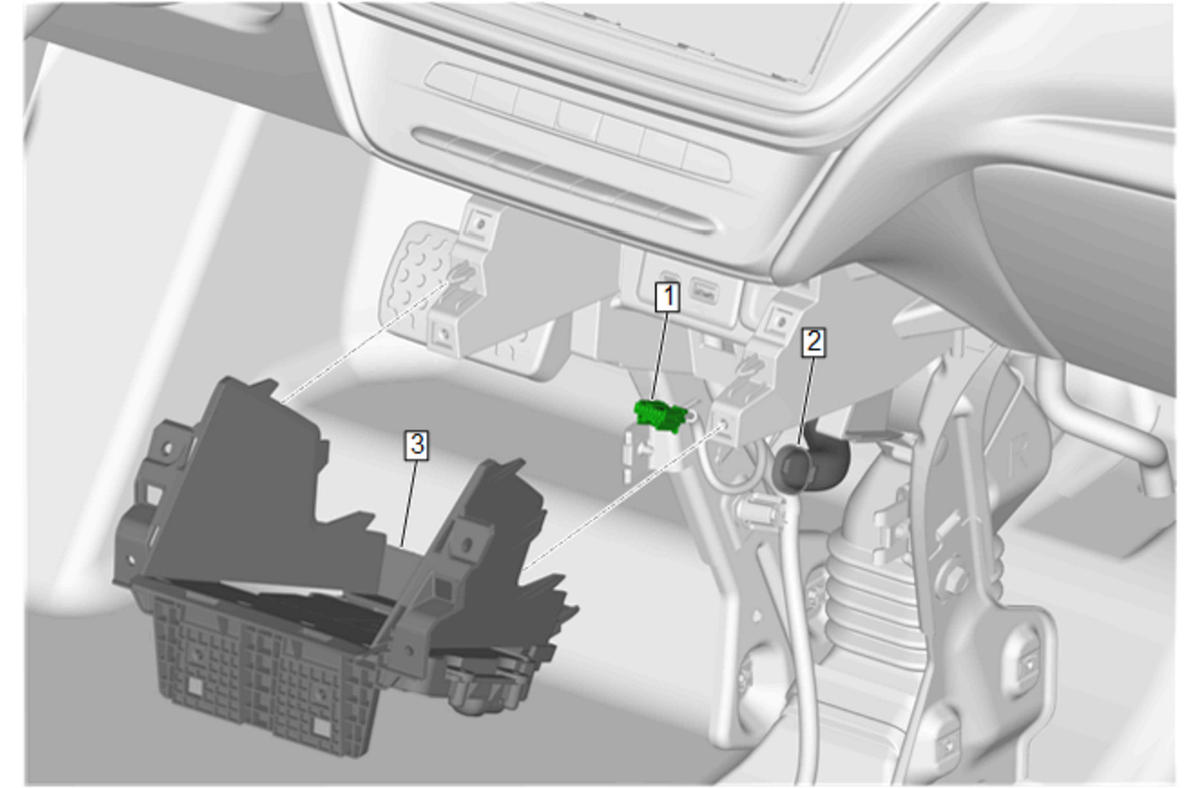

  5. GM5682365Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Stowage Tray (3) - Install - Instrument Panel Stowage Tray Replacement
