Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

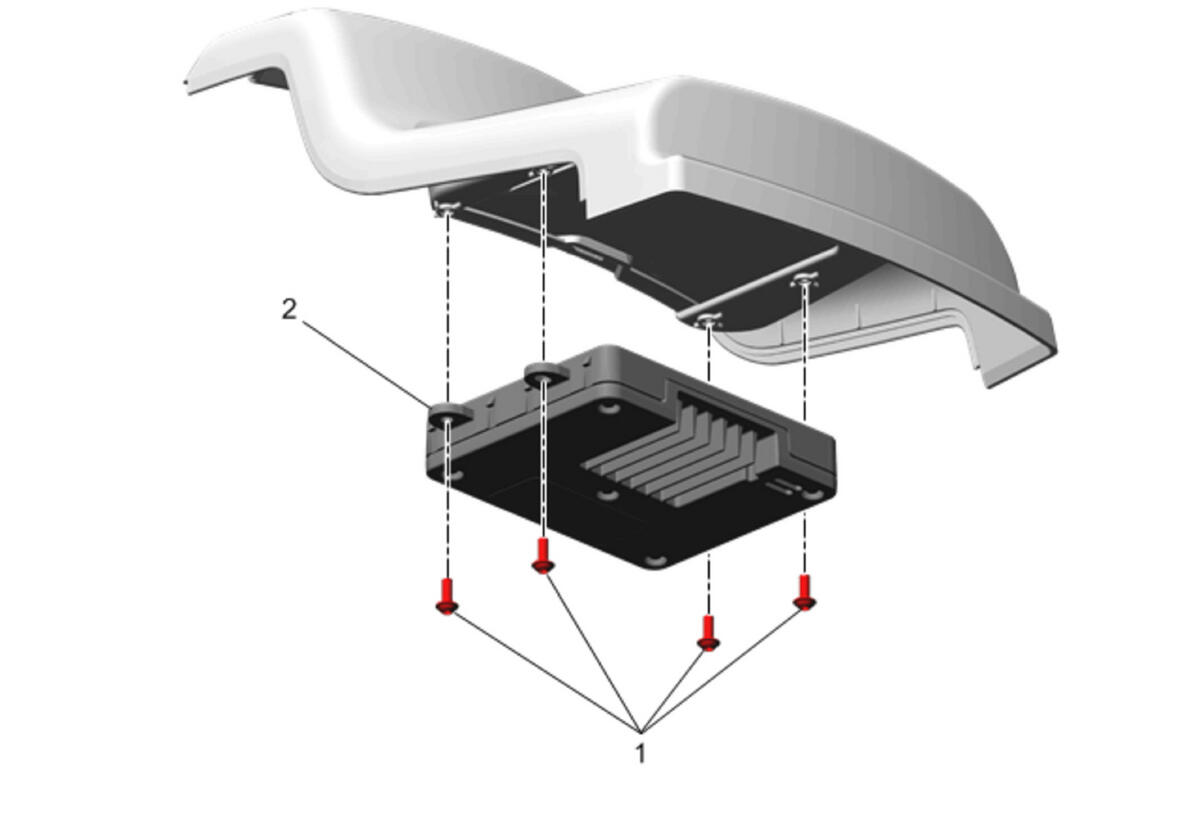

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Rear Trim Panel-Endcap - Remove - Front Floor Console Rear Trim Panel Replacement (Endcap)
1	Front Floor Rear Trim Plate Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Wireless Charging System Module
