Fuel Level Sensor Replacement
NOTE:

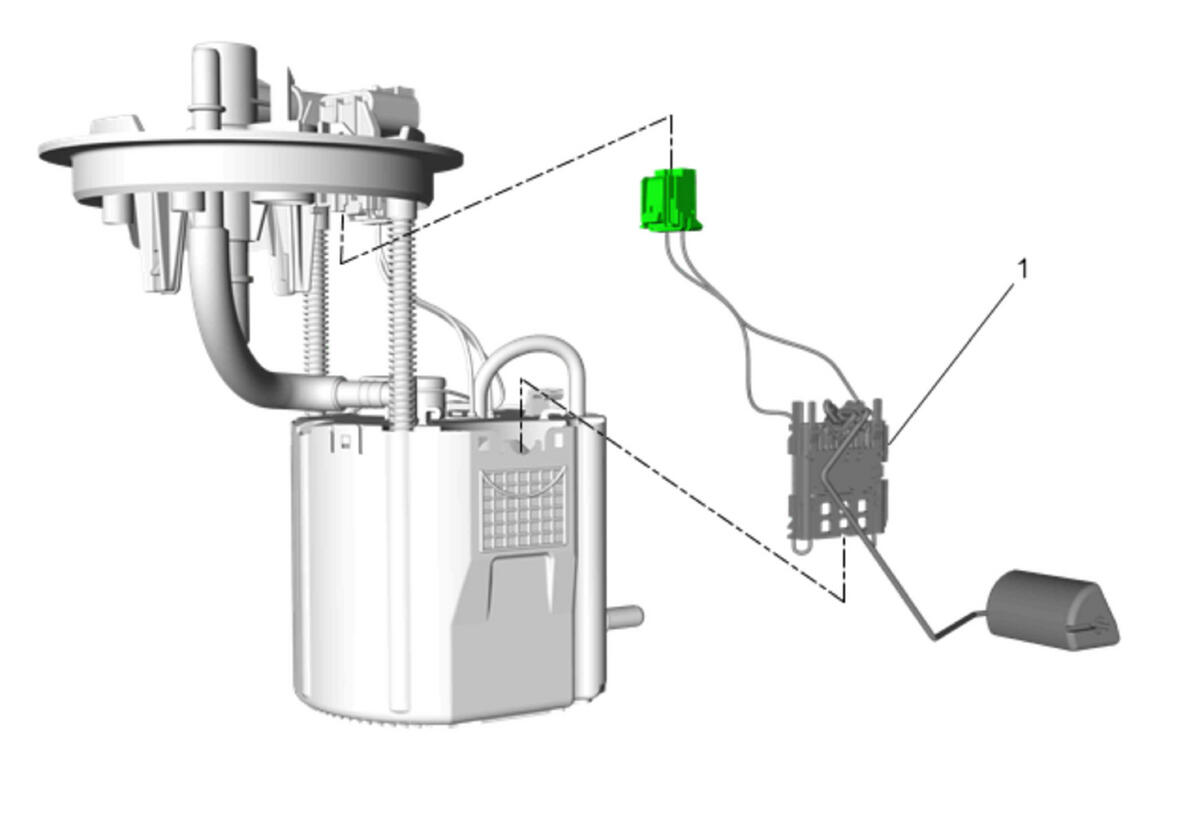

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Fuel Pump Module Replacement .Refer to Safety Glasses Warning . |
|
| 1 | Fuel Level Sensor Procedure Release the fuel level sensor tabs and disconnect the electrical connector. |
