Installation Procedure

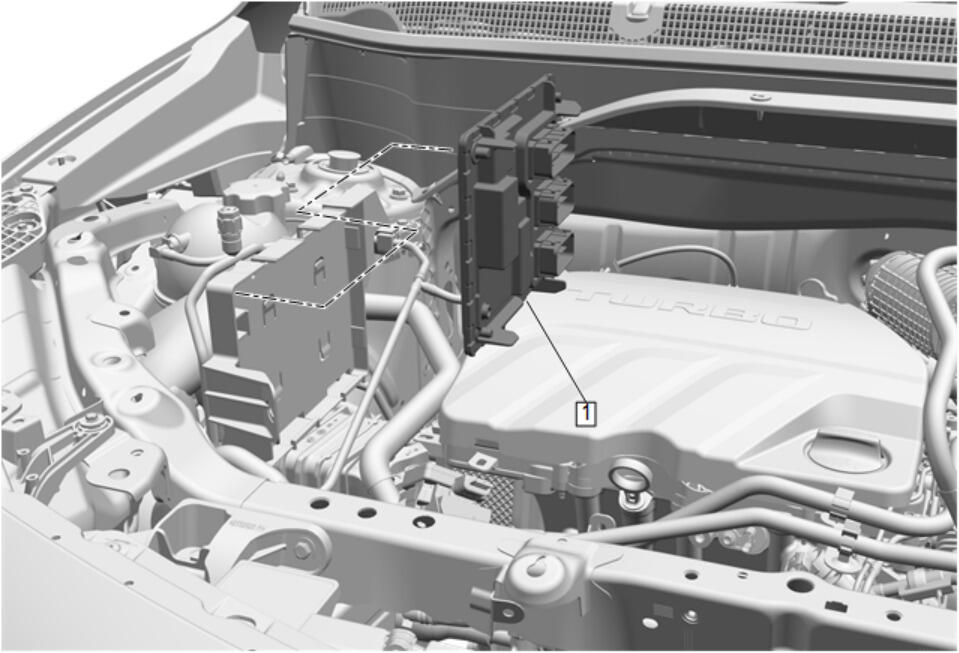

  1. GM5390616Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Install

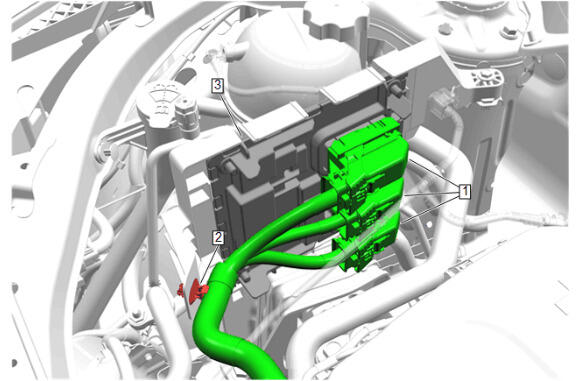

  2. GM6160464Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Install

  3. Connect the electrical connectors. (1)
  4. Use the scan tool to reset the engine oil life remaining back to the original percentage recorded.
  5. If replacing the engine control module, it is necessary to reprogram the replacement module. Control Module References
