Fastener Specifications

GM5961792Courtesy of GENERAL MOTORS COMPANY

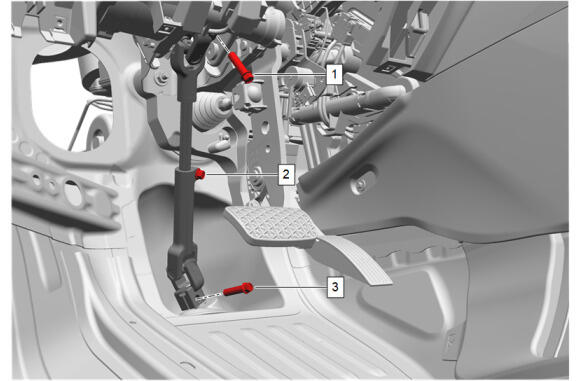

Intermediate Steering Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intermediate Steering Shaft Upper Bolt - - 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement
2 Intermediate Steering Shaft Middle Bolt - - 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement
3 Intermediate Steering Shaft Lower Bolt - - 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement
GM5961795Courtesy of GENERAL MOTORS COMPANY

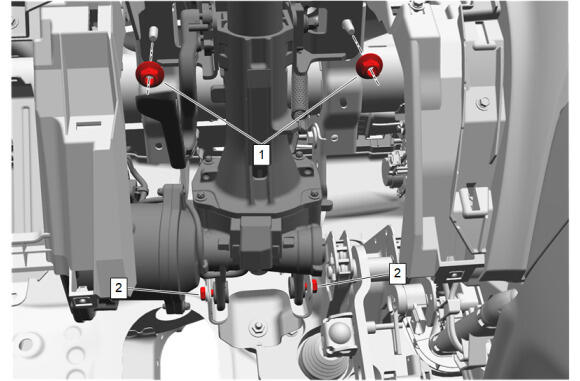

Steering Column

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [2x] - - 22 N.m (16 lb ft) Steering Column Removal and Installation
2 Steering Column Lower Support Bracket Bolt [2x] - - 22 N.m (16 lb ft) Steering Column Removal and Installation
GM5961798Courtesy of GENERAL MOTORS COMPANY

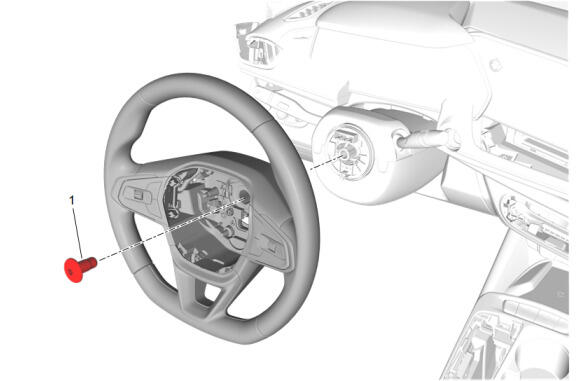

Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement
GM5961797Courtesy of GENERAL MOTORS COMPANY

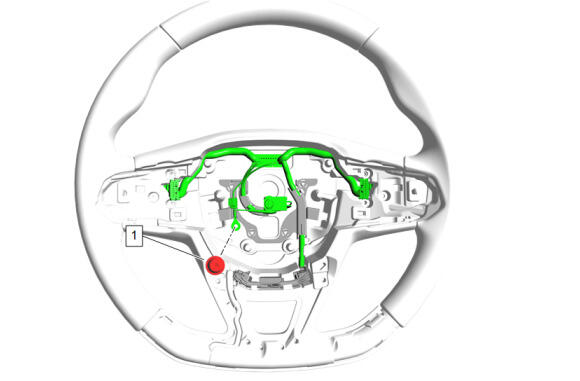

Steering Wheel Pad Accessory Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Pad Accessory Wiring Harness Screw - - 3.5 N.m (31 lb in) Steering Wheel Pad Accessory Wiring Harness Replacement
GM5961794Courtesy of GENERAL MOTORS COMPANY

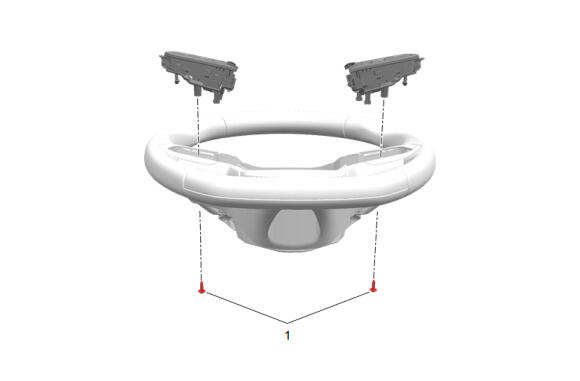

Steering Wheel Pad Accessory Wiring Harness Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Radio Bracket [2x] - - 1.8 N.m (16 lb in) Steering Wheel Pad Accessory Wiring Harness Replacement
GM5961799Courtesy of GENERAL MOTORS COMPANY

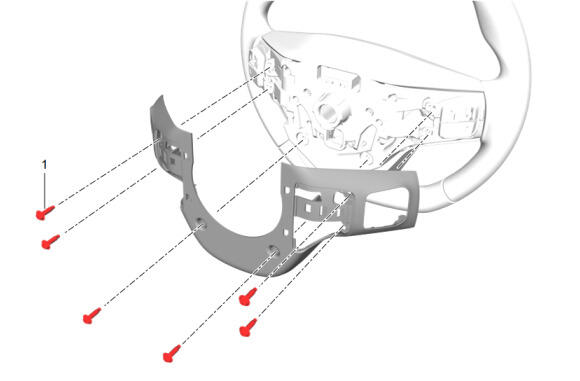

Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Shroud Bolt [6x] - - 3.5 N.m (31 lb in) Steering Wheel Shroud Replacement
GM5961800Courtesy of GENERAL MOTORS COMPANY

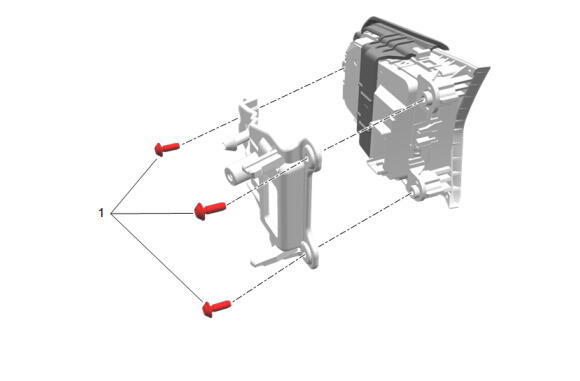

Steering Wheel Spoke Cover - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Cruise Control Switch [3x] - - 0.8 N.m (7 lb in) Steering Wheel Spoke Cover Replacement - Left Side
GM5961801Courtesy of GENERAL MOTORS COMPANY

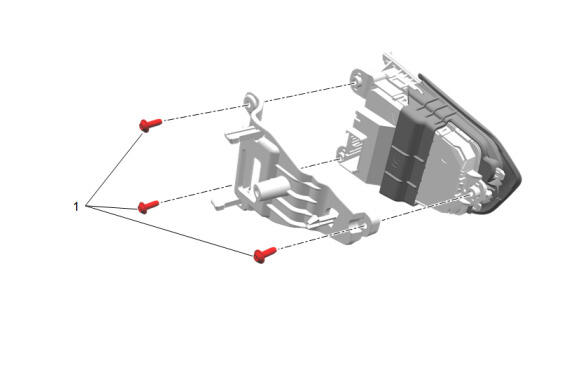

Steering Wheel Spoke Cover - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Radio Control Switch [3x] - - 0.8 N.m (7 lb in) Steering Wheel Spoke Cover Replacement - Right Side
