Fastener Specifications

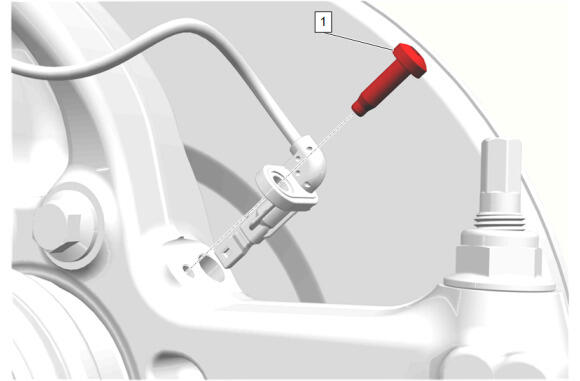

GM6160205Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side (- ZR2) , or Front Wheel Speed Sensor Replacement - Left Side (ZR2)
Front Wheel Speed Sensor Replacement - Right Side (- ZR2) , or Front Wheel Speed Sensor Replacement - Right Side (ZR2)

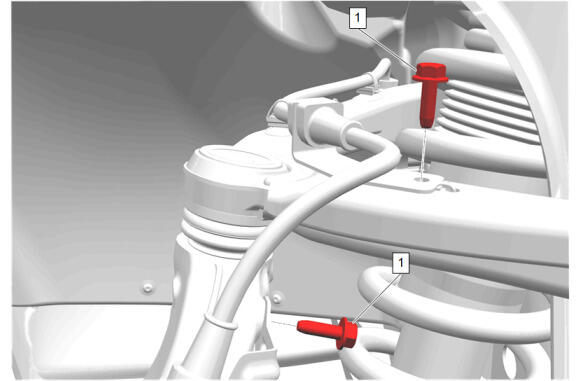

GM6160206Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side (- ZR2) , or Front Wheel Speed Sensor Replacement - Left Side (ZR2)

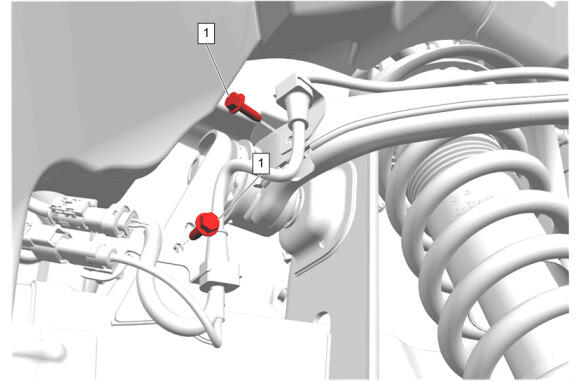

GM6160207Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side (- ZR2) , or Front Wheel Speed Sensor Replacement - Left Side (ZR2)

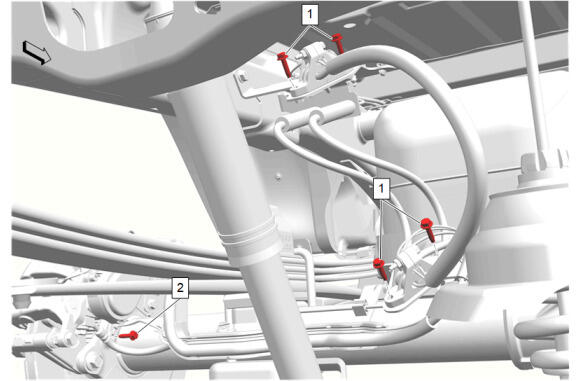

GM6261942Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Chassis Rear Wiring Harness Bracket Bolt [4x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side
Rear Wheel Speed Sensor Replacement - Right Side
2 Rear Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side
Rear Wheel Speed Sensor Replacement - Right Side

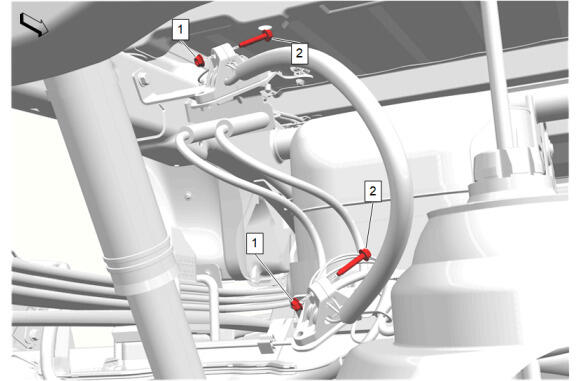

GM6261947Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Wiring Harness Bracket Nut [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side
Rear Wheel Speed Sensor Replacement - Right Side
2 Chassis Rear Wiring Harness Bracket Bolt - - - Rear Wheel Speed Sensor Replacement - Left Side
Rear Wheel Speed Sensor Replacement - Right Side
