Fastener Specifications

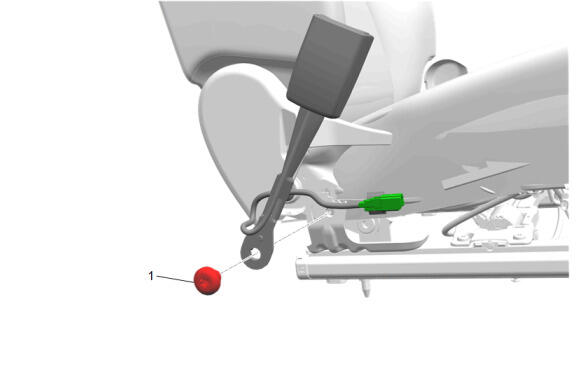

GM6199906Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Front Seat Belt Buckle Replacement

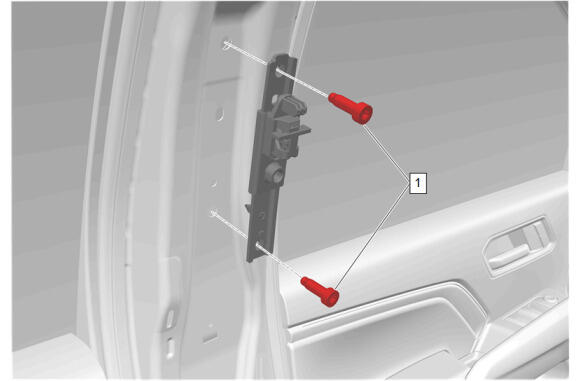

GM6203046Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Guide Adjuster

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Adjuster Bolt [2x] - - 45 N.m (33 lb ft) Front Seat Belt Guide Adjuster Replacement

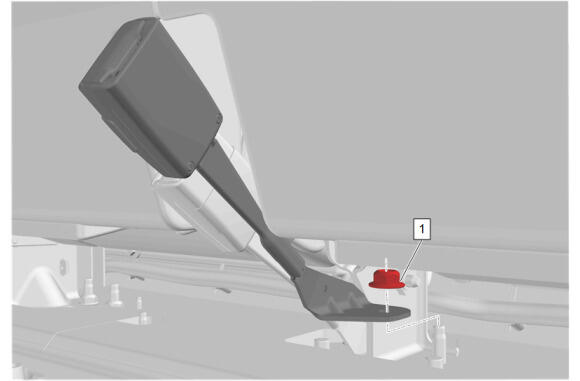

GM6199908Courtesy of GENERAL MOTORS COMPANY
Rear Center Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Center Belt Nut - - 45 N.m (33 lb ft) Rear Center Seat Belt Buckle Replacement

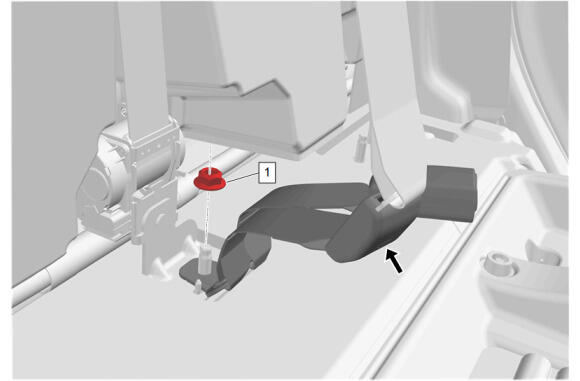

GM6199914Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Buckle Nut - - 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement
Rear Seat Center Belt Retractor Replacement

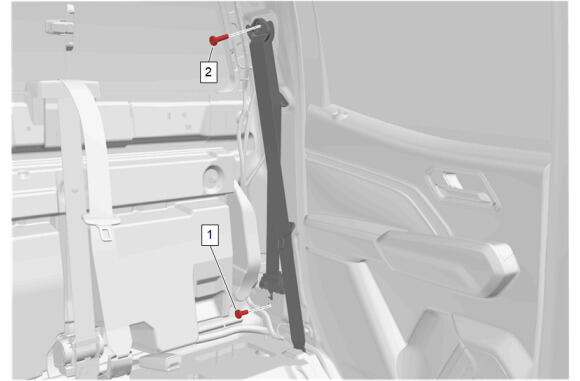

GM6199904Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Retractor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
2 Rear Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
GM6143320Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Retractor Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
