Fastener Specifications

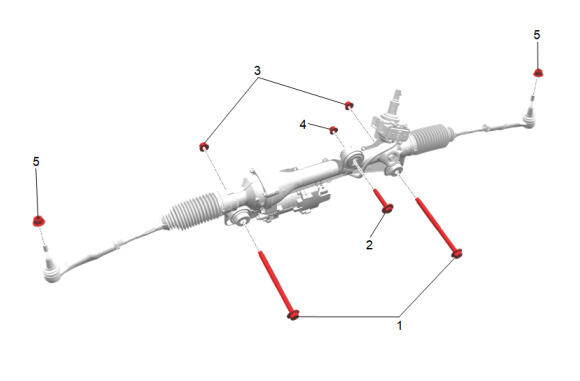

GM6236137Courtesy of GENERAL MOTORS COMPANY
Electric Belt Drive Rack and Pinion Steering Gear

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Gear Bolt [2x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 90 - 105 degrees		 Electric Belt Drive Rack and Pinion Steering Gear Replacement (- ZR2) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (ZR2)
2 Steering Gear Bolt - - - Electric Belt Drive Rack and Pinion Steering Gear Replacement (- ZR2) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (ZR2)
3 Steering Gear Nut [2x] - - - Electric Belt Drive Rack and Pinion Steering Gear Replacement (- ZR2) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (ZR2)
4 Steering Gear Nut - - 100 N.m (74 lb ft) Electric Belt Drive Rack and Pinion Steering Gear Replacement (- ZR2) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (ZR2)
5 Steering Linkage Outer Tie Rod Nut - - First Pass: 35 N.m (26 lb ft)
Final Pass: 90 - 105 degrees		 Steering Linkage Outer Tie Rod Replacement

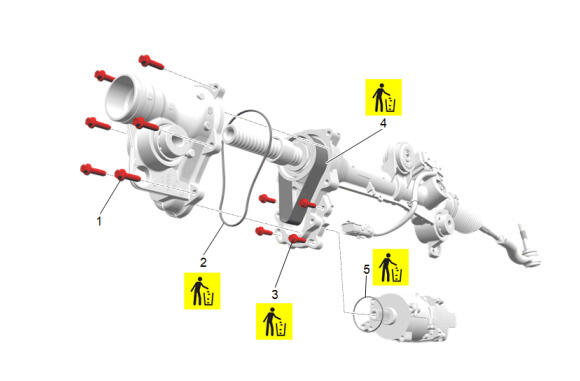

GM6252114Courtesy of GENERAL MOTORS COMPANY
Power Steering Assist Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Steering Assist Housing Bolt [6x] - - 28 N.m (21 lb ft) Power Steering Assist Motor Replacement (RWL) , or Power Steering Assist Motor Replacement (F46)
2 Power Steering Assist Motor Seal Yes - - Power Steering Assist Motor Replacement (RWL) , or Power Steering Assist Motor Replacement (F46)
3 Power Steering Assist Motor Bolt [4x] Yes - 28 N.m (21 lb ft) Power Steering Assist Motor Replacement (RWL) , or Power Steering Assist Motor Replacement (F46)
4 Electric Belt Drive Rack and Pinion Steering Gear Belt Yes - - Power Steering Assist Motor Replacement (RWL) , or Power Steering Assist Motor Replacement (F46)
5 Power Steering Assist Motor Seal Yes - - Power Steering Assist Motor Replacement (RWL) , or Power Steering Assist Motor Replacement (F46)

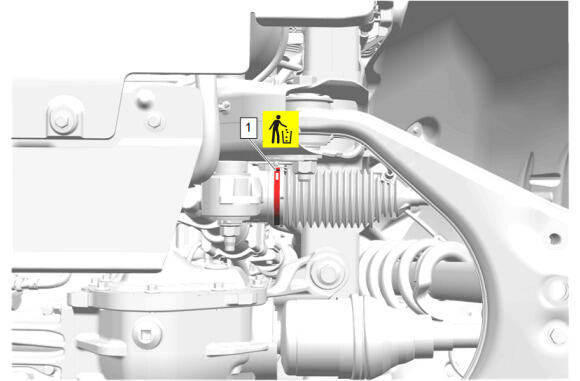

GM6204510Courtesy of GENERAL MOTORS COMPANY
Steering Gear Boot

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Gear Boot Inner Clamp Yes - - Steering Gear Boot Replacement

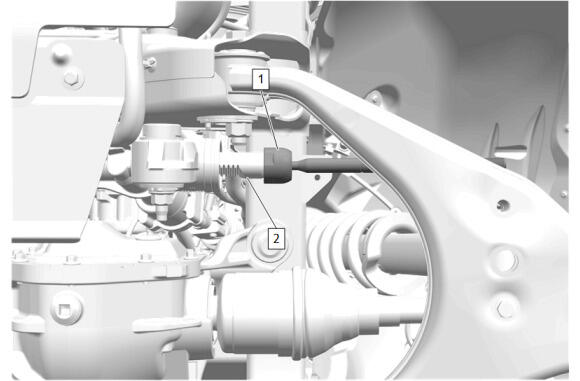

GM6204561Courtesy of GENERAL MOTORS COMPANY
Steering Linkage Inner Tie Rod

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Linkage Inner Tie Rod - - 120 N.m (89 lb ft) Steering Linkage Inner Tie Rod Replacement
