Removal Procedure

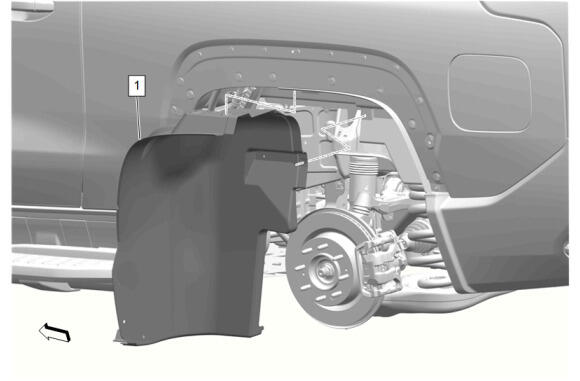

  1. GM6304977Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Panel Front Liner (1) - Remove - Rear Wheelhouse Panel Front Liner Replacement

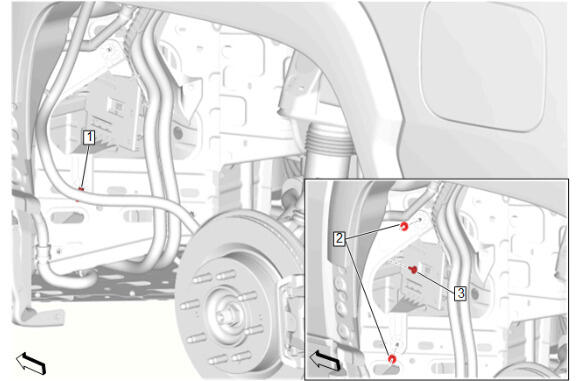

  2. GM6654312Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors and release the wiring harness retainers as necessary.

  3. Retainer (1) - Remove
  4. Power Line Communication Module Bracket Nut (2) - Remove [2x]
  5. Power Line Communication Module Bracket Bolt (3) - Remove

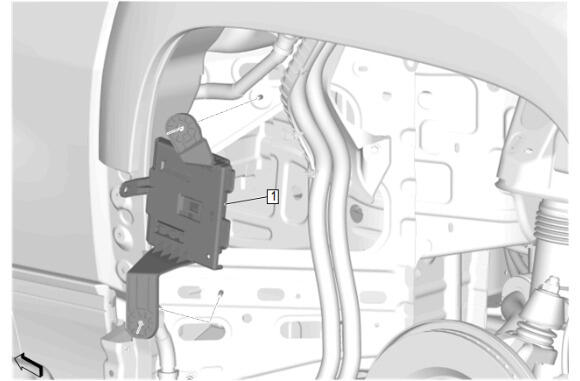

  6. GM6654313Courtesy of GENERAL MOTORS COMPANY

    Power Line Communication Module Bracket (1) - Remove

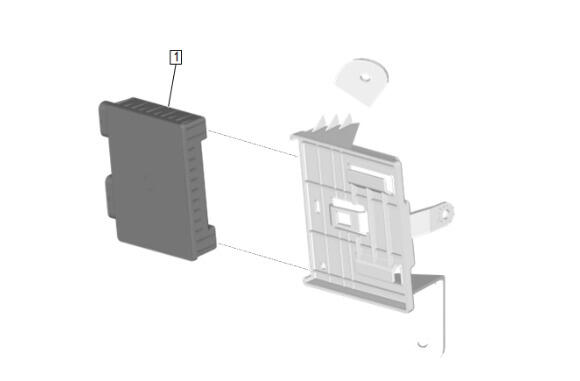

  7. GM6654314Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tab.

  8. Off-Board Charger Control Module (1) - Remove
